Carbonated Drink Filling Machine
You are here: Home » Filling Machine » Carbonated Drink Filling Machine » Carbonated Drink Filling Machine

Product Detail

Share to:

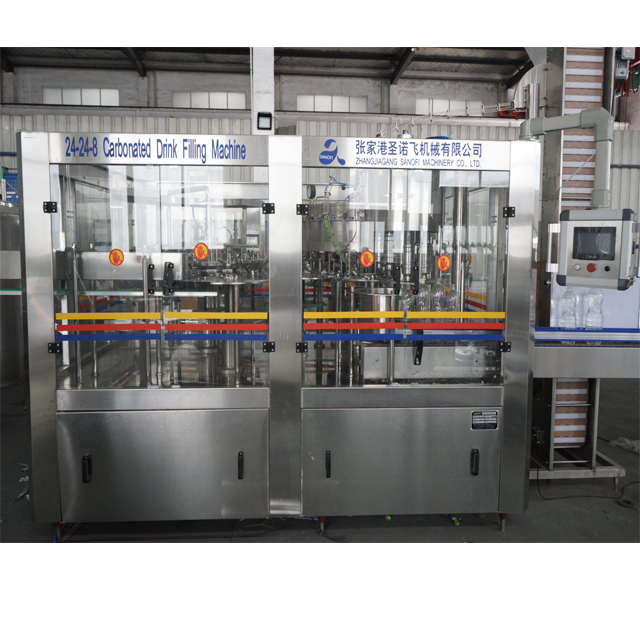

Carbonated Drink Filling Machine

The machine is used for the carbonated drink plant. it can wash, fill and cap the bottles. The filling nozzles are specially designed for the carbonated drink, cola, soft drink filling. The machine speed is from 1000 to 24000BPH based on customer requirement.
Availability:
Quantity:
  • DCGF
  • SANOFI

Application: carbonated drinks, CSD, cola, soda water, energy drinks, kvass, beer, etc.

Containers applied for: PET bottle of all volumes and shapes

Filling system: isobaric filling

Production capacity: 1,000BPH–18,000BPH (500ml)

Technical features of carbonated filling machine

·The air conveyor is directly connected with bottle-in starwheel. The bottle is transferred by neck holding.
·High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.
·By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
·Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
·The high speed line is of ring type pressure bearing hydraulic cylinder.
·High speed and large flow filling valve assures the high filling speed and exact fluid level.
·Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
·The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.

Equipment structureof carbonated filling machine

·Rack
·Rotary rinser
·Rotary carbonated filler
·Rotary capper
·Bottle infeed and outfeed system
·Control




Model

DCG12-12-6

DCGF 18-18-6

DCGF 24-24-8

DCGF 32-32-10

DCGF 40-40-12

DCGF 50-50-15

CCGFD60-60-15

CCGFD80-80-20

Filler/Capper   heads

12-12-6

18-18-6

24-24-8

32-32-10

40-40-12

50-50-15

60-60-15

80-80-20

Bottle   diameter(mm)

Diameter=50-100   H=170 330-1500ml

Diameter=   50-110 H= 160-340

Production   capacity (b/h) 350ml

2000-4000

4000-6000

8000-10000

10000-12500

12500-15000

16000-20000

20000-24000

26000-32000

Filling   temperature(Celsius)

0-5

Filler   type

Balanced   pressure filler

Spraying   pressure

0.2-0.25

0.2-0.25

Filling   pressure

0.15-0.35

0.15-0.35

0.15-0.35

0.2-0.4

0.2-0.4

0.2-0.4

0.2-0.4

0.2-0.4

Motor   power

2.2+0.55+0.12

2.2+0.55+0.18

3+0.55+0.18

5.5+0.55+0.18

7.5

11

15

19

Overall   dimension(L*W*H)mm

2300*1600*2500

2600*1920*2550

3100*2200*2800

3850*3000*2850

4850*3800*2750

5750*3550*2750

6500*5500*2750

7680*6640*2650

Weight   (kg)

2800

3650

4800

6800

8650

10500

12800

15000



 CARBONATED DRINK-1

CARBONATED DRINK-3
