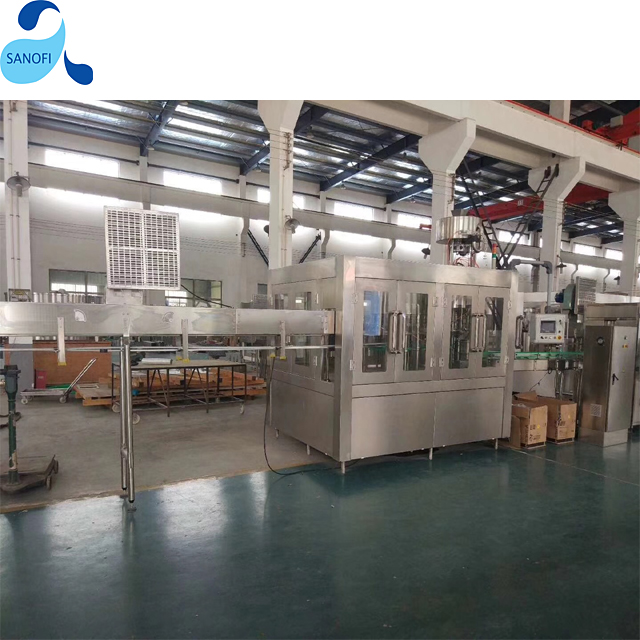

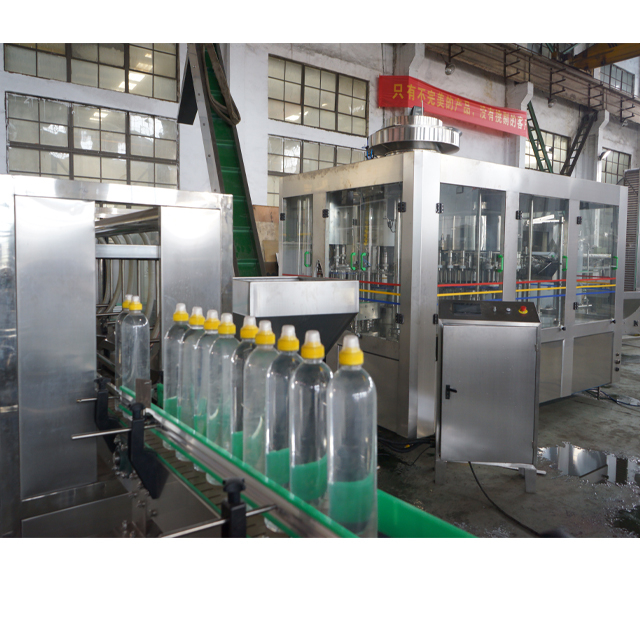

Water Filling Machine

Used for the bottle water production line. It can wash, filling and cap the bottles. The machine speed is from 1000 to 30000 bottles per hour.
Availability:
Quantity:
  • CGF
  • SANOFI

Application:  still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.


Suitable for:  PET bottles


Filling system:  gravity filling


Production capacity:  1,000BPH–30,000BPH (500ml)



Technical features of water filling machine



·It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.

·There is no need to adjust the height of equipment through neck holding tech for bottle transportation. And what is only to change some spare parts.

·High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.

·By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

·Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.

·High speed and large flow filling valve assures the high filling speed and exact fluid level.

·Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.

·The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.



Equipment structure of water filling machine



·Rack

·Rotary rinser

·Rotary filler

·Rotary capper

·Bottle infeed and outfeed system

·Control


Parameter

Model

CGF

8-8-3

CGF

16-12-6

CGF

18-18-6

CGF

24-24-8

CGF

32-32-10

CGF

40-40-12

CGF

50-50-15

Washing No.

8

16

18

24

32

40

50

Filling No.

8

12

18

24

32

40

50

Capping No

3

6

6

8

10

12

15

Production Capacity(500ml)

3000BPH

4000BPH

6000BPH

10000BPH

12000

BPH

16000

BPH

24000

BPH

Install Capacity(KW)

3.5

3.5

4

4.8

7.6

8.3

9.6

Overall size

1800×1600×2250

2450×1800×2400

2650×1900×2400

2900×2100×2400

4100×2400×2400

4550×2650×2400

5450×3210×2400
