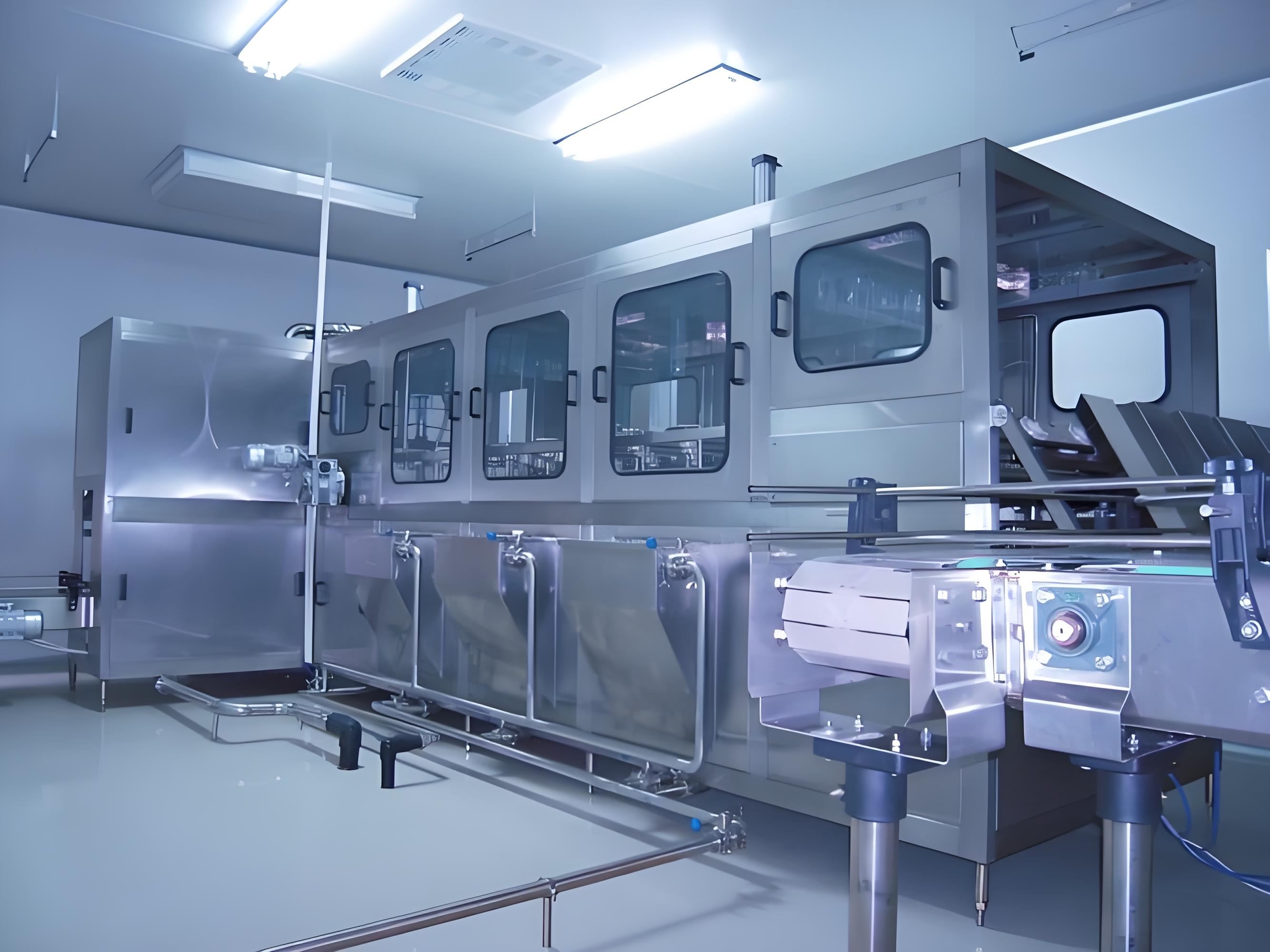

5 Gallon Mineral Water Bottle Filling Machine1
5 Gallon Mineral Water Bottle Filling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety, cost optimization and sustainability. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
200ml-2L
3-10L
5Gallon
Water Filling Production Line ADVANTAGE
Diversity of water treatment systems: We have different water treatment solutions for different raw water qualities.
★ The water treatment adopts the new vertical pipe design, which is beautiful and practical
★ The water treatment system adopts pneumatic valve to realize automatic control, a complete set of Siemens system, Dahuan brand ozone system, Philip ultraviolet lamp, glass fiber reinforced plastic membrane shell, ABB brand inverter, equipped with a complete set of flow charts
★ The filling line is equipped with a complete set of lubrication system, lubricating and conveying, prolonging the service life of the equipment
★ The filling system is equipped with Italian imported oil pump, ABB motor, Siemens control system, and food-grade 304/316 material.
★ In addition, our company customizes the high-speed air support filling valve to achieve a great increase in filling speed.
Parameters Table
Model
Filling heads
Volume(L)
Capacity(b/h)
Gas consumption
Moto power (kw)
Weight(kg)
Size(W*L*H)(m)
QGF-100
1
18.9
100
0.37
1.38
680
0.5*4.0*1.5
QGF-300
2
18.9
300
0.6
3.8
1500
0.9*4.0*1.5
QGF-450
3
18.9
450
0.8
5.6
2100
1.3*4.0*1.5
QGF-600
5
18.9
600
1
7.5
3000
1.8*4.0*1.5
QGF-900
6
18.9
900
1.5
9.75
3500
2.4*4.0*1.5
Products Fecture
1： The main electrical parts are from Siemens and Omron.
:2：Rinsing nozzles adopt American spraying system technology.
3：Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
4：Pneumatic parts are imported.
5： With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine.
:6：The machine combines the functions of rinsing, filling and capping.
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety, cost optimization and sustainability.
Bottle Filling System
Blowing
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety, cost optimization and sustainability. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities
Filling
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety, cost optimization and sustainability. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities
Combi
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety, cost optimization and sustainability. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities
