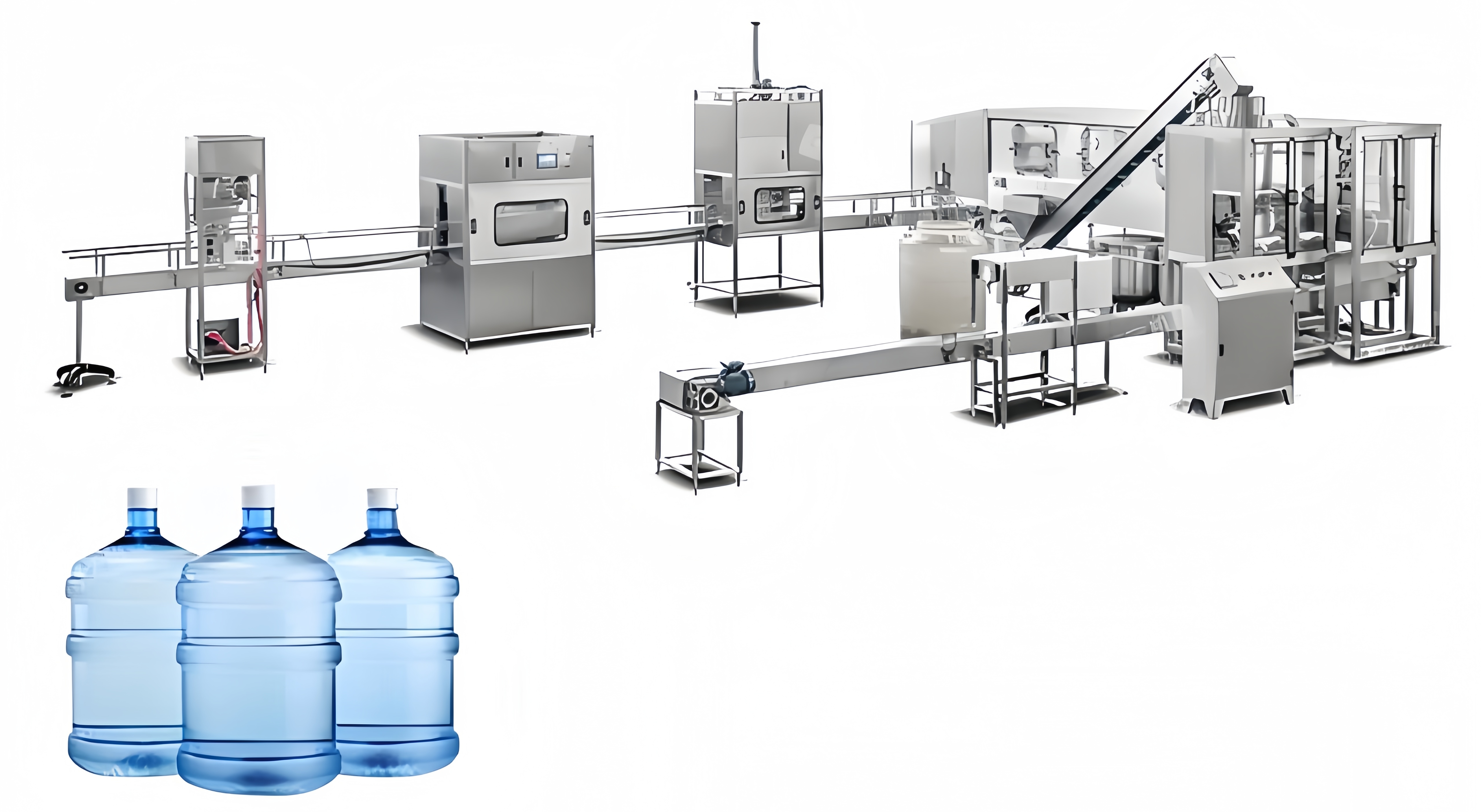

5 gallon water production line consists of empty bottle transferring, internal bottle brushing, auto de-capper, external bottle brushing,
rinsing filling capping, light checker, neck shrinker, bagging, full bottle transferring and pallitizer, enabling full automatic intelligent production. The whole process is strictly controlled, which ensures the complete compliance with customer’s local standards and regulations set up by their Health Department. During filling process, secondary pollution is strictly controlled, which makes it an ultra-clean production line. It’s a most ideal, acknowledged and reliable automatic gallon water production line for companies and factories. This line is mainly used for filling pure water or mineral water of 3 & 5 gallon bottle.

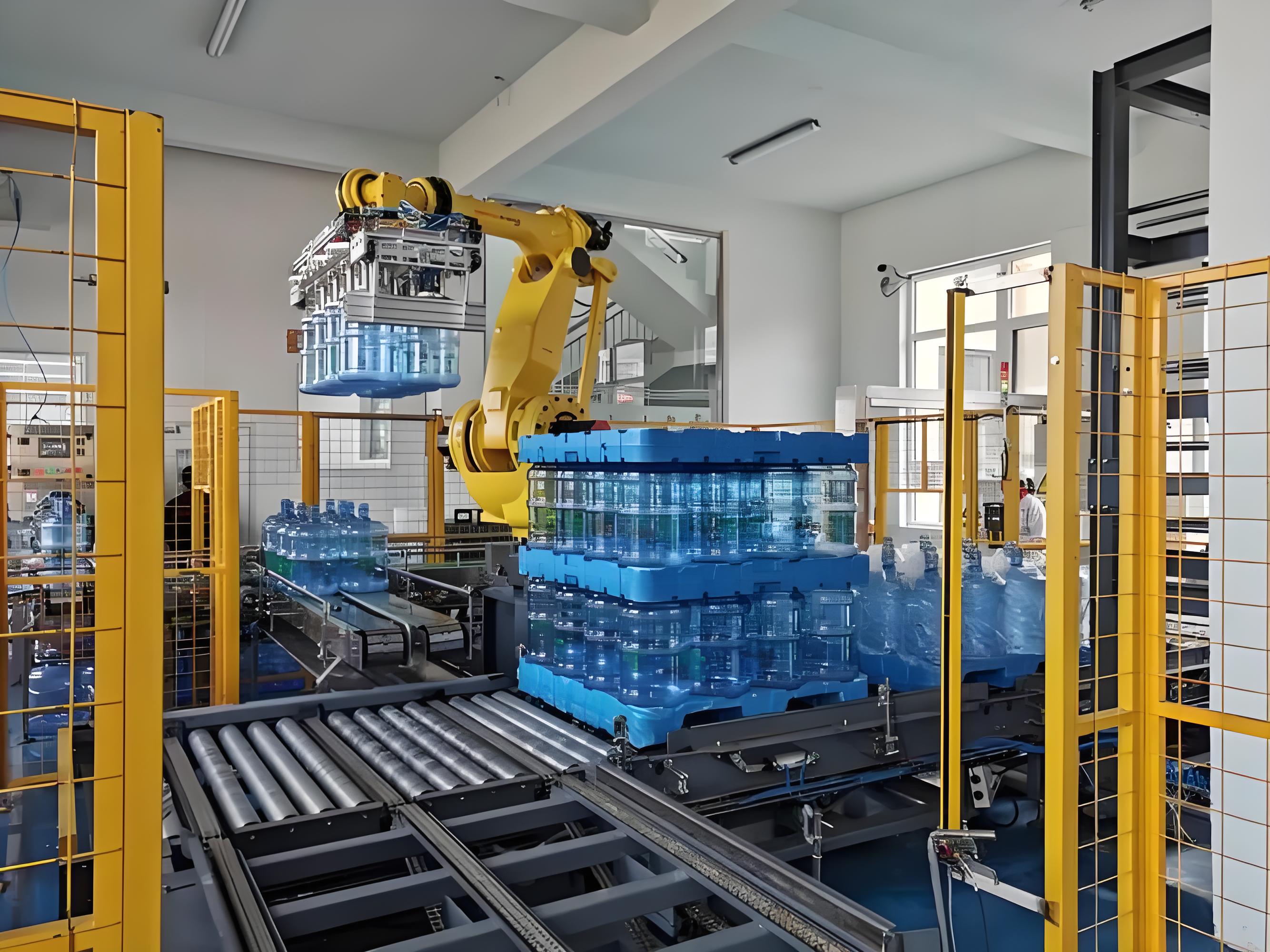

5 Gallon Automatic
Bottle Palletizer
5Gallon
Product Description
1：The whole process is controlled by computer or PLC, high automatic.
2：Optional intelligent plant management software applicable to internet collects, transits, stores, statistics, and analyses real-time data making remote control and digitalized production management easy.
3：Optimized technology lowers running cost by cutting down consumption of water, electricity, and chemical material.
4：The design of complete line fully complies with regulation for food safety-quality by avoiding dead angle, dead-end, static liquid. thread connector, etc.
5:Extensively adopts adapter, manhole, valve, etc., to ensure the safety and easy maintenance.
6:Combination of mature technology and continuous innovation ensures stability and reliability.
Parameters Table
Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water / Pure Water
Material
Shape
Filling Volume
Filling Type
Conveyor Mode
PC / PET
Round or Square
3 - 5 Gallon
Gravity filling Normal temperature
Conveyor belt
Adjustable Specifications of Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature: 10~40℃ Humidity: No dew
User Electrical Supply Specification
Voltage: 380V±5% 3phase Frequency: 50HZ±1%
All Equipments
1：The whole process is controlled by computer or PLC, high automatic.
2：Outer washer, Rinsing/sterilizing the surface of bottle, by means of hot detergent washing, brush scrubbing, and clean water rinsing
3：Inner washer: Washing/rinsing/sterilizing the inner bottle by means of hot detergent, disinfectant, and ozone water

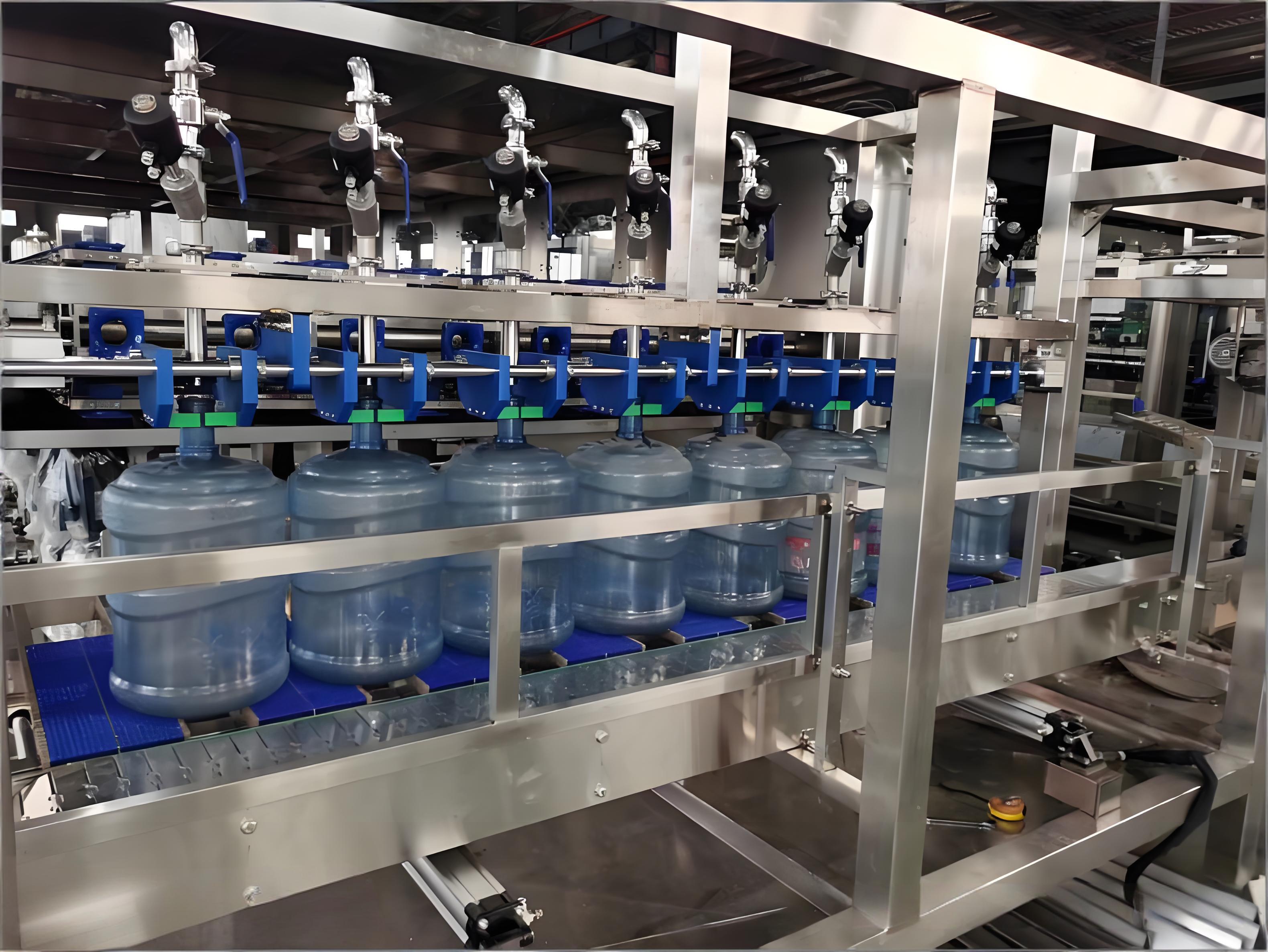

4：Filler: Fill product water into clean bottled
5：Capper: Seal Seal onto bottle
6：Cap feeder: Feeding cap into cap unscramble
7：Cap washer: Rinsing/sterilizing cap by means of disinfectant and ozone water
8：Lighting box: Inspect the bottle and product water
9：Cap feeder: Feeding cap into cap unscramble
10：Cap washer: Rinsing/sterilizing cap by means of disinfectant and ozone water
11：Lighting box: Inspect the bottle and product water
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety, cost optimization and sustainability.
Bottle Filling System

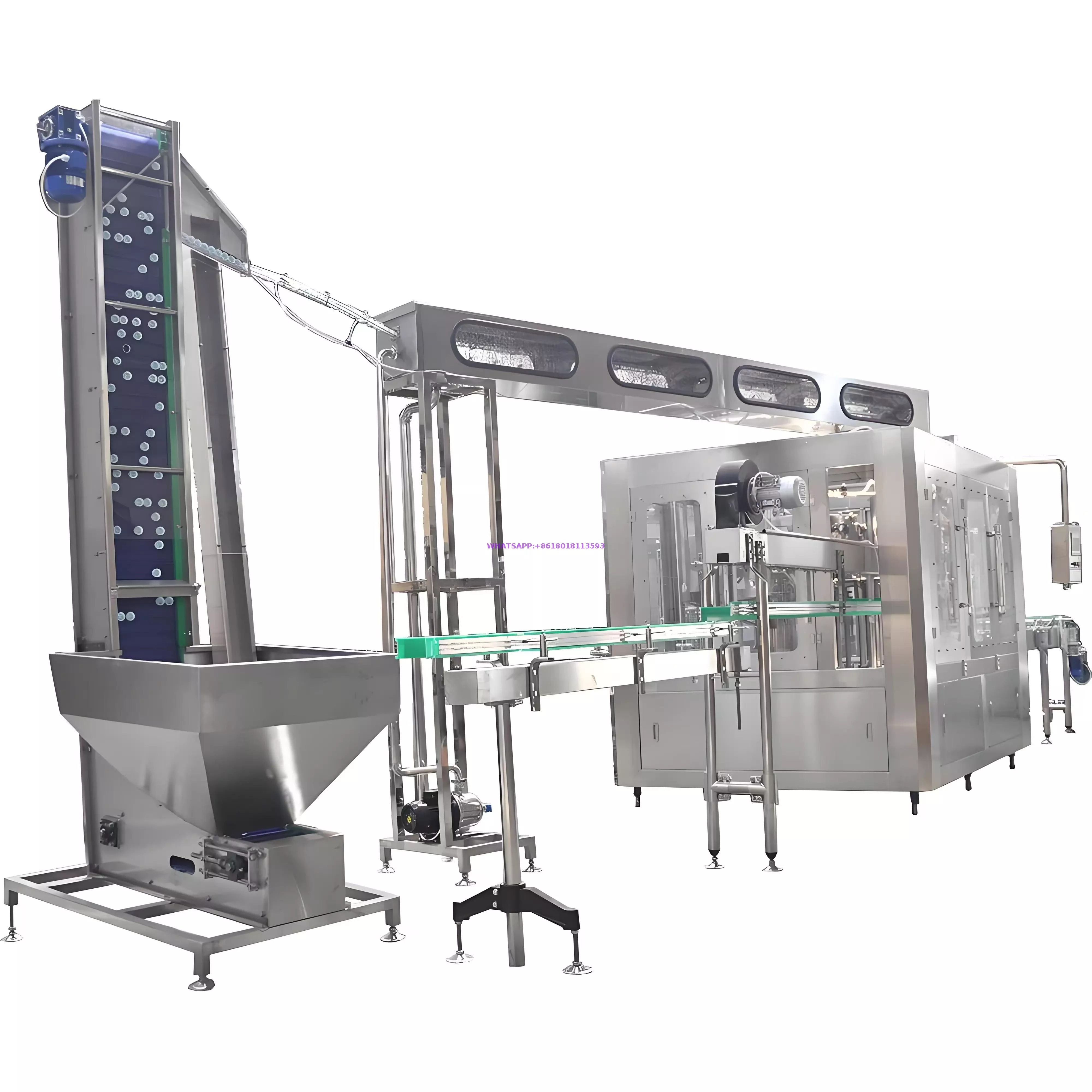

Filling
Filling machines are designed to accurately and efficiently fill containers with liquid or semi-liquid products.

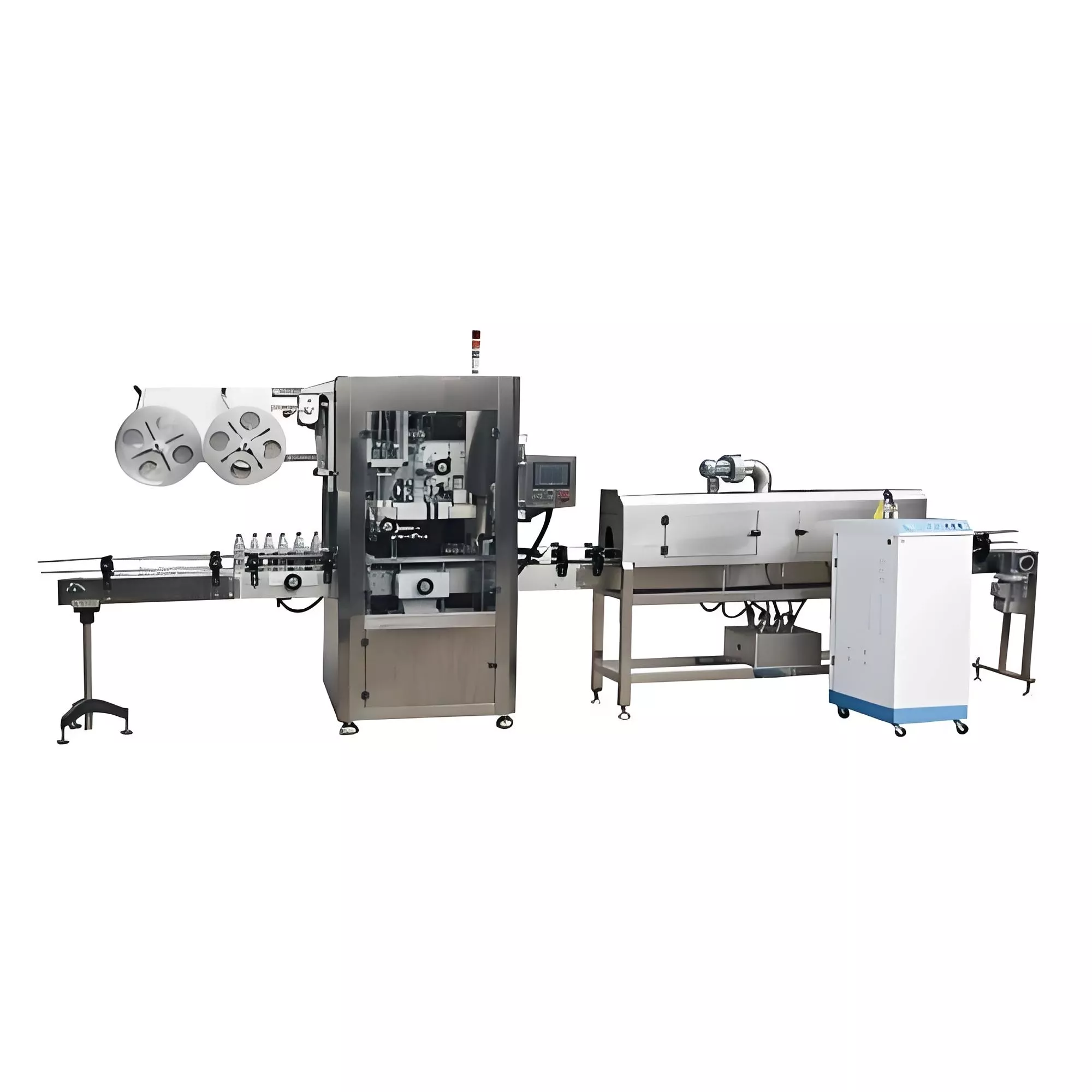

Labeling&Packing
Labeling machines are used to apply labels onto containers, such as bottles, cans, or boxes and then the bottles are packaged with PE film or cartons for easy transportation.
Water Purification
Raw water passes through a water purification system to produce clean water for drinking, filling, transportation and storage
Blowing
Blowing machines are used in the packaging industry to make plastic containers, such as bottles or jars.
