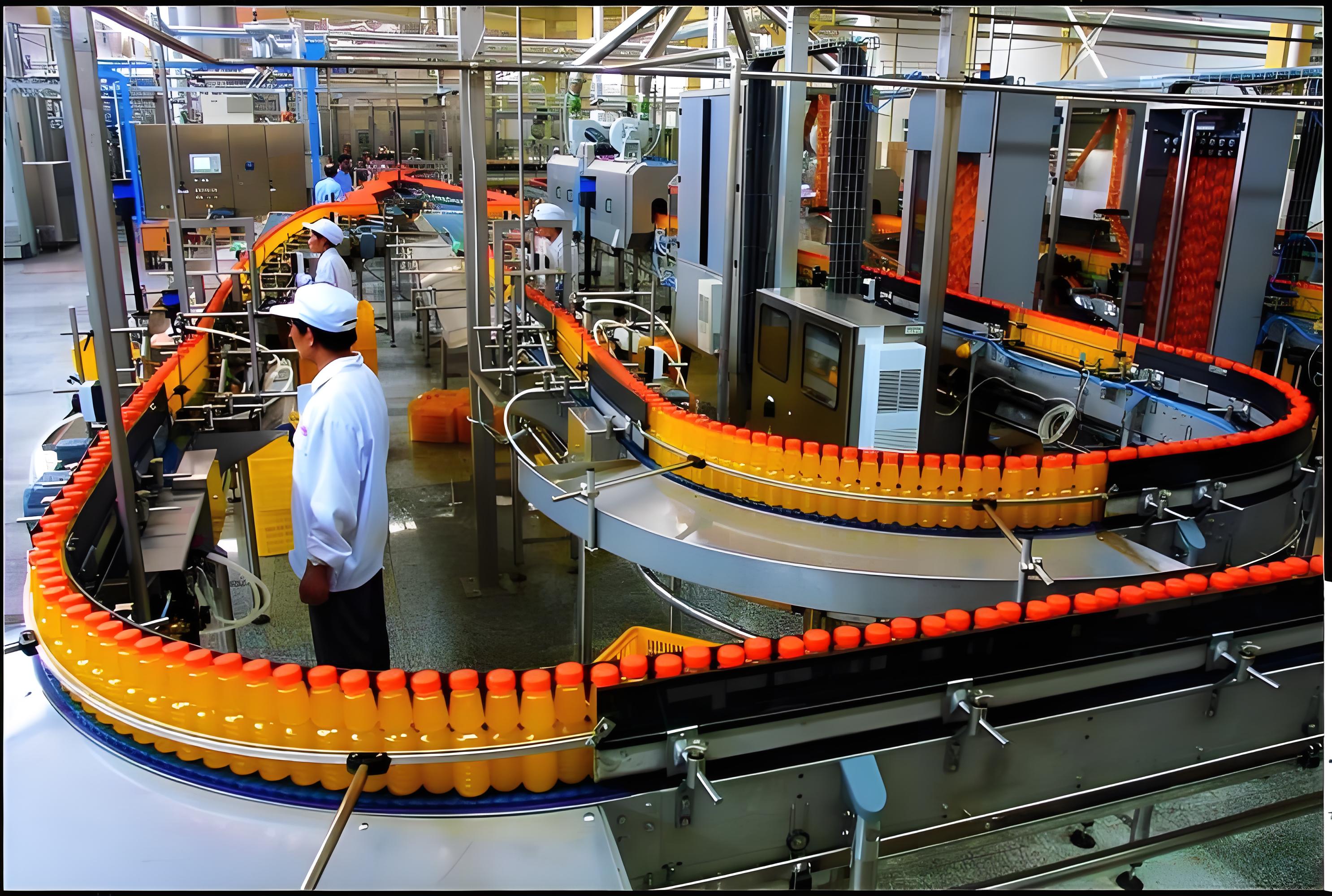

Juice, tea, milk-based products, liquid foods, energy drinks, milk tea, coffee, etc., are all hot-filling products. Product varieties keep growing with customer-preferred flavors and textures. Beverage diversity places extremely high demands on production equipment. Our filling machines provide tailored solutions for different products. Every one of your products will have a dedicated solution.
Automatic 3 in 1
Vegetables Fruit
8000BPH
Glass Bottle Juice Filling Machine

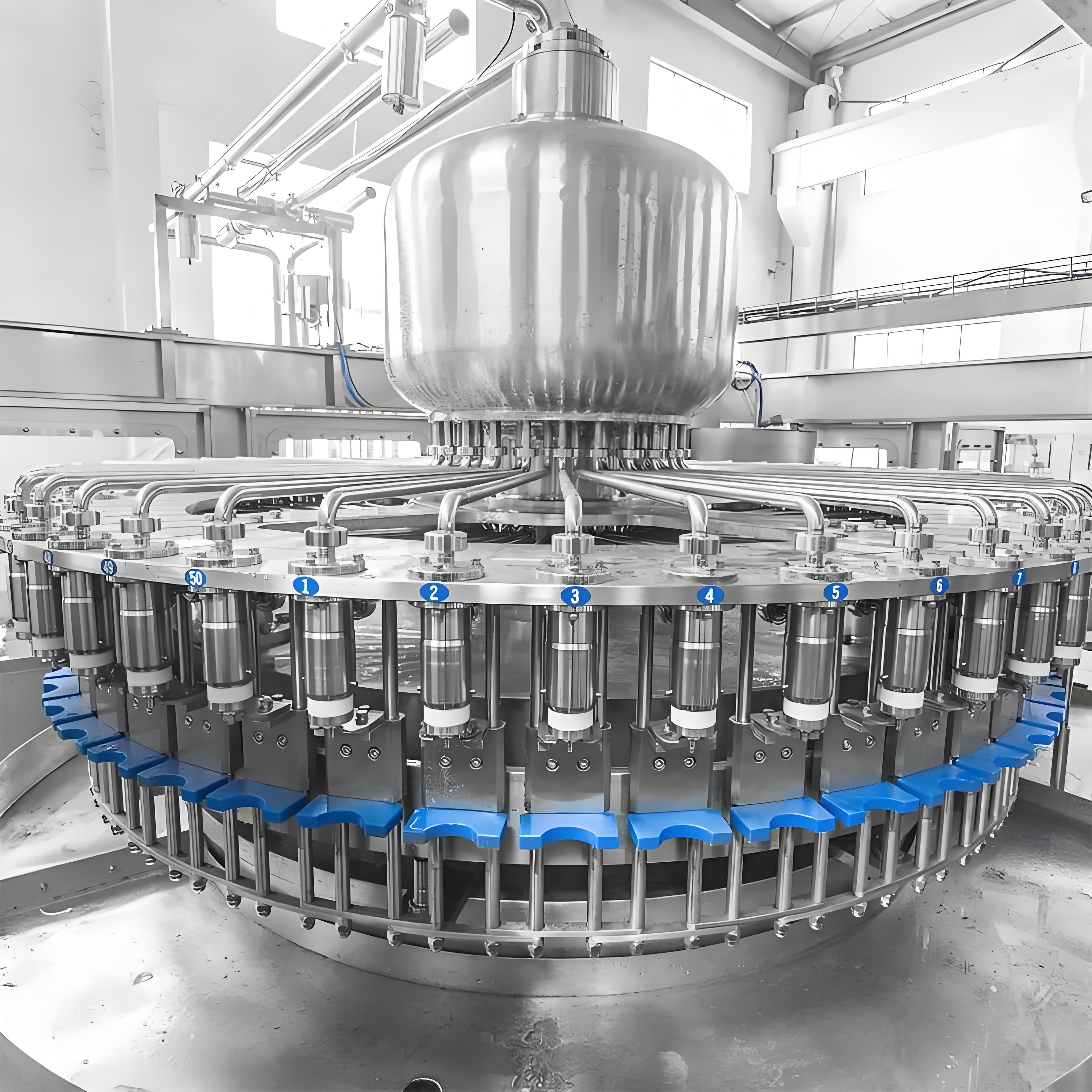

RCGF Glass Bottle Wash–Fill–Cap 3-in-1 Monoblock: This automatic juice packaging machine is used for hot filling and sealing of green tea, black tea, oolong tea, fruit juice drinks, energy drinks, milk drinks and dairy beverages. The machine integrates washing, filling and capping in one unit. It features scientific and reasonable design, attractive appearance, convenient operation and maintenance, and a high degree of automation.
Parameters Table
Model
Capacity
Pressure (MPa)
Total Power (kW)
Overall Size
Weight (kg)
RCGF14124
3000-4000
0.25-0.3
1.87
2300*1680*2650
2600
RCGF18186
5000-7000
0.25-0.3
2.57
2500*1760*2650
3500
RCGF24248
8000-12000
0.25-0.3
3.7
3100*2100*2650
4800
RCGF32328
12000-15000
0.25-0.3
4.7
3800*2800*2650
6500
RCGF404010
16000-18000
0.25-0.3
8.2
4000*3300*3400
10000
RCGF505012
20000-24000
0.25-0.3
9.7
4850*3650*3300
12000
RCGF606015
24000-28000
0.25-0.3
11.7
6500*5400*3500
15000
Technical Characters
1：Full filling prevents bottle deformation after cooling and minimizes dissolved oxygen to the greatest extent.
2：The reasonably structured storage hopper and feeding system maintain constant flow rate, constant pressure and no foaming. A high-level tank is typically used.
3：he storage hopper features degassing, full sealing and temperature detection. In medium–high speed lines, the material distributor replaces large liquid tanks to achieve full CIP.

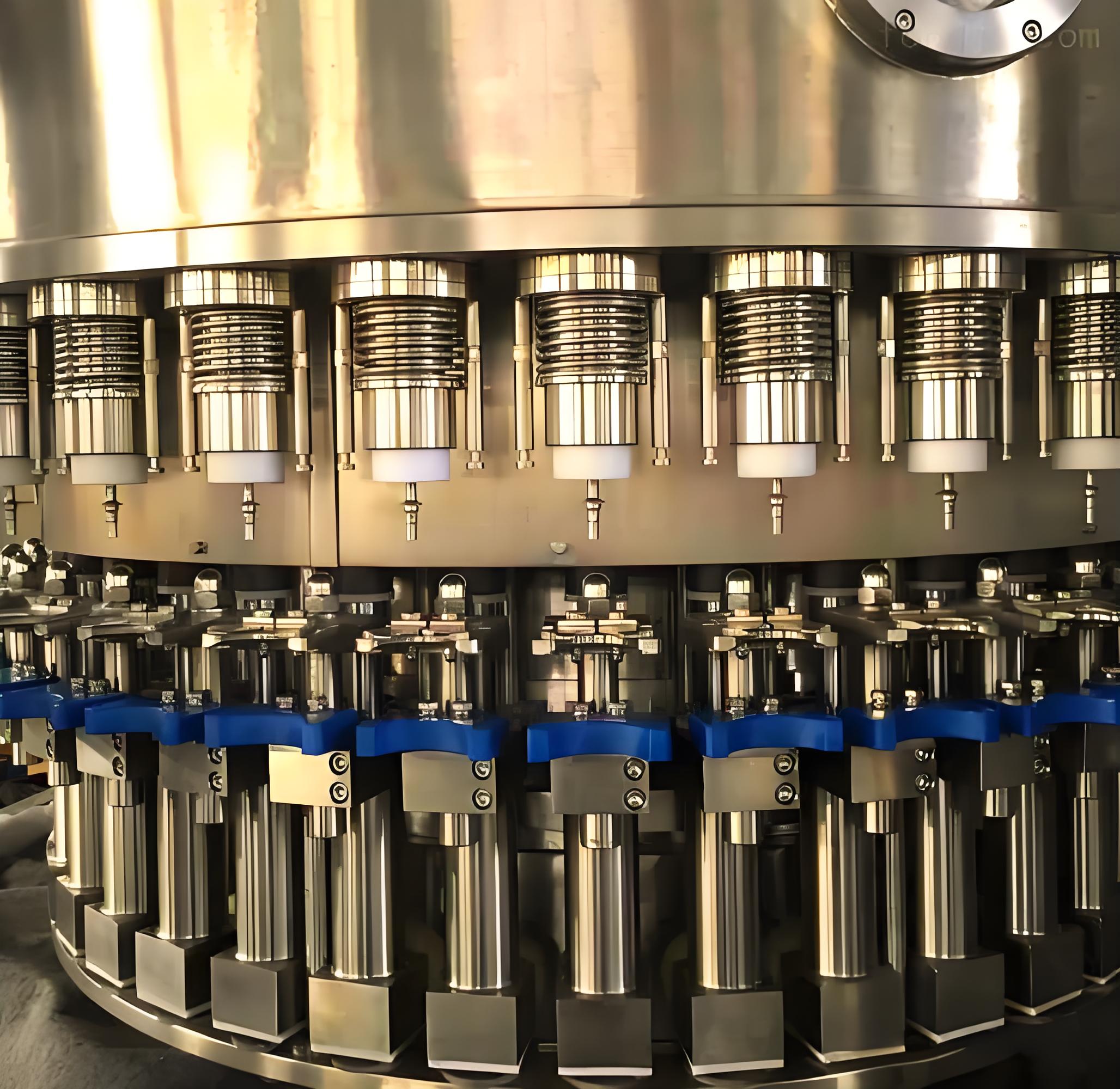

4：The sanitary filling head adopts an umbrella structure with high filling speed.
5：Perfect filling temperature control system.
6：The return tank system features automatic material supply.
7：Perfect CIP cleaning system.
Machine Features

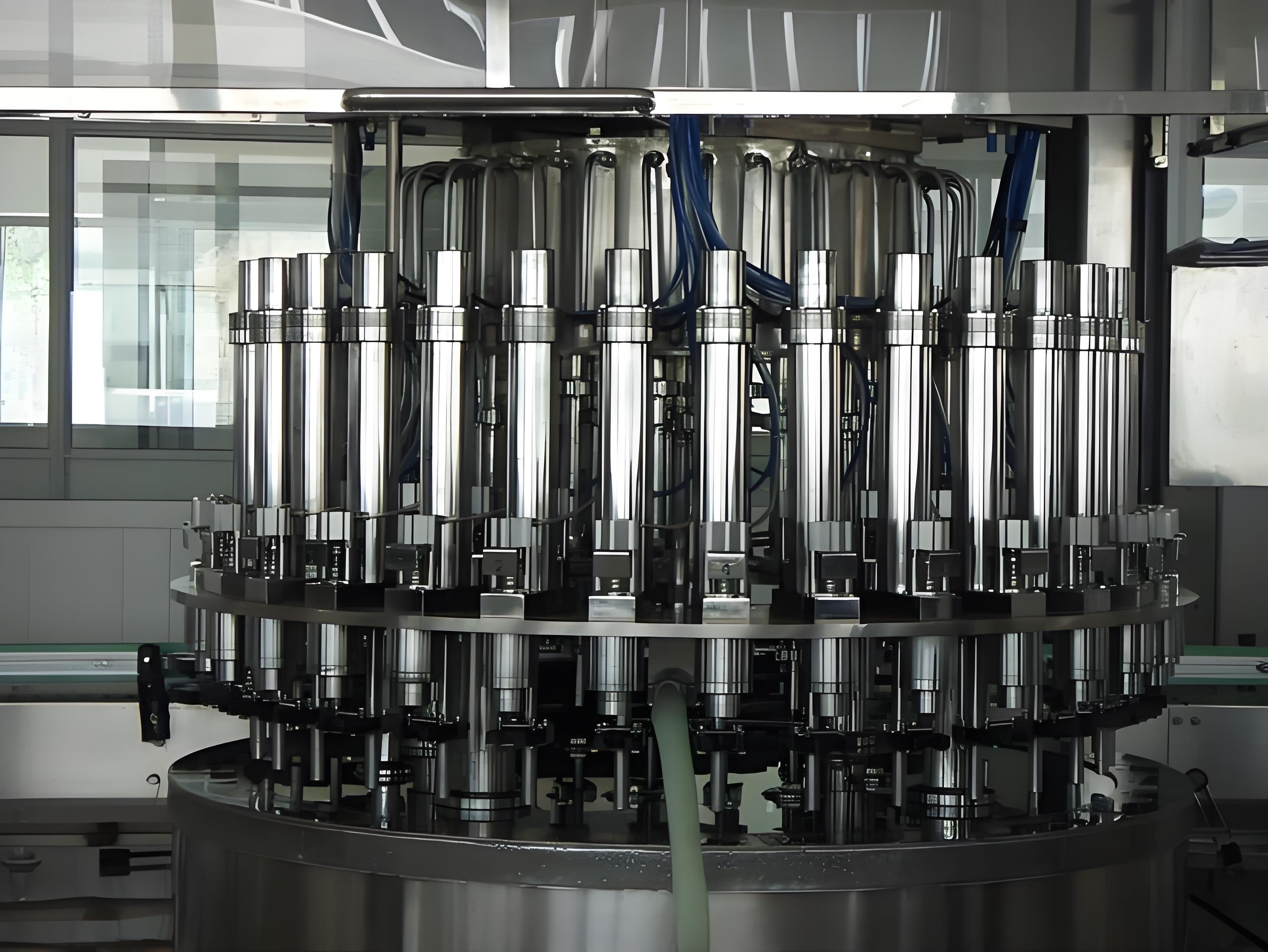

Filling Heads

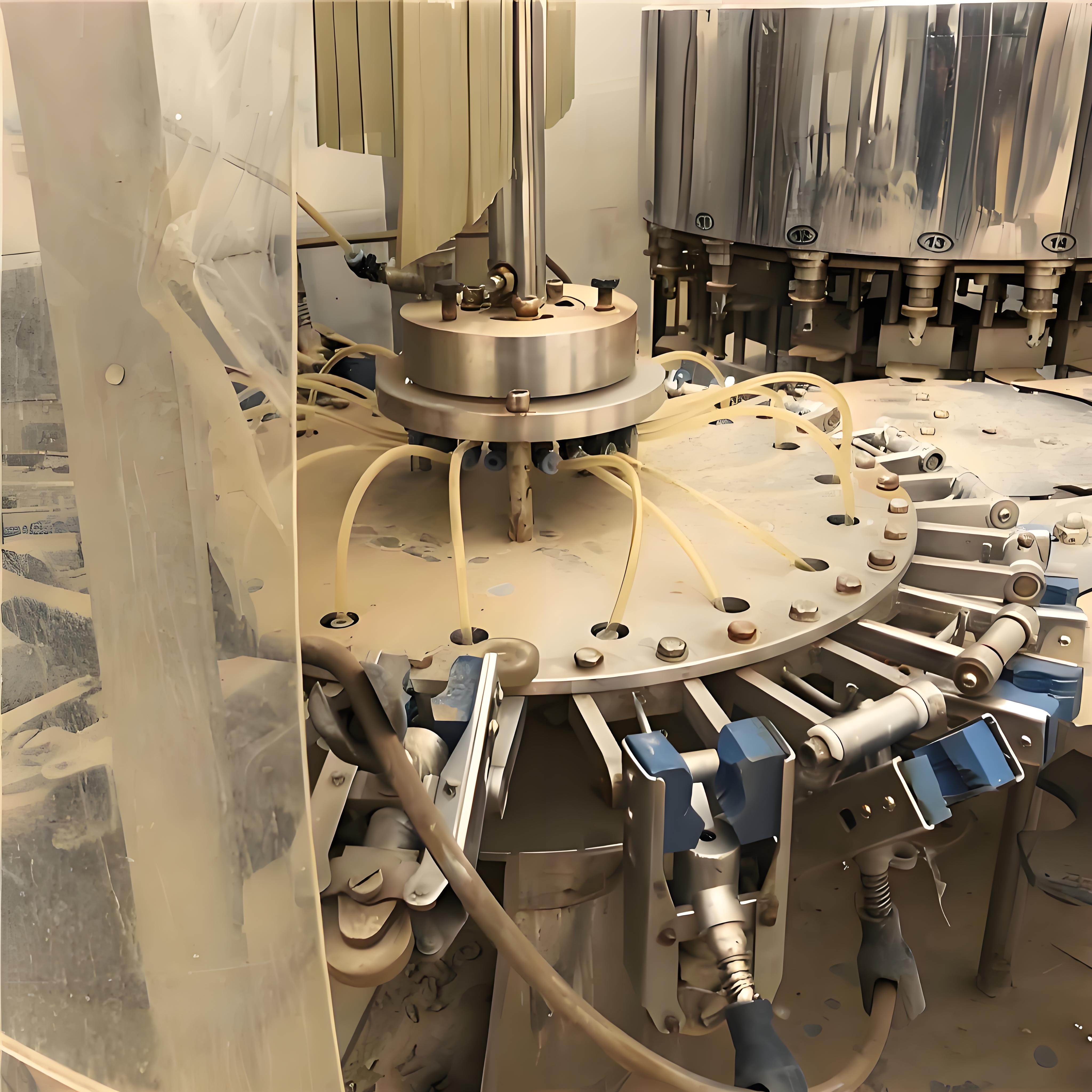

Capping Heads

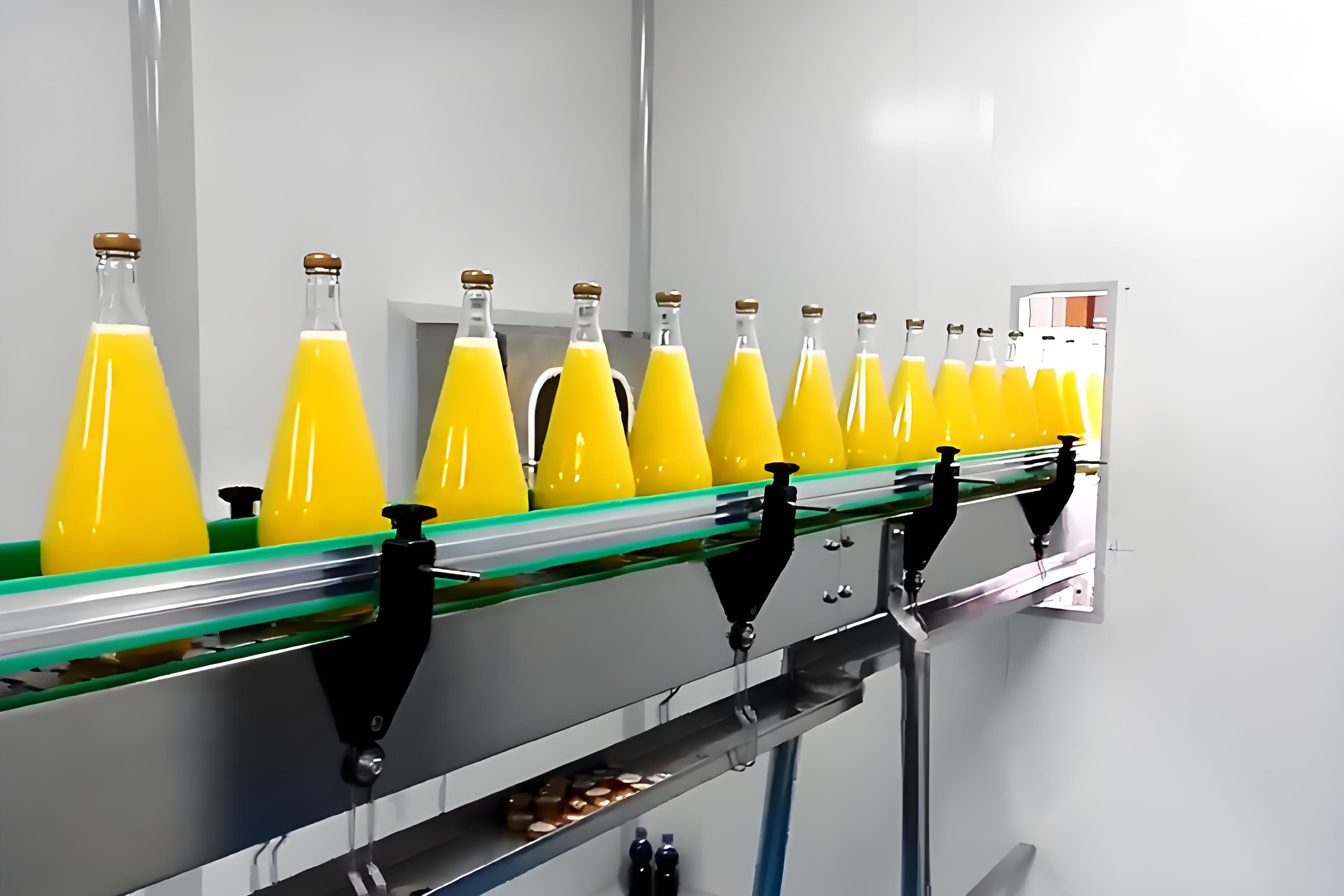

Flat Conveyor
