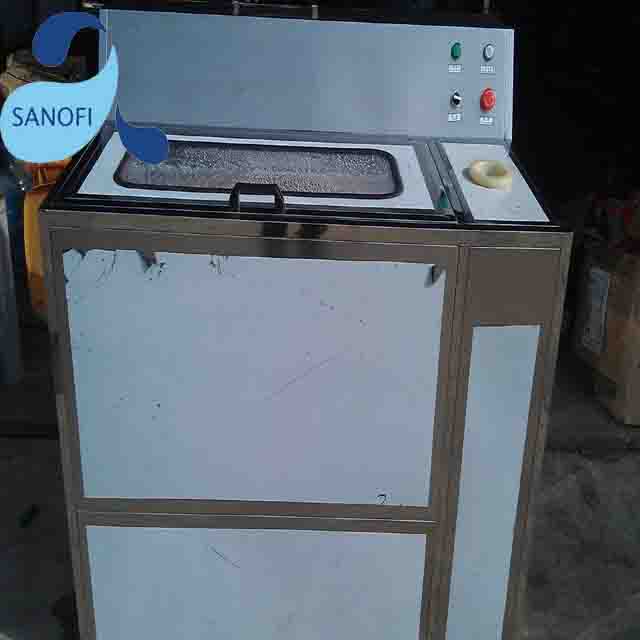

BS-1 5 Gallon Bottle Jar Washer Cleaning Rinsing Machine
Machine Introduction
This washing machine is mainly use for the 3,5 gallon barrel filling production line, it can wash the barrel mouth and body, so
specially use for mineral water etc.
The barrel is first decapped on the right side and then is put into the left part.

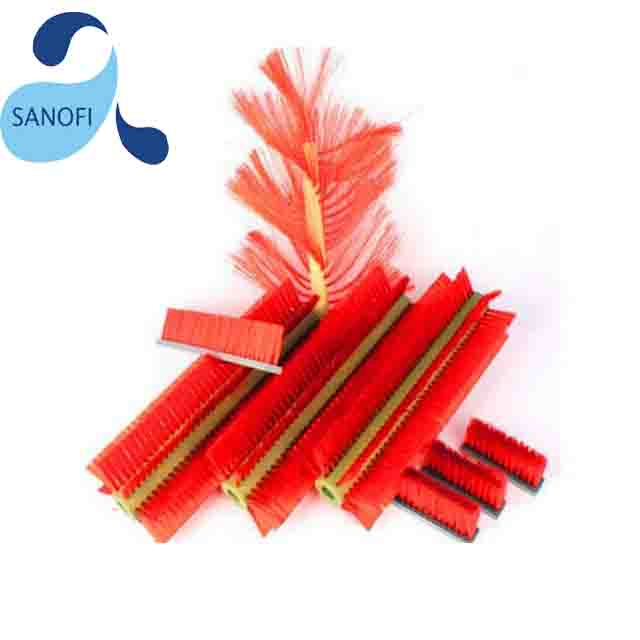

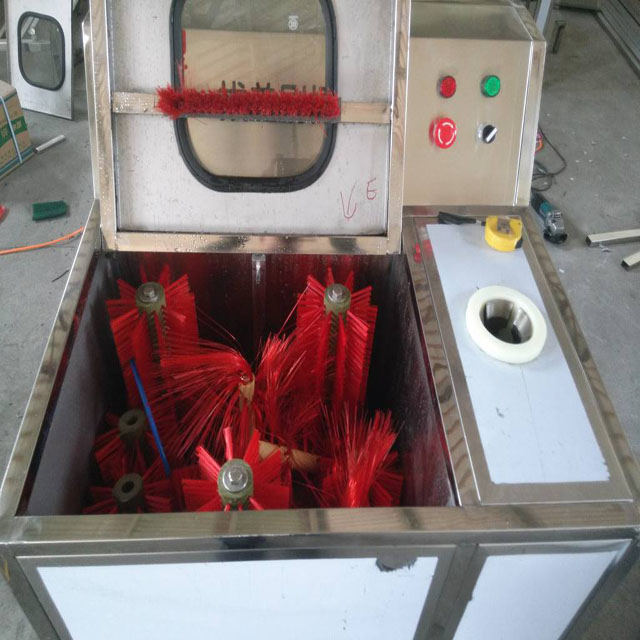

The brushes will remove the stain but will not damage the barrel and printed pattern on the barrel, the special brushes on the
bottom of the barrel. It can not only wash barrel with flat barrel, but also barrel with sunken bottom.
During the process of cleaning. With the aid of detergent, it can clean the stain completely. On the outlet for barrel, the clean
water spraying system will wash away the detergent.
The whole machine has employed an enclosed design, with high reliability and good stability.
Main technical parameters:
| Power supply | 220V±50Hz & 380V±50Hz |
| Input power | 1.8KW |
| Bottle spec(mm) | Φ270×490×Φ56 |
| Bottle volume | 5 or 3 gallons |
| Bottle washing capacity | 100b/h |
| Out size(mm) | 800×750×1210 |
| Packing size(mm): | 1050×1000×1410 |
| Weight: | N.W.:120KG G.W.:130KG |
