SF
SANOFI

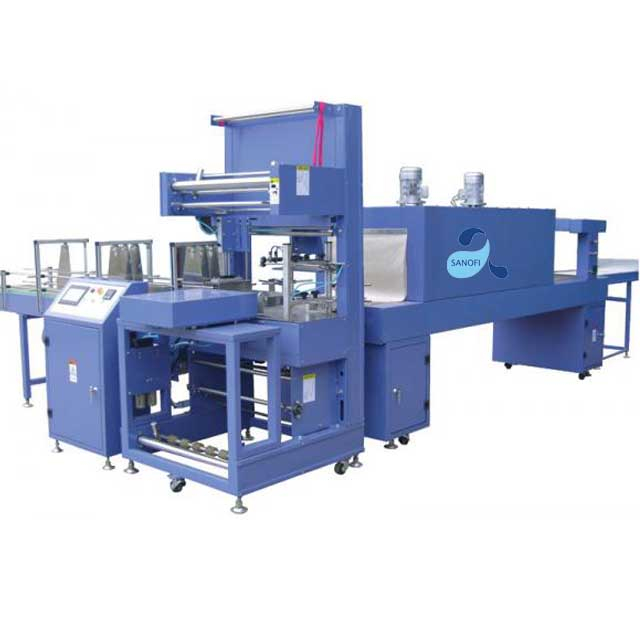

Description and features:
1. frequency converter speed adjust,two segment convey device.
2. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
3. Proximity switch control film length.
4. Touch screen, PLC system greatly increases facility movement reliability.
5. double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
6. Super big wind-volume cooling system, ensure quickly get into shape.
7. Anti-high temperature Teflon convey belt, convey steadily, high-strength anti-abrasion.
8. Frequency limitless speed adjust convey belt frame.
9. convey belt height can make according client requirement, adjust range:±50mm
10. Bottle convey machine can meet with client bottle forward direction requirement, can lengthen or shorten.
11. Wing stainless steel heating system, endurance.
12. Meet with product instant stop requirement product-bearing rack device ensure production line consistency
1.wrappage max size:L600×W400×H350mm
2.shrinkage film size:PE,PVC,POF
shrinkage thermo thickness:0.03-0.15mm
3. thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.
4.max output per minute:8-12bag
5.facility power:18Kw
6. actual power:15Kw/hr
7. pressure requirement:380/220V
8 facility weight:1.2T
9.fan machine:1.1Kw 2set 380V, 65W 4set 380V
Description
Technical parameter of packing products:
The length of thermal sealing & cutting knife: 700mm
Thermal shrinkage temperature: 160-250 °C
Speed: 8-12 packages
Normal bottle quantities in one package(round shape or rectangle)
4 rows 4*6 4*5 4*4 applicable bottle dimension: Φ40-Φ73mm
3 rows 3*4 3*3 3*5 applicable bottle dimension: Φ73-Φ98mm
2 rows 2*3 2*4 applicable bottle dimension: Φ98-Φ140mm
1 row 1*2 applicable bottle dimension: Φ140-Φ300mm
no | Name | specification | number | brand | ||
1 | board production component | |||||
2 | Plant metal component | |||||
3 | pneumatic component | 1 | Taiwan Airtec | |||
4 | Electric controlling component and accessory | |||||
Photoelectric switch | 4 |
South Korea Autonics
| ||||
Proximity switch | 2 | South Korea Autonics | ||||
PLC | 1 | Thinget | ||||
Touch screen | 1 | Thinget | ||||
Frequency converter | 3 | Taiwan Telta | ||||
AC contactor | 3 | France Schneider | ||||
Mid-relay | 8 | France Schneider | ||||
| ||||||
