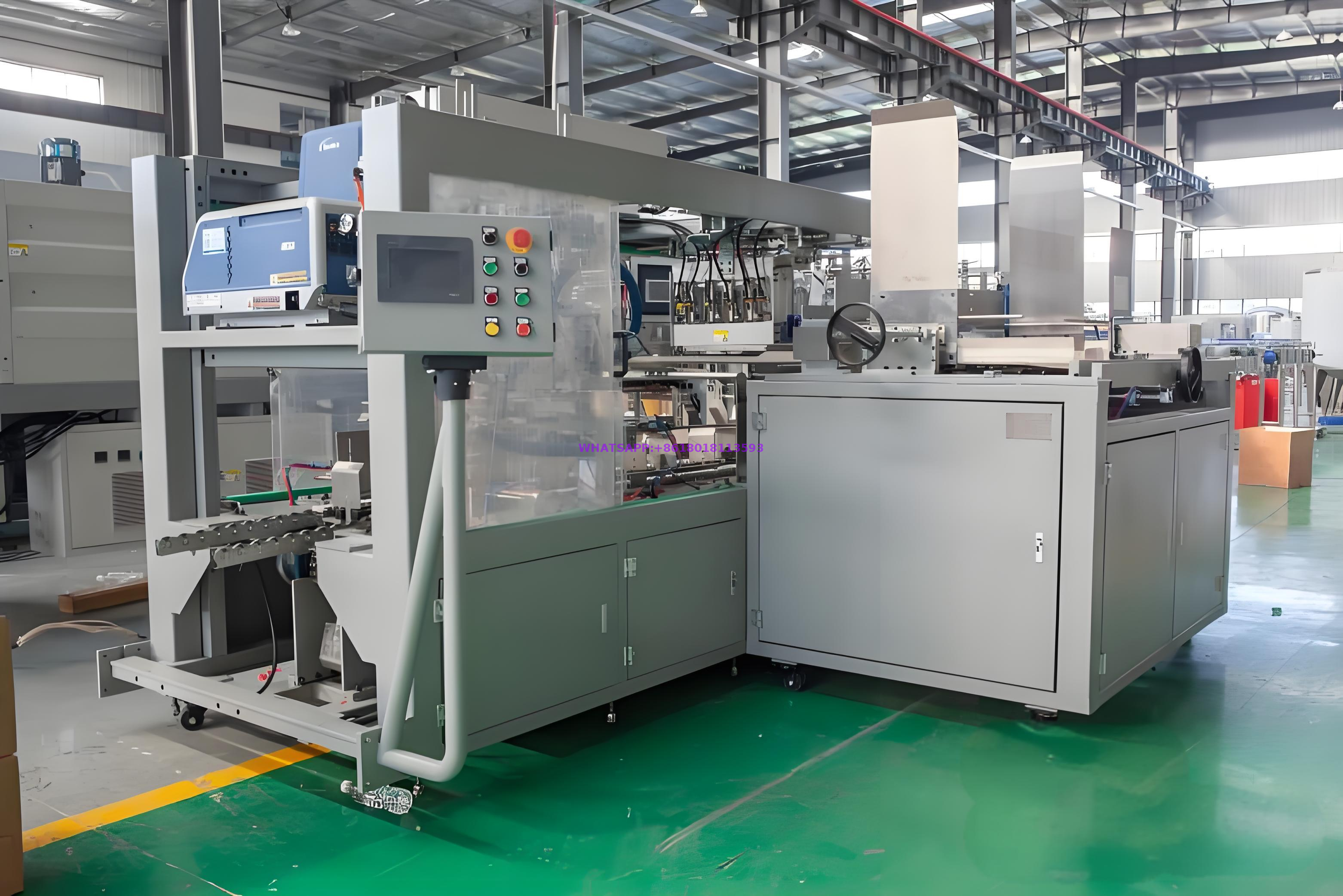

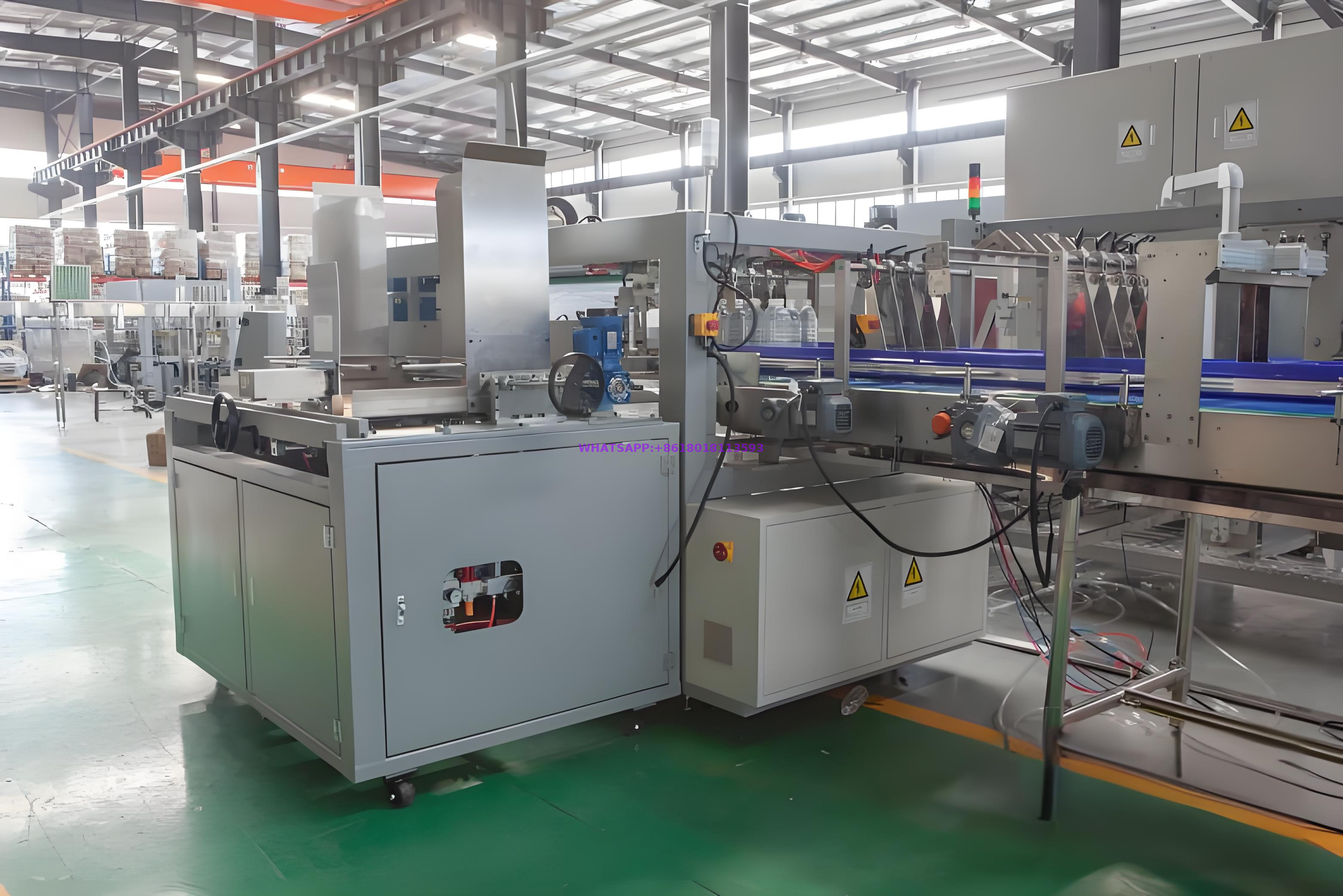

One Piece Carton Packing Machine

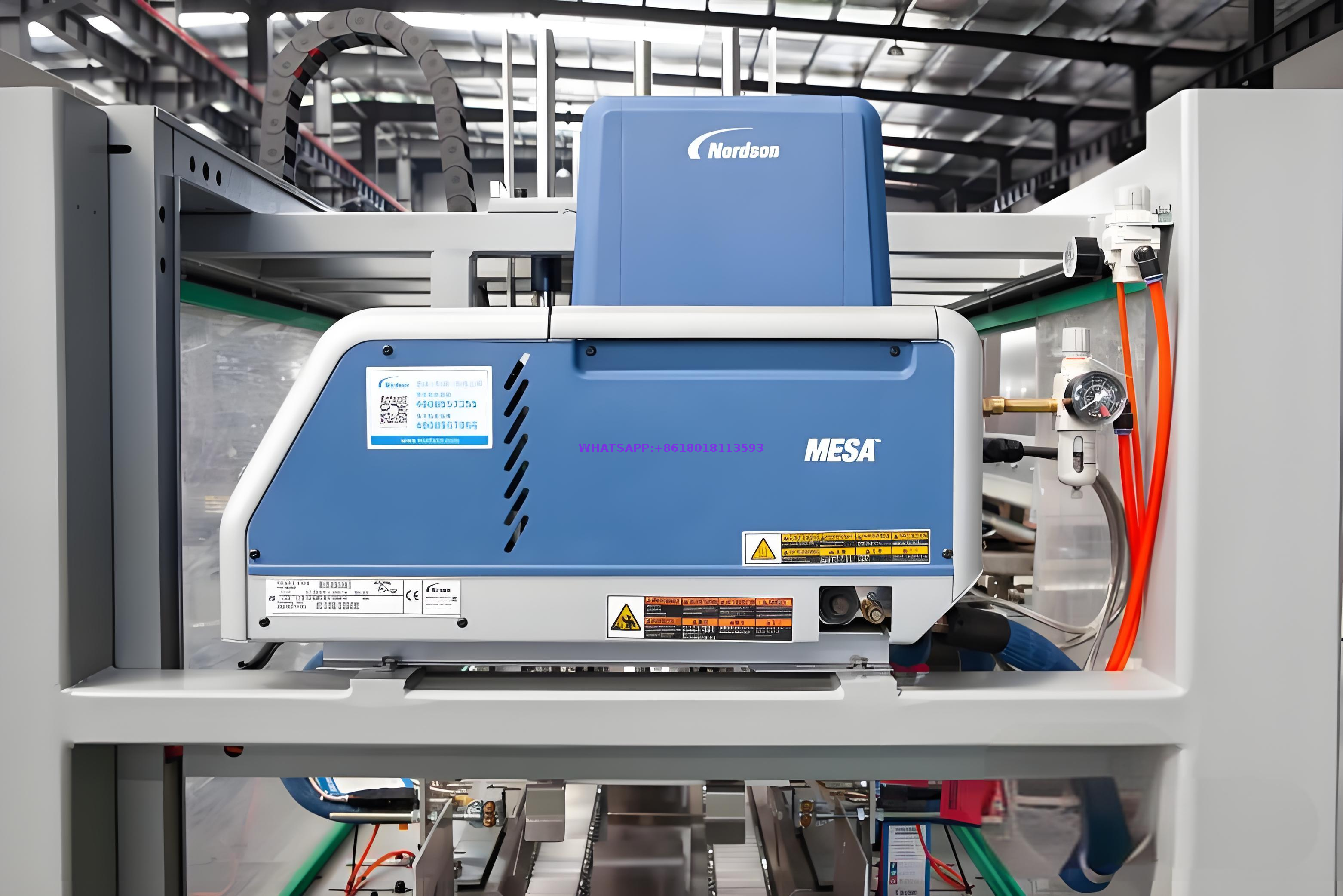

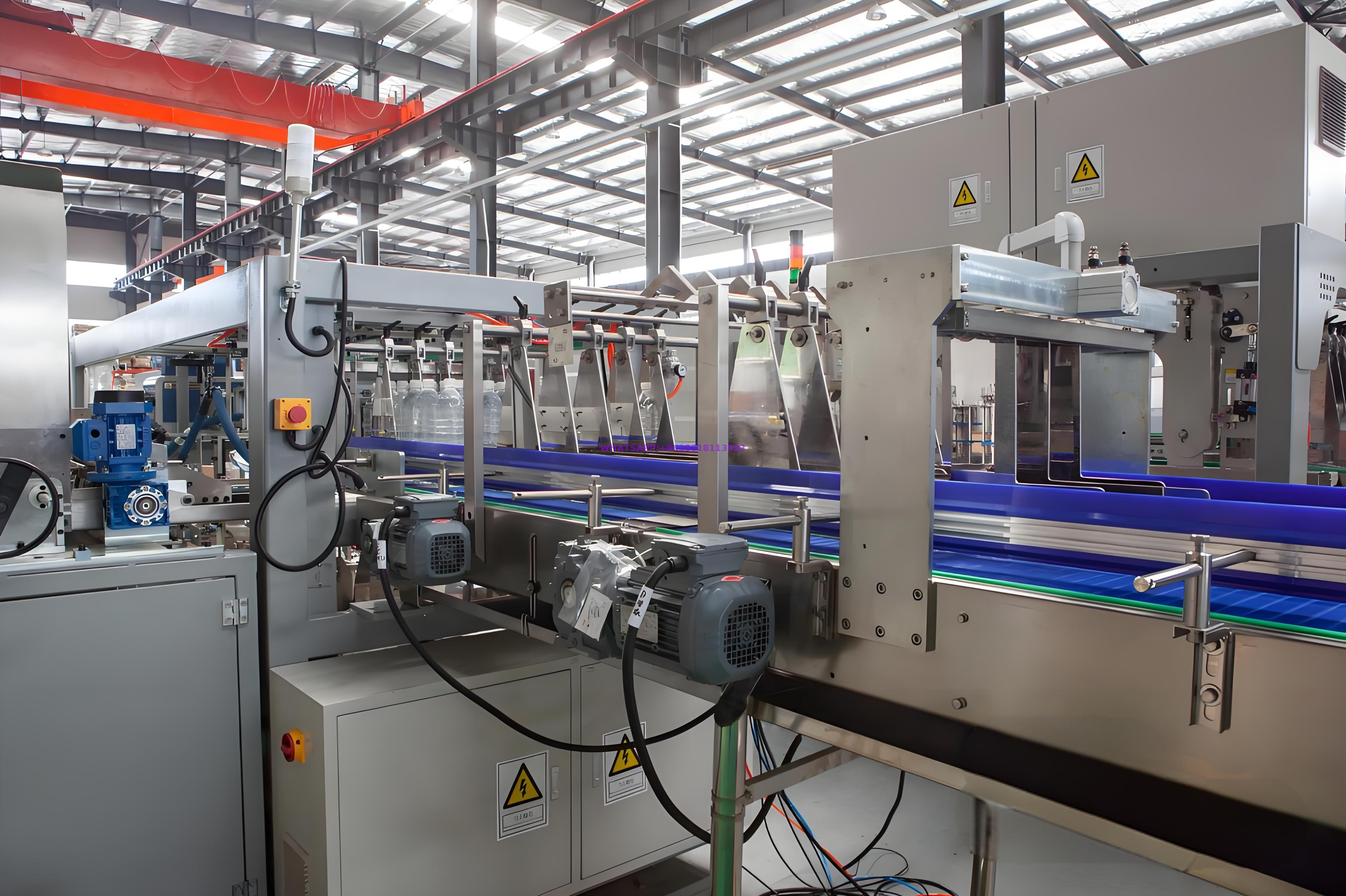

Bottles are separated to multi channel at conveyor, and then group by bottle separate fracture evenly. Bottles are grouped, then drop to cardboard via Bottle drop fracture. At drop fracture with Bottle and cardboard fall procedure, via one group of form block board, then card board fold to carton form. Via main drive with carton move forward, at the same time, via glue spray fracture to finish carton top glue spray, again the cam fracture via top ledge fold, at the same top carton fold to finish top sticking. Carton move forwarder, again via glue spray fracture to finish carton side glue spray, and via side pressure and carton press fracture to finish carton finally form and sticking, and via main drive let carton move forwarder to conveyor.

Features

1. Direct bottle feeding method: small footprint, simplifying the conveying system in front of the cartoning machine, and reducing the investment cost of the entire line of equipment;  2. The side feeding method is adopted: the structure is simple and reasonable, and the failure rate is small; 3. Two-stage decompression is adopted: the product is effectively decompressed, the bottle is dropped smoothly, and the bottle is not stuck, and the success rate of bottle dropping is 100%; Basically eliminate the phenomenon of bottle pouring; 4. Adopt servo bottle drop system: high positioning accuracy, accurate movement, effectively reduce the impact and vibration during equipment operation, and greatly improve the stability and reliability of equipment operation;

Parameters
