RCGF
SANOFI
Application: juice, milk, vitamin drinks, functional beverage with particles, flesh, pulp, fruit pieces,etc.
Suitable for: PET bottles with all volumes and shapes
Filling system: gravity filling
Production capacity: 1,000BPH–20,000BPH (500ml)
-Water treatment system
-Juice extractor
-Mixing system
-Bottle blow molding machine
-Bottle unscrambler
-Cap elevator
-Filling system
-Bottle inverse sterlizing machine
-Bottle cooling machine
-Blow dryer
-Labeling machine
-Ink jet printer
-PE Film shrink packing machine
JUICE MACHINE PROFILE

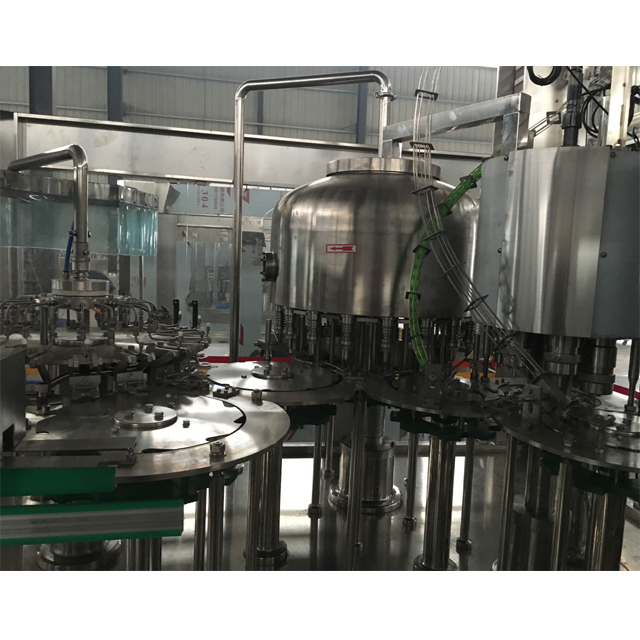

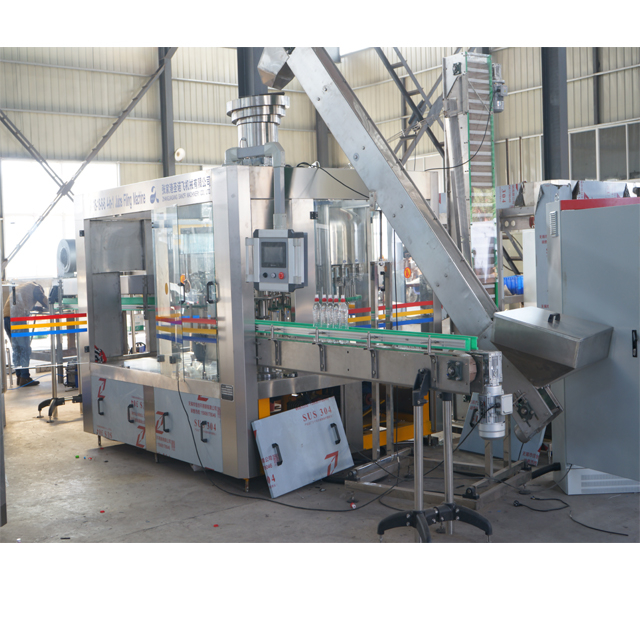

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
FEATURES OF JUICE MACHINE
1. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
3. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4. Sanitary filling head system is of umbrella structure, high filling speed.
5. Perfect filling temperature control system.
6. Reflux tank system has the function of supplying the material automatically.
7. Perfect CIP system.
8. To realize stable running, convenient for maintenance and long life, all the electric and pneumatic components are from world famous manufacturer. Example, PLC from OMRON, transducer from MITSUBISHI, pneumatic components from FESTO, switch
Technical Data :
Model | CGFR 16-12-6 | CGFR 18-18-6 | CGFR 24-24-8 | CGFR 32-32-10 | CGFR 40-40-12 | CGFR 50-50-15 |
Washing No | 16 | 18 | 24 | 32 | 40 | 50 |
Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 6 | 6 | 8 | 10 | 12 | 15 |
Production Capacity(500ml) | 5000BPH | 6000BPH | 8000BPH | 12000 BPH | 15000 BPH | 18000 BPH |
Install Capacity(KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall size | 2450×1800×2400 | 2650×1900×2400 | 2900×2100×2400 | 4100×2400×2400 | 4550×2650×2400 | 5450×3210×2400
|
