UHT
SANOFI
Capacity: 1-10T
Controlling way: Half-automatic, completely automatic (PLC controlling, touch view)

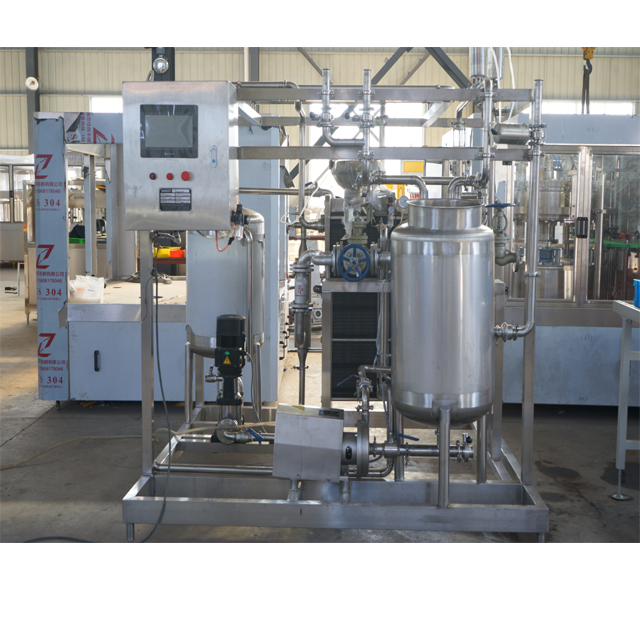

1-The sterilizer is composed of four layer sleeving pipe or multi-pipe. Heat exchanger. Stepless speed change conveying pump, holder, closed water barrel, superheating water generator, frame, controller etc.
2-Includes heating section, sterilizing section and cooling section.
3-The heating-holding section has reasonable structure to guarantee the temperature stability and security of products
4-There is superheating water and cooling water channel during the cleaning which can avoid the scaling.
5-Adopting the method of superheating water heating to improve the heat effect.
6-LCD monitor, automatic PLC system, multi-stage recorder to record important temperature.
7-Italy valves, SIEMENS and OMRON electrical components, the PLC monitor can indicate every parameter directly to inspect it in time easily and guarantee the stability of running.
Model | UHT-1 | UHT-2 | UHT-3 | UHT-4 | UHT-5 |
Product capacityT/h | 1 | 2 | 3 | 4 | 5 |
Heat exchanging area m2 | 16 | 26 | 38 | 46 | 56 |
Materal inlet temperature ºC | 5 | 5 | 5 | 5 | 5 |
Materal inlet temperature ºC | 5 | 5 | 5 | 5 | 5 |
Sterilizing temperature | 137 | 137 | 137 | 137 | 137 |
137Warmkeeping timeS | 4 | 4 | 4 | 4 | 4 |
Ice water temperature ºC | 1 | 1 | 1 | 1 | 1 |
Ice water cos T/h | 3 | 4 | 6 | 8 | 12 |
Jiont size mm | φ 25 | φ 38 | φ 38 | φ 51 | φ 51 |
Weight kg | 980 | 1080 | 1160 | 1350 | 1680 |
Size mm | 1500 * 1500 | 1900 * 1800 | 1900 * 1800 | 1900 * 1800 | 2600 * 2200 |
power kw | 3 | 4 | 5 | 6 | 6
|
Capacity: 1-10T
Controlling way: Half-automatic, completely automatic (PLC controlling, touch view)
1-The sterilizer is composed of four layer sleeving pipe or multi-pipe. Heat exchanger. Stepless speed change conveying pump, holder, closed water barrel, superheating water generator, frame, controller etc.
2-Includes heating section, sterilizing section and cooling section.
3-The heating-holding section has reasonable structure to guarantee the temperature stability and security of products
4-There is superheating water and cooling water channel during the cleaning which can avoid the scaling.
5-Adopting the method of superheating water heating to improve the heat effect.
6-LCD monitor, automatic PLC system, multi-stage recorder to record important temperature.
7-Italy valves, SIEMENS and OMRON electrical components, the PLC monitor can indicate every parameter directly to inspect it in time easily and guarantee the stability of running.
Model | UHT-1 | UHT-2 | UHT-3 | UHT-4 | UHT-5 |
Product capacityT/h | 1 | 2 | 3 | 4 | 5 |
Heat exchanging area m2 | 16 | 26 | 38 | 46 | 56 |
Materal inlet temperature ºC | 5 | 5 | 5 | 5 | 5 |
Materal inlet temperature ºC | 5 | 5 | 5 | 5 | 5 |
Sterilizing temperature | 137 | 137 | 137 | 137 | 137 |
137Warmkeeping timeS | 4 | 4 | 4 | 4 | 4 |
Ice water temperature ºC | 1 | 1 | 1 | 1 | 1 |
Ice water cos T/h | 3 | 4 | 6 | 8 | 12 |
Jiont size mm | φ 25 | φ 38 | φ 38 | φ 51 | φ 51 |
Weight kg | 980 | 1080 | 1160 | 1350 | 1680 |
Size mm | 1500 * 1500 | 1900 * 1800 | 1900 * 1800 | 1900 * 1800 | 2600 * 2200 |
power kw | 3 | 4 | 5 | 6 | 6
|
