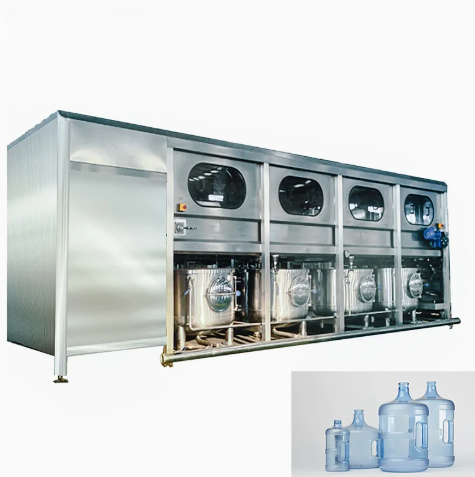

Our 5-gallon water filling machine is advanced automated machinery designed for 18.9L bottled drinking water production.It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.
・Integrates washing, filling, capping and cap pulling.
・Suitable for 5-gallon barrels in pure/mineral water production.
・Stable, efficient, hygienic and easy to maintain.
Parameters Table
Model
Filling heads
Volume(L)
Capacity(b/h)
Gas consumption
Moto power (kw)
Weight(kg)
Size(W*L*H)
QGF-100
1
18.9
100
0.37
1.38
680
0.5*4.0*1.5
QGF-300
2
18.9
300
0.6
3.8
1500
0.9*4.0*1.5
QGF-450
3
18.9
450
0.8
5.6
2100
1.3*4.0*1.5
QGF-600
5
18.9
600
1
7.5
3000
1.8*4.0*1.5
QGF-900
6
18.9
900
1.5
9.75
3500
2.4*4.0*1.5
Machine Features
1. It is specially used for filling 1–5 gallon bottled water.
2. It is a good machine line for all bottle shapes of bottles.
3. The machine is designed for bottles such as PVC, PE, PET, etc. It can be used for different shapes of bottles.
4. The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, hot steam film shrinkage machine
top quality line.
5. Filling time is controlled by the PLC.
6. The machine adopts high quality stainless steel frame(No. Z304).
7. The machine design appearance is beautiful, easy to operate, maintain and stable in performance.
FAQ
How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.
How to ensure that I received the machine undamaged?
Our filling machine will bring efficient, accurate, and reliable filling solutions to your production line, enhancing your production efficiency and product quality, and bringing greater success and competitive advantage to your business.
