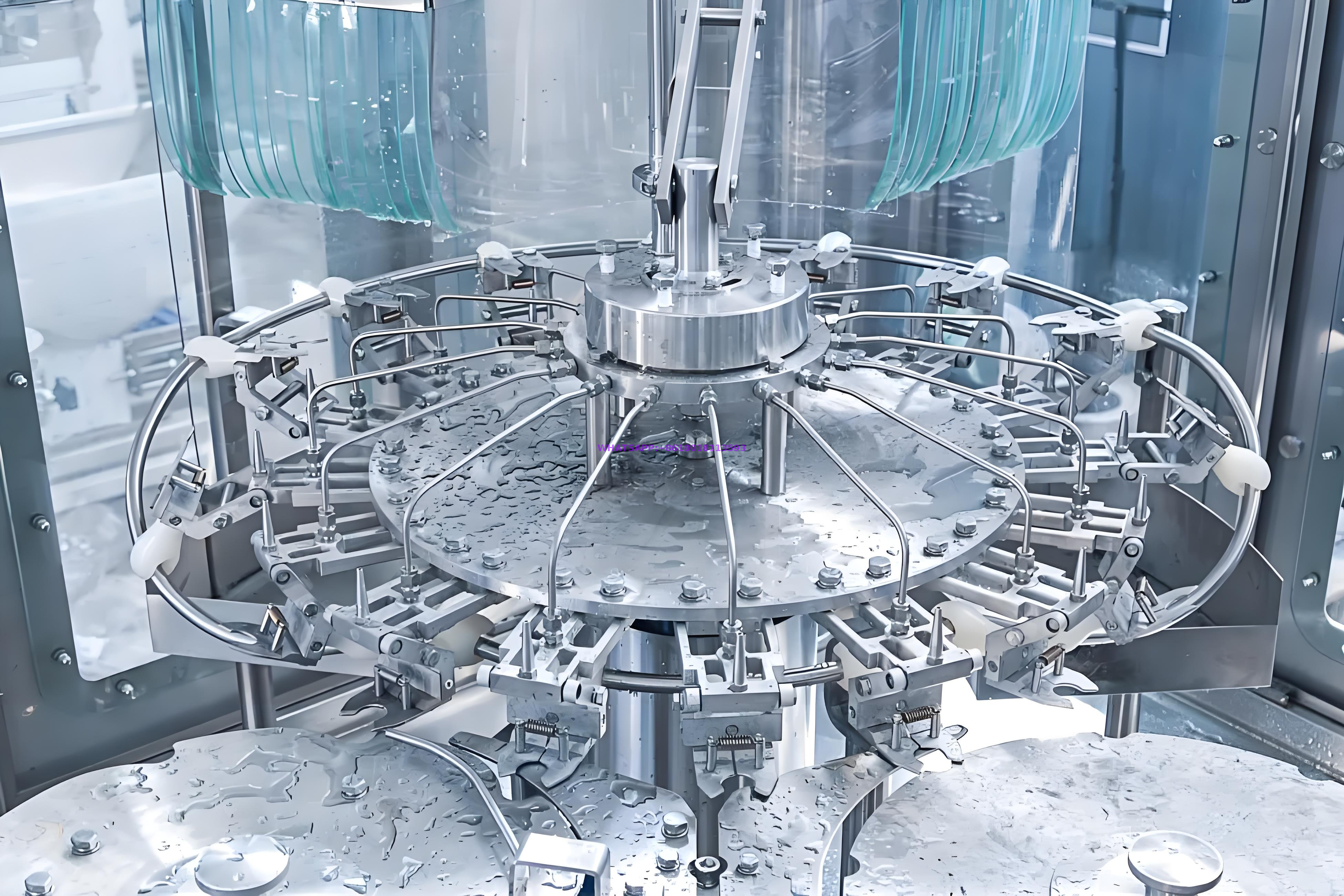

Our 40-head automatic washing, filling and capping machine is advanced automated equipment for pure/mineral water in PET bottles. It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.
・Integrated 3-in-1 design for high efficiency and stability.
・Suitable for 250ml–2L PET bottled drinking water production.
・Easy operation, low maintenance and high automation.
Parameters Table
Model
Bottle diameter
Bottle height
Compressor air pressure
Rinsing pressure
Total power (KW)
Overall dimensions
Weight(kg)
CGF8-8-3
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.3*1.9
2500kg
CGF14-12-4
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.5*1.9
3200kg
CGF18-18-6
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.8*2.15
4000kg
CGF24-24-8
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
5.2
3.1*2.5
4500kg
CGF32-32-10
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
6.2
3.8*2.8
6500kg
CGF40-40-12
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
7.8
4.5*3.3
8000kg
Main feature
1：It adopts air conveyor and starwheel direct connection; screw and chain conveyors are eliminated, making bottle format change easier.
2：Bottle conveying adopts neck-hanging design; no height adjustment needed for changeover, only replacing curved plates, starwheels and nylon parts.
3：Specially designed stainless steel grippers are sturdy and do not touch the threaded part of the bottle mouth, avoiding secondary pollution.
4：Other product name:glass bottle filling machine,flow filling machine,e-liquid filling machine
5：High-speed large-caliber gravity filling valves ensure fast, accurate filling with no liquid leakage.
6：The machine adopts advanced PLC control; key electrical parts are imported from brands like Mitsubishi and Schneider.
7：Bottles discharge in spiral decline; no chain height adjustment needed for bottle changeover.
Machine Features
Blow Moulding Part
A changeable cam for the stretching curve guider guarantees the form quality for different bottle size. Monobloc blowing valves achieve the fastest and most consistent blowing process possible. Bottle necks are protected during blowing stage by a specially designed sealing unit.
Filling Part
Filling valve adopts constant pressure gravity type, filling fast and high accuracy of filling liquid level. It adopts double guide-rod structure.
The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, automatic centralized lubrication; inverter controls main motor speed, stepless variable-frequency speed regulation. The material for the whole platform and frame is carbon steel with stainless steel outside.
The machine is automatically controlled by PLC, fault on line display, like bottle block, cap shortage etc.
Key parts and electrical components are imported.
Capping Part
The capping rotates through reduction box drive rotational wheel, which delivers caps by centrifugal force. There is a separation device for right cap and reverse cap at the entrance, when the reverse cap passes, caps automatically return to the hopper, and blow the reverse cap automatically to hopper through wind power. Only right cap could enter into skids smoothly, cap level in the hopper is automatically detected by electric switch to control cap conveyor, and that ensures best effect of cap down. When the right cap enters into the slide way, it could smoothly enter into cap feed plate, to prevent accidents, there is an anti reverse cap drive plate device to match with slide way, to ensure that the access to the cap feed plate is correct. The slide way is also equipped with a pair of photoelectric switch, when testing no cap, the machine stops immediately. In order to effectively remove non-anti-theft ring bad caps and cleanup additional caps in hopper, there is an active exit in front of the hopper exit can meet this function.
