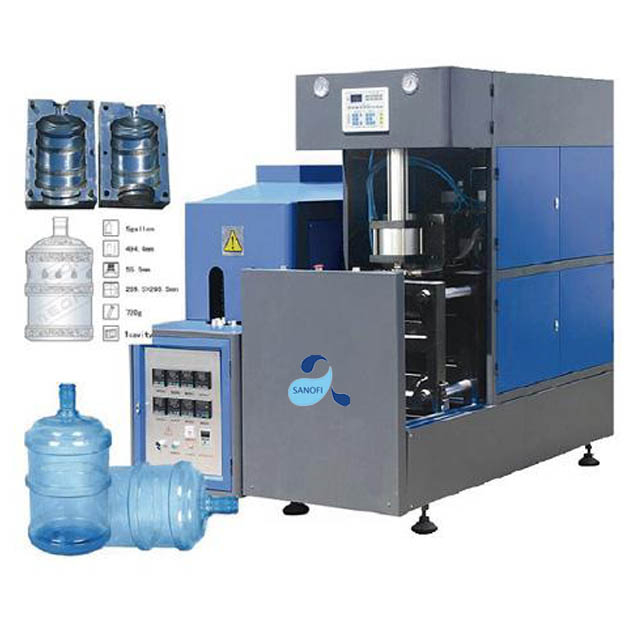

5 Gallon Jar 20L PET Bottle Blowing Machine

This machine can make bottles from 10L to 6gallon bottles.
Availability:
Quantity:
  • SF-Y

  • SANOFI

5 Gallon Jar 20L  PET Bottle Blowing Machine

1). Stable performance with advanced PLC.

2). Automatic preform conveyer to save human cost.

3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.

4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.

5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

6). Introduce the FESTO air cylinder to avoid contamination and noise.

7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

8). Strong clamping force with high pressure and double crank links to lock the mould.

9). Two ways of operating: automatic and manual.

10). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process11). Ideal cooling system make the finished bottles without any flaws

TYPE

ITEM

UNIT

SF-Y

Container

Product material

/

 PET/PC/PE

Container volume

  L

10-25 (1-cavity)

Theoretic output

Psc/hr

5Gallon: 80

Preform length

M

15-460

Preform inner diameter

mm

15-200

  Molding

Max mold plate dimendion (L×W)

mm

420×500

Max mold thickness

mm

400

Clamping force

KN

100

Mold opening stroke

mm

330

Low pressure compressor

m³/Mpa KW

≥0.8/1.25 7.5


Main machine electricity

Power

M

15

Voltage / frequency

V/Hz

380-240-110/50-60(3 phase)

  Machine size and weight

Main machine

m

1.55×0.82×2.00

Main machine weight

T

1

Heater (L×W×H)

T

2.42×0.65×1.60

Heater weight

T

0.38

 5加仑吹瓶机半自动5加仑吹瓶机4
