Our automatic pure water filling machine is advanced automated equipment for PET bottles of 350ml and other sizes.It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.
・Integrated washing, filling and capping design for high efficiency.
・Suitable for pure water, mineral water and drinking water production.
・Stable performance, easy operation and high automation.
Parameters Table
Model
Bottle diameter
Bottle height
Compressor air pressure
Rinsing pressure
Total power (KW)
Overall dimensions
Weight(kg)
CGF8-8-3
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.3*1.9
2500kg
CGF14-12-4
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.5*1.9
3200kg
CGF18-18-6
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.8*2.15
4000kg
CGF24-24-8
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
5.2
3.1*2.5
4500kg
CGF32-32-10
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
6.2
3.8*2.8
6500kg
CGF40-40-12
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
7.8
4.5*3.3
8000kg
Main feature
1：It adopts air conveyor and starwheel direct connection; screw and chain conveyors are eliminated, making bottle format change easier.
2：Bottle conveying adopts neck-hanging technology; no height adjustment is needed for format change, only curved plates, starwheels and nylon parts.

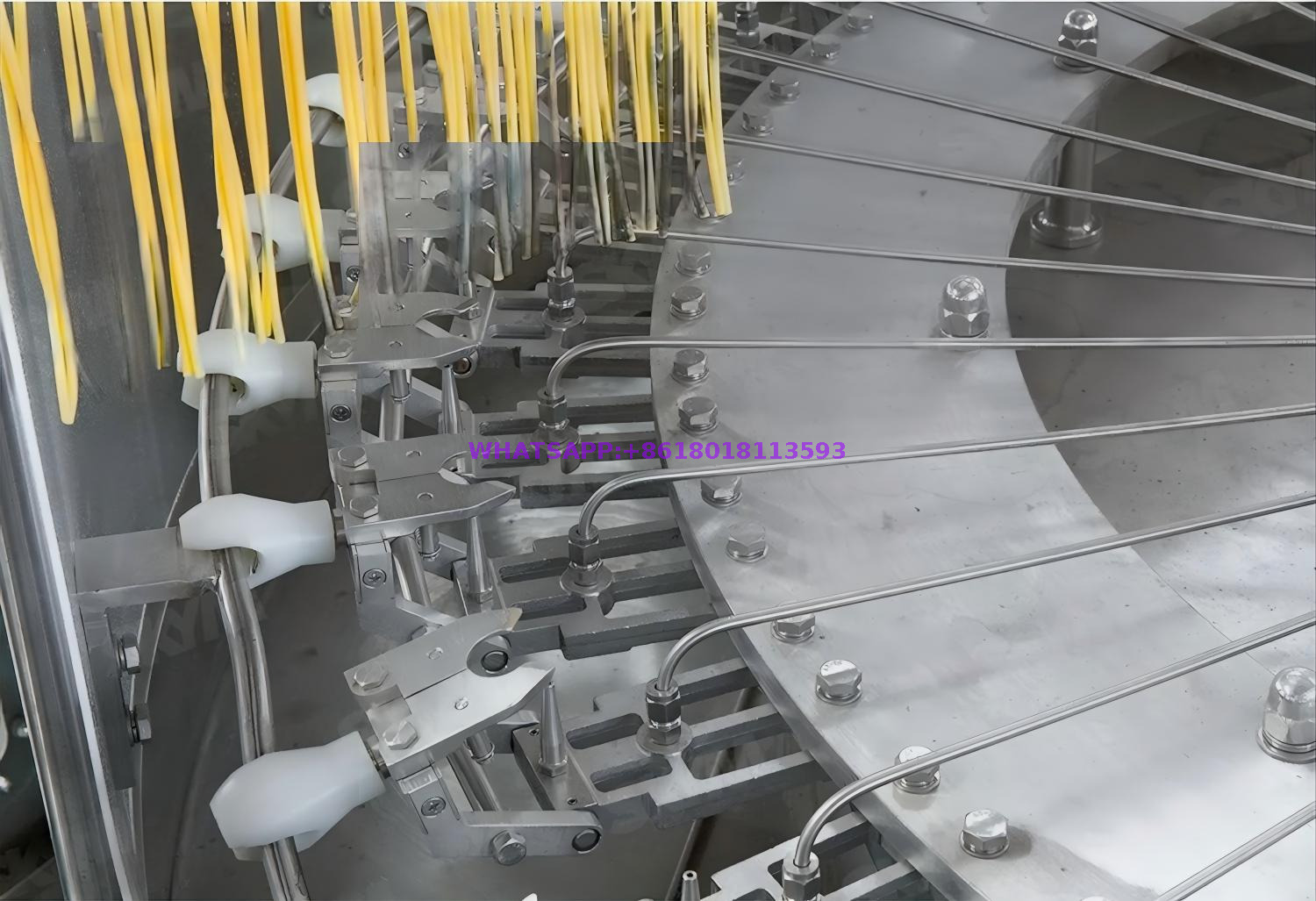

3：Specially designed stainless steel grippers are sturdy and durable, with no contact on the threaded part to avoid secondary pollution.
4：Other product name:glass bottle filling machine,flow filling machine,e-liquid filling machine
5：High-speed large-caliber gravity filling valves ensure fast, accurate filling with no liquid leakage.
6：The machine adopts advanced PLC control; key electrical parts are imported from well-known brands such as Mitsubishi and Schneider.
7：Bottles decline spirally; no chain height adjustment is needed for bottle changeover.
Machine Features
Blow Moulding Part
A changeable cam for the stretching curve guider guarantees the form quality for different bottle size. Monobloc blowing valves achieve the fastest and most consistent blowing process possible. Bottle necks are protected during blowing stage by a specially designed sealing unit.

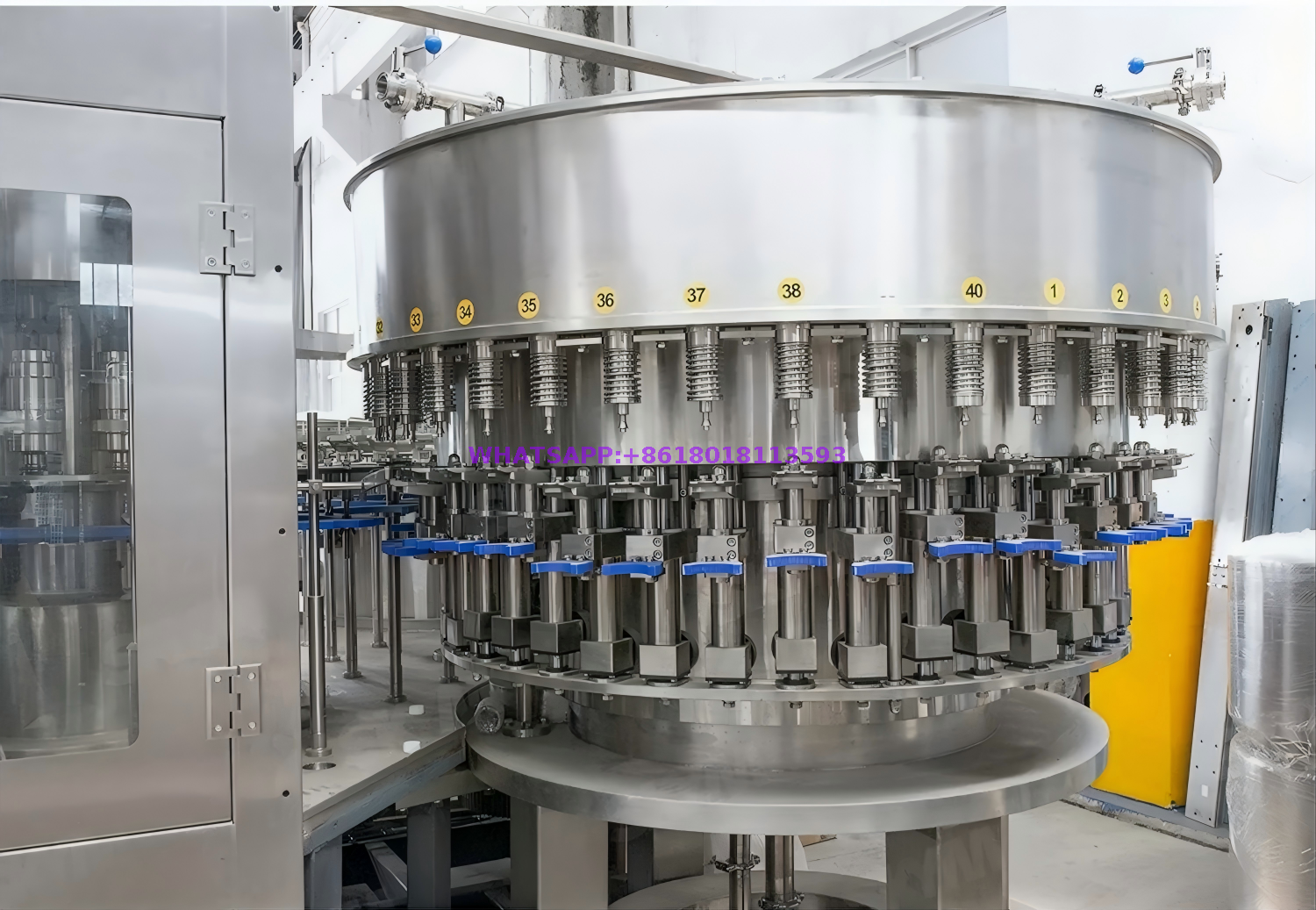

Filling Part

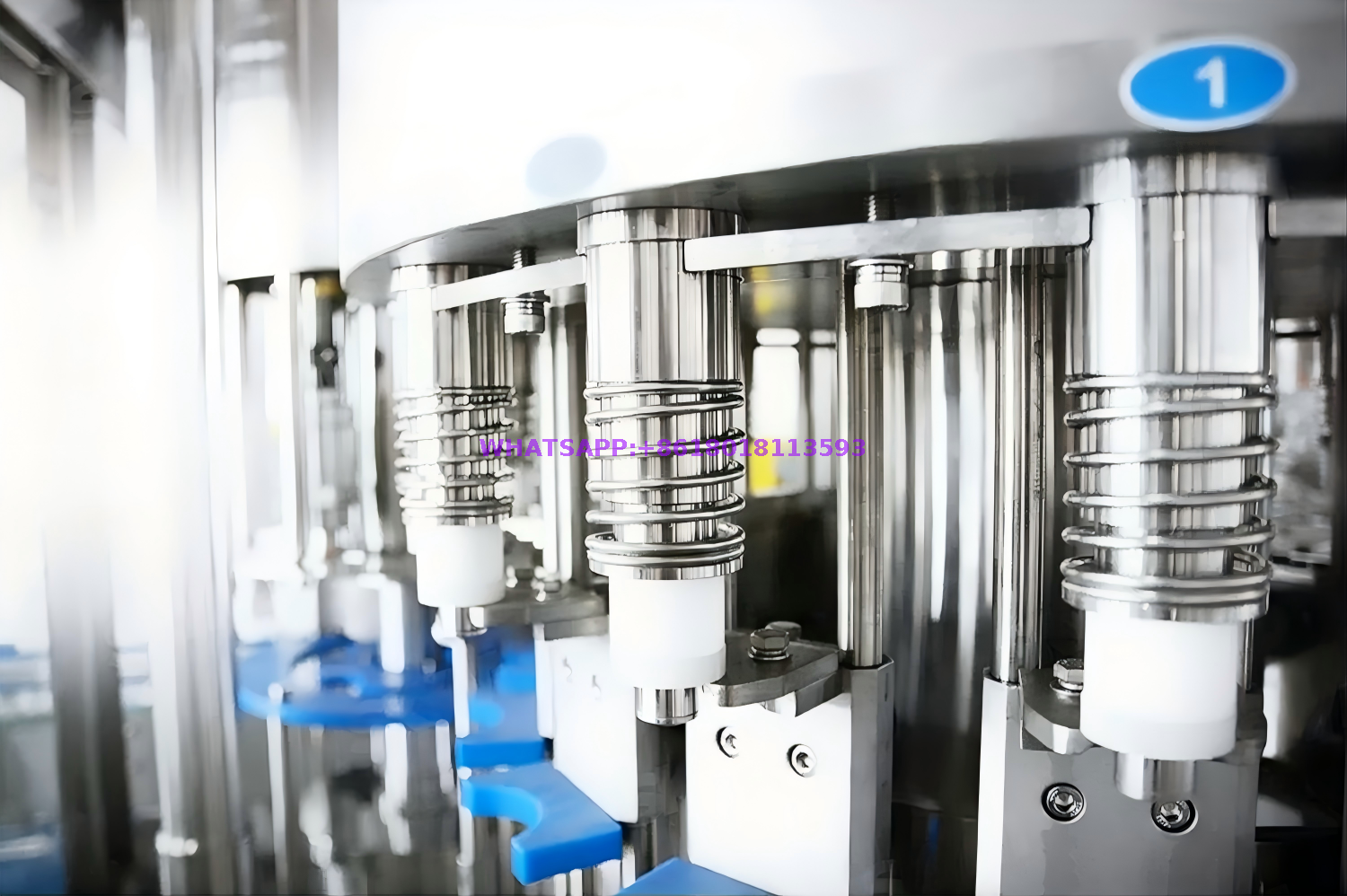

Filling valve adopts constant pressure gravity type, filling fast and high accuracy of filling liquid level. It adopts a double-guide-rod structure.
The main drive uses gear transmission for high efficiency, low noise, long service life and easy maintenance; it features automatic centralized lubrication, adopts an inverter for main motor speed control, The machine adopts stepless variable-frequency speed regulation. The material for the whole platform and frame is carbon steel with stainless steel outside.
The machine is automatically controlled by PLC, fault on line display, like bottle block, cap shortage etc.
Key parts and electrical components are imported.

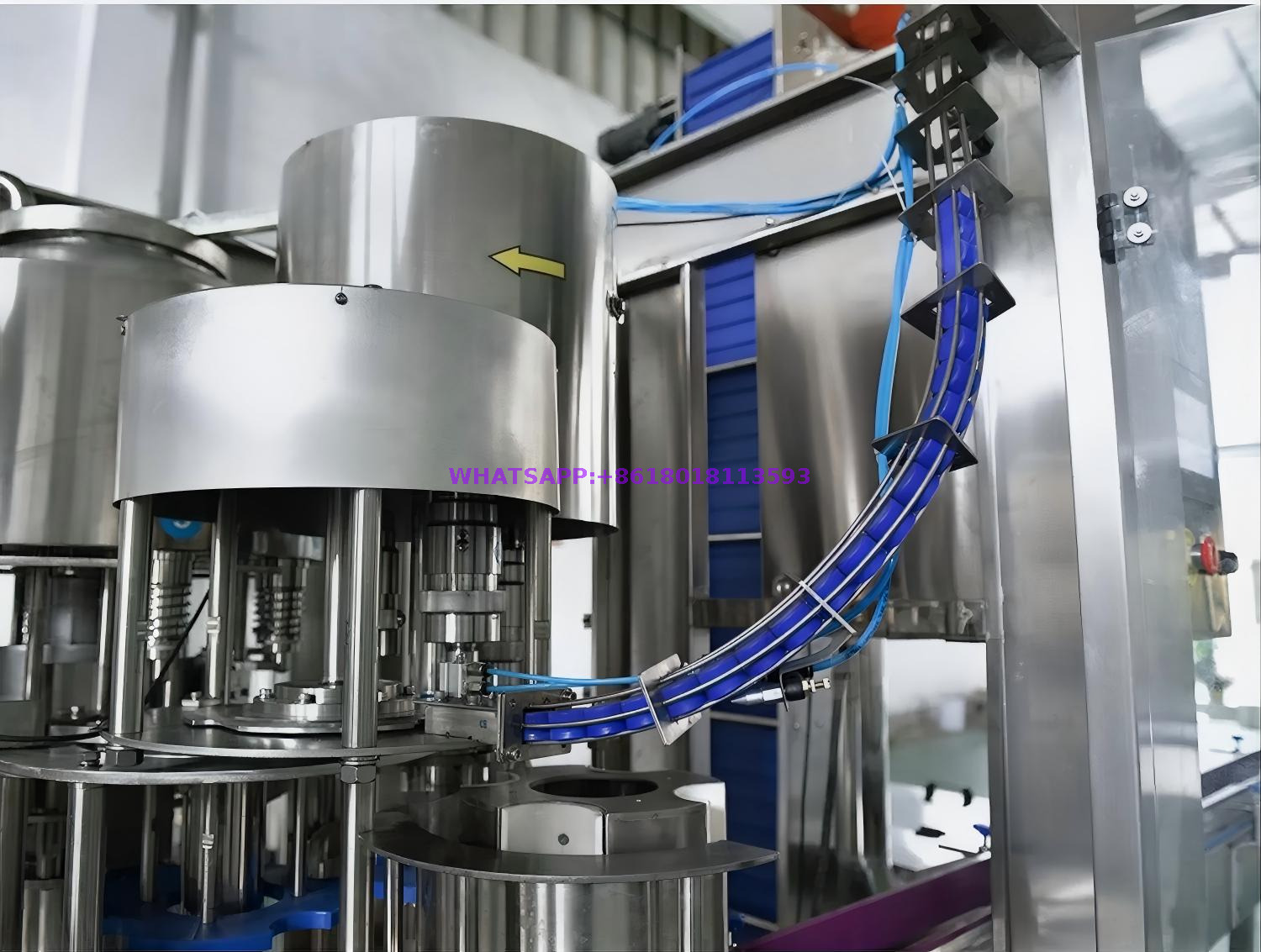

Capping Part
The capping system uses a gearbox to drive the rotary cap wheel, which sends caps out of the hopper by centrifugal force. A cap sorting device separates upright and inverted caps; inverted caps are automatically returned to the hopper., and blow the reverse cap automatically to hopper through wind power. Only right cap could enter into skids smoothly, Cap level in the hopper is automatically detected by an electric switch to control the cap elevator., and that ensures best effect of cap down. When the right cap enters into the slide way, it could smoothly enter into cap feed plate, to prevent accidents, there is an anti reverse cap drive plate device to match with slide way, to ensure that the access to the cap feed plate is correct. The slide way is also equipped with a pair of photoelectric switch, when testing no cap, the machine stops immediately. In order to effectively remove non-anti-theft ring bad caps and cleanup additional caps in hopper, there is an active exit in front of the hopper exit can meet this function.
Our filling machine will bring efficient, accurate, and reliable filling solutions to your production line, enhancing your production efficiency and product quality, and bringing greater success and competitive advantage to your business.
