Our filling machine is advanced automated equipment designed for filling and packaging various liquid products. It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.
・Uses high-precision metering system to fill liquid into containers accurately.
・Suitable for mineral water, fruit juice, tea and other beverage filling and packaging.
・Completes rinsing, filling and capping processes through automated control.
Parameters Table
Model
Bottle diameter
Bottle height
Compressor air pressure
Rinsing pressure
Total power (KW)
Overall dimensions
Weight(kg)
CGF8-8-3
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.3*1.9
2500kg
CGF14-12-4
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.5*1.9
3200kg
CGF18-18-6
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.8*2.15
4000kg
CGF24-24-8
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
5.2
3.1*2.5
4500kg
CGF32-32-10
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
6.2
3.8*2.8
6500kg
CGF40-40-12
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
7.8
4.5*3.3
8000kg
Main feature

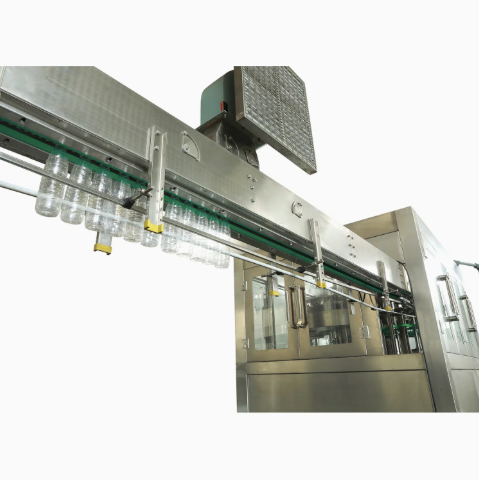

1：It adopts air conveyor and direct wheel connection. Screws and conveyor chains are removed, which makes bottle format change easier.
2：Bottle transmission adopts neck-hanging conveying design. Changing bottle shapes requires no height adjustment; only replace related curved guides, wheels and nylon parts.
3：The specially designed stainless steel rinsing gripper is solid and durable. It does not touch the threaded part of the bottle mouth to avoid secondary pollution.
4：Other product names: glass bottle filling machine, gravity flow filling machine
5：High-speed gravity flow filling valves fill quickly and accurately with nno liquid leakage.
6：The machine adopts advanced PLC control. Key electrical parts are from famous brands such as Mitsubishi (Japan) and Schneider (France).
7：Bottles are discharged by spiral decline. Changing bottle shapes requires no adjustment to conveyor height.
Machine Features
Blow Moulding Part
A changeable cam for the stretching curve guider guarantees the form quality for different bottle size. Monobloc blowing valves achieve the fastest and most consistent blowing process possible. Bottle necks are protected during blowing stage by a specially designed sealing unit.

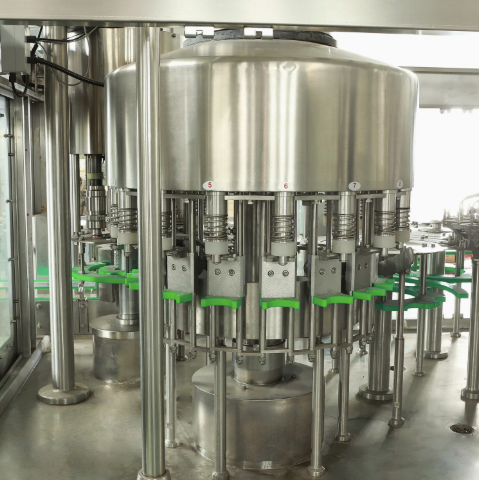

Filling Part

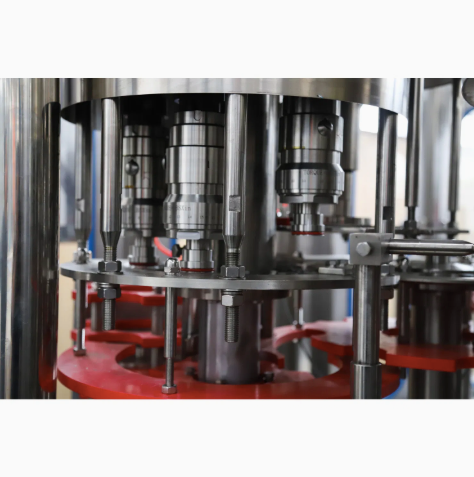

Filling valves adopt constant-pressure gravity design, filling quickly and accurately. It adopts a double guide-rod structure.
The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, automatic centralized lubrication, adopts inverter controls the speed of main motor to control, the machine adopts stepless variable-frequency speed regulation. The material for the whole platform and frame is carbon steel with stainless steel outside.
The machine is automatically controlled by PLC, online fault display, like bottle jams, cap shortages, etc.
Key parts and electrical components are imported brands.
Capping Part

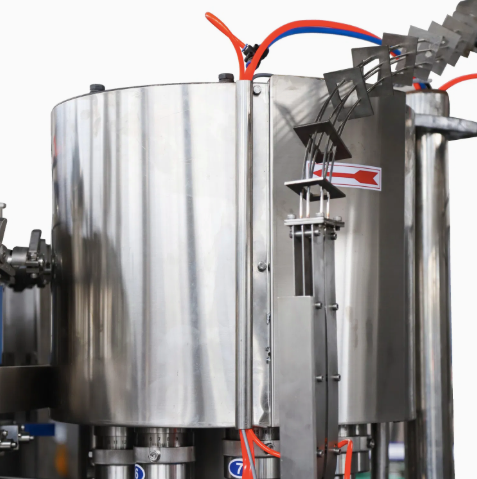

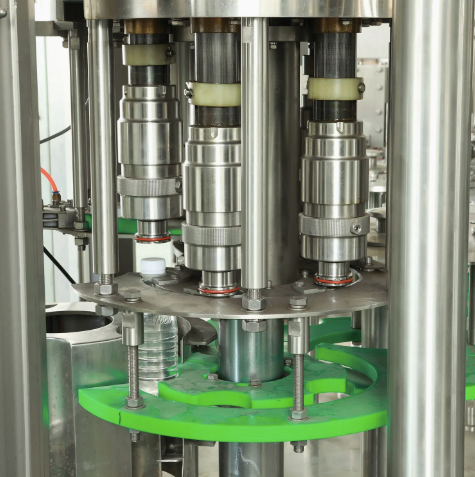

The capping rotates through gearbox-driven capping wheel, which makes caps leave the hopper by centrifugal force.There is a separation device for right cap and reverse cap at the entrance, when the reverse cap passes, the caps automatically return and return to pipeline, and blow the reverse cap automatically to hopper through wind power. Only right cap could enter into skids smoothly, cap level in the hopper is automatically detected by photoelectric sensor to control cap conveyor, and that ensures best effect of cap down. When the right cap enters into the slide way, it could smoothly enter into cap feed plate, to prevent accidents, there is an anti reverse-cap guide plate to match with slide way, to ensure that the access to the cap feed plate is correct. The slide way is also equipped with a pair of photoelectric sensors, when no caps are detected, the main machine stops immediately. In order to effectively remove defective caps without anti-theft rings and cleanup additional caps in hopper, there is an manual discharge port in front of the hopper exit can meet this function.
Our filling machine will bring efficient, accurate, and reliable filling solutions to your production line, enhancing your production efficiency and product quality, and bringing greater success and competitive advantage to your business.
