8000BPH Automatic Beer Glass Bottle Production Line

Our filling machine is advanced automated equipment designed for beer, wine and beverage filling and packaging.It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.

・Uses high-pressure air to create hollow plastic containers.

・Suitable for beverage bottles, personal care product containers, and household cleaning product bottles.

・Shapes containers through blowing process.

库存： 0

Inquire

Add to Basket

8000BPH Automatic Beer Glass Bottle Production Line

Parameters Table

Model

Production capacity

Suitable bottle height

Total Power(kw)

Overall dimension

Weight

BGF16-12-6

1500-2500

H=170-320,D=50-100

1.5+0.37

2300*1680*2650

2600 kg

BGF18-18-6

2500-4500

H=170-320,D=50-100

2.2+0.37

2500*1760*2650

3500 kg

BGF24-24-8

4500-6000

H=170-320,D=50-100

3+0.45+0.25

3100*2100*2650

4650 kg

BGF32-32-8

6000-8000

H=170-320,D=50-100

5.5

3800*2800*2650

6800 kg

BGF40-40-10

8000-9000

H=170-320,D=50-100

7.5

4000*3300*3400

8500 kg

This beer bottling machine is mainly used for beer filling. It integrates rinsing, filling and capping.

Features of filling machinery:

The whole process is fully automatic and suitable for glass bottles, crown caps and aluminum anti-theft caps for vodka and wine filling. Bottle types can be adjusted freely and conveniently. This gives the machine higher capacity and efficiency compared with other machines of the same specification.The machine adopts advanced PLC control for fully automatic operation. The bottle inlet conveyor uses an adjustable-speed inverter, and the bottle outlet conveyor uses an adjustable-speed motor. Coordination with the main machine inverter ensures smooth and stable bottle conveying.Photoelectric detection monitors each part of the machine for safe, reliable and easy operation. This machine is the ideal choice for beverage manufacturers.

Technical features

1：Filling valves adopt high-precision mechanical filling valve with no-bottle, no-filling & vacuum function

2：External mechanical structure; no spring inside the valve

3：There are two times of vacuumizing, equipped with a high-pressure foam suppression device

4：Driving adopts an open-type gear combination; supports stepless frequency speed control

5：This machine is equipped with an automatic lubrication device

6：The product level in the filling tank is controlled by electric probe to keep stable level and reliable filling.

7：Adopt PLC control.

The beer bottling machine represents a remarkable leap forward in automating the beer dispensing process. Crafted with meticulous precision and engineering expertise, this state-of-the-art equipment streamlines the production line, ensuring a seamless flow of beer from the keg or tank directly into the awaiting glasses. With its advanced features and intelligent design, the automatic beer glass filler has become an indispensable tool for breweries and bars seeking to enhance their operational efficiency.

One of the key advantages of the automatic beer glass filling machine is its ability to handle large volumes of beer with remarkable speed and accuracy. Equipped with innovative technologies such as high-speed filling valves and precise measurement systems, this machine can swiftly fill multiple glasses simultaneously, minimizing downtime and maximizing productivity. The automated process ensures consistent pour levels, minimizing variations between servings and guaranteeing an exceptional drinking experience for every customer.

Beyond its efficiency, the automatic beer glass filler places a strong emphasis on maintaining the beer's quality and preserving its taste. By employing advanced sealing mechanisms, the machine minimizes the contact between the beer and external factors, such as oxygen and contaminants. This hermetic environment ensures the beer's freshness remains intact, allowing consumers to enjoy the full flavors and aromas intended by the brewer. Additionally, the machine's self-cleaning functionality ensures optimal hygiene and minimizes the risk of cross-contamination between different brews.

The automatic beer glass filling machine has revolutionized the beer dispensing process, offering breweries and beverage establishments unparalleled efficiency, precision, and quality control. With its ability to handle high volumes, maintain beer freshness, and adapt to various glassware, this advanced equipment is an indispensable asset for modern-day breweries seeking to meet the demands of an ever-evolving market. By investing in an automatic beer glass filler, businesses can streamline their operations, deliver consistent pours, and elevate the overall beer-drinking experience.

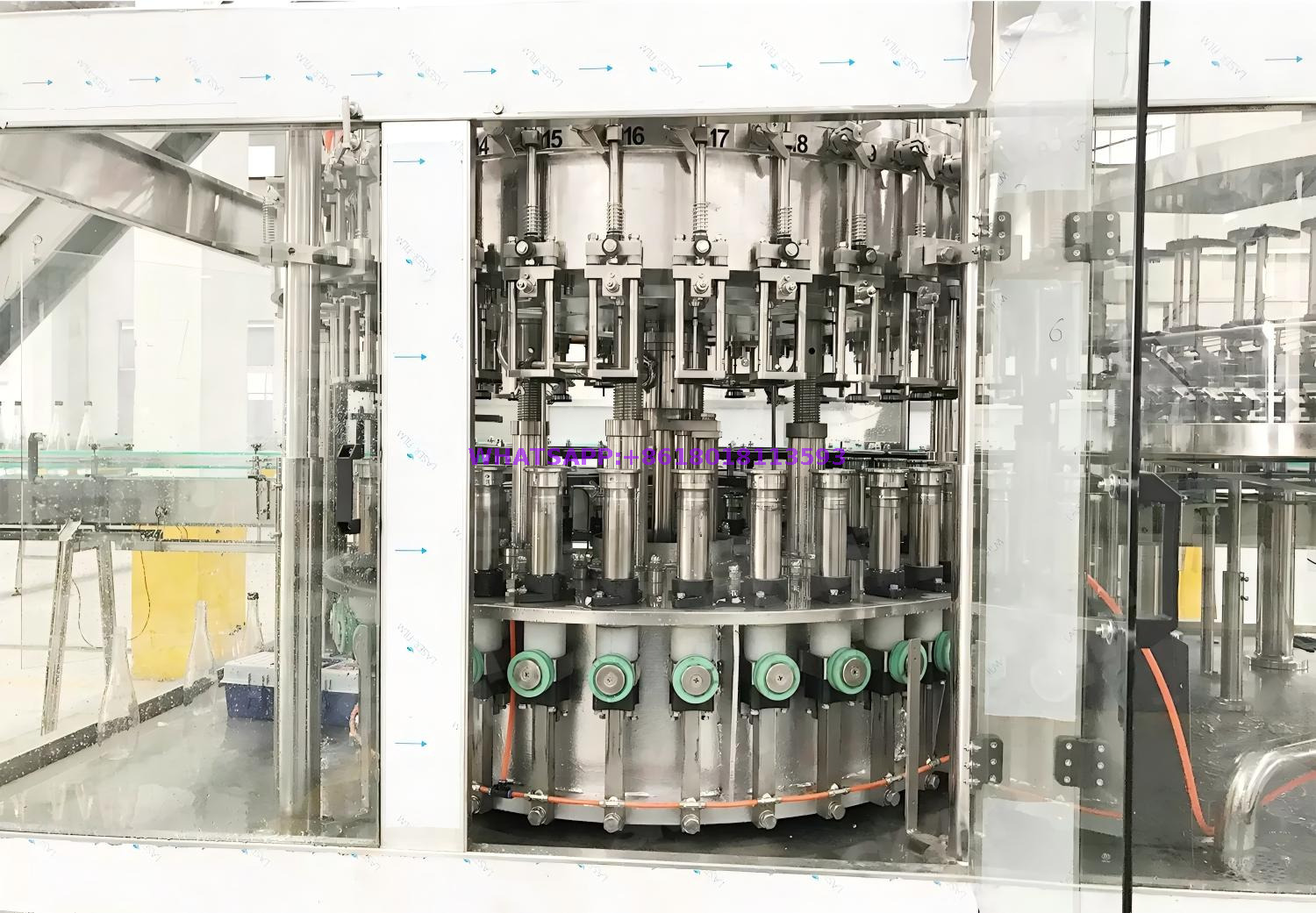

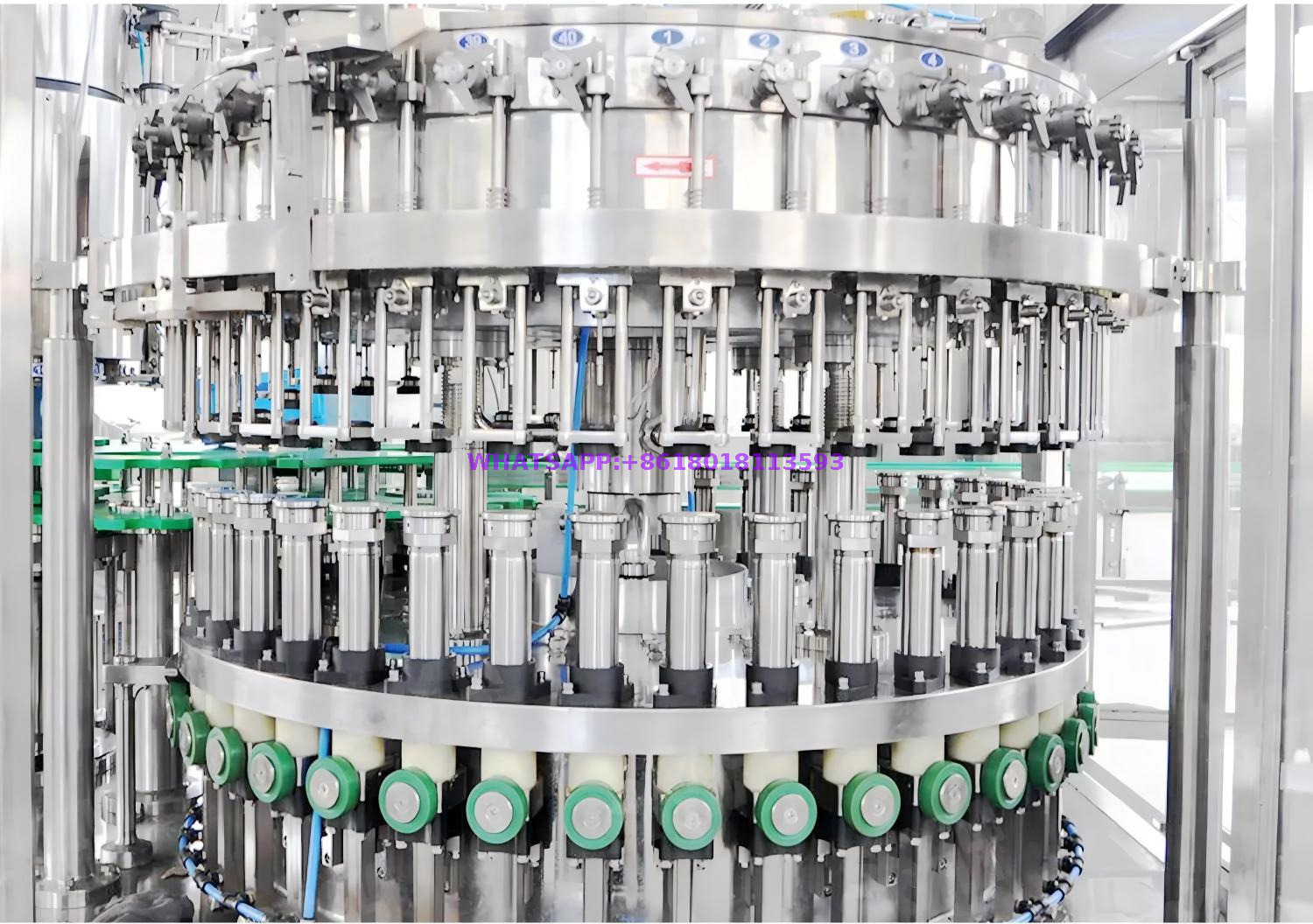

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

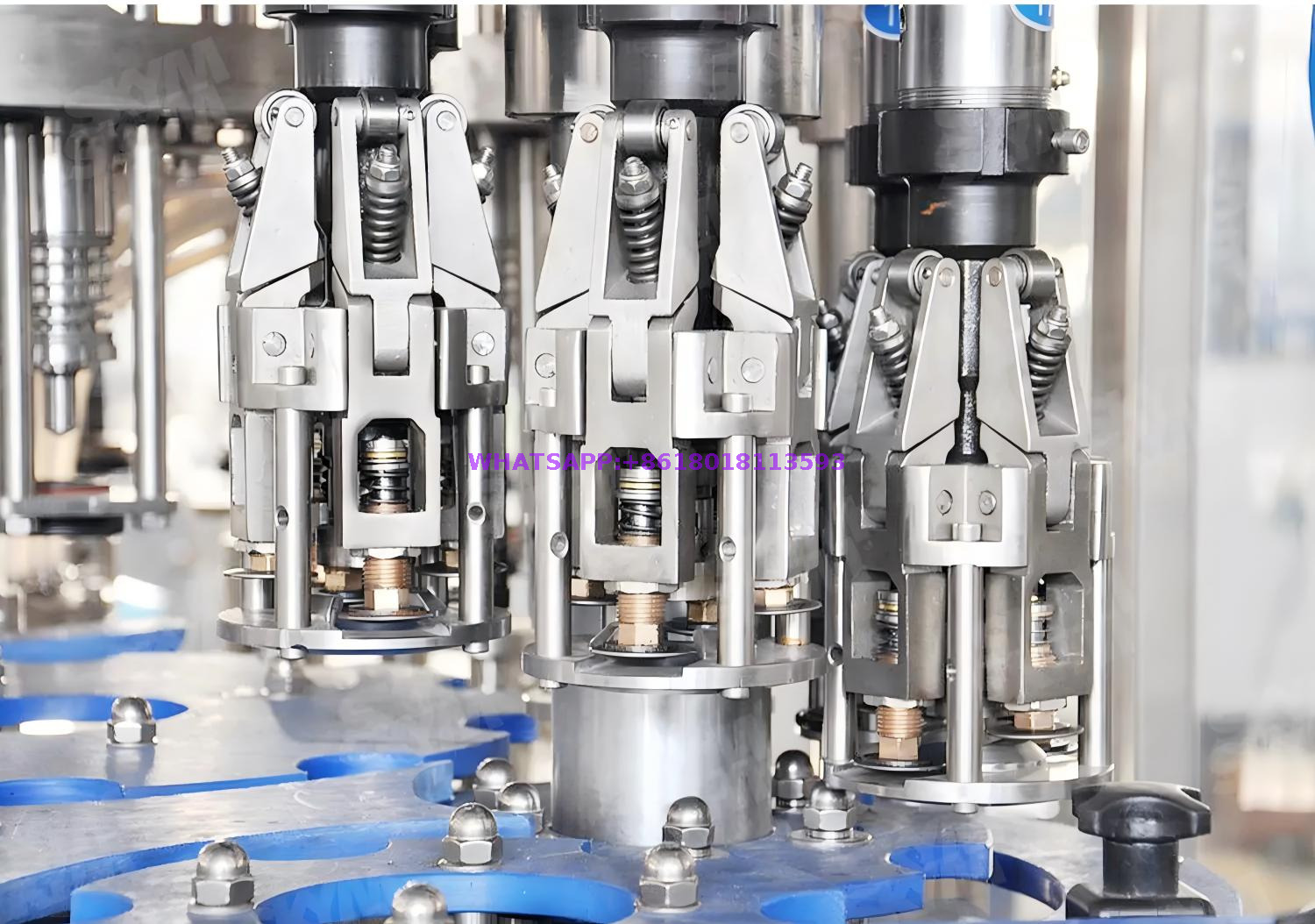

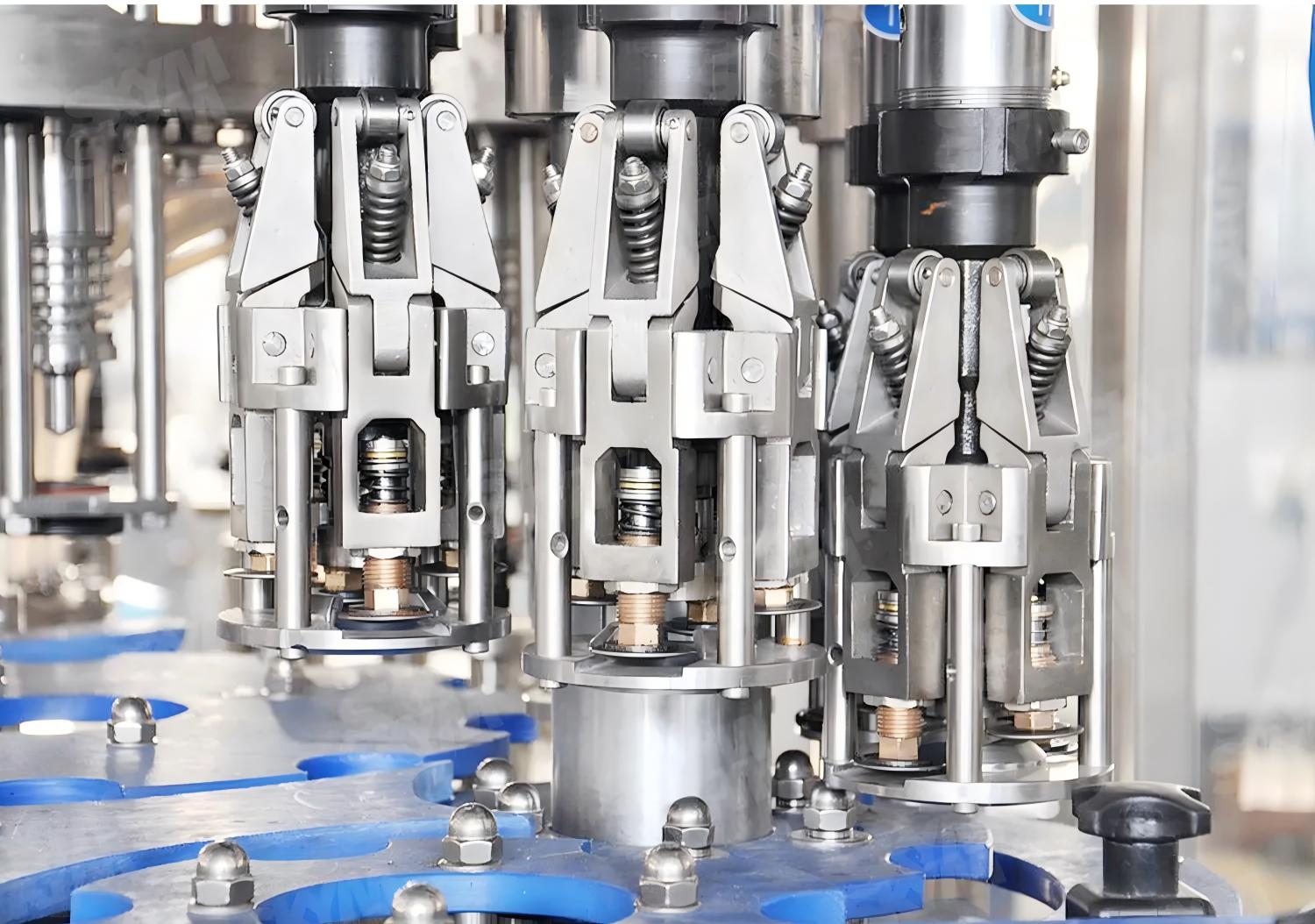

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Machine Features

Filling Parts.

1：304/316 Stainless steel high precision filling nozzle

2： Filling volume is finely adjustable for consistent liquid levels

3：All 304/316 stainless steel contact parts & liquid tank, fine polish, no dead corners, easy to clean

4：304/316 stainless steel filling pump

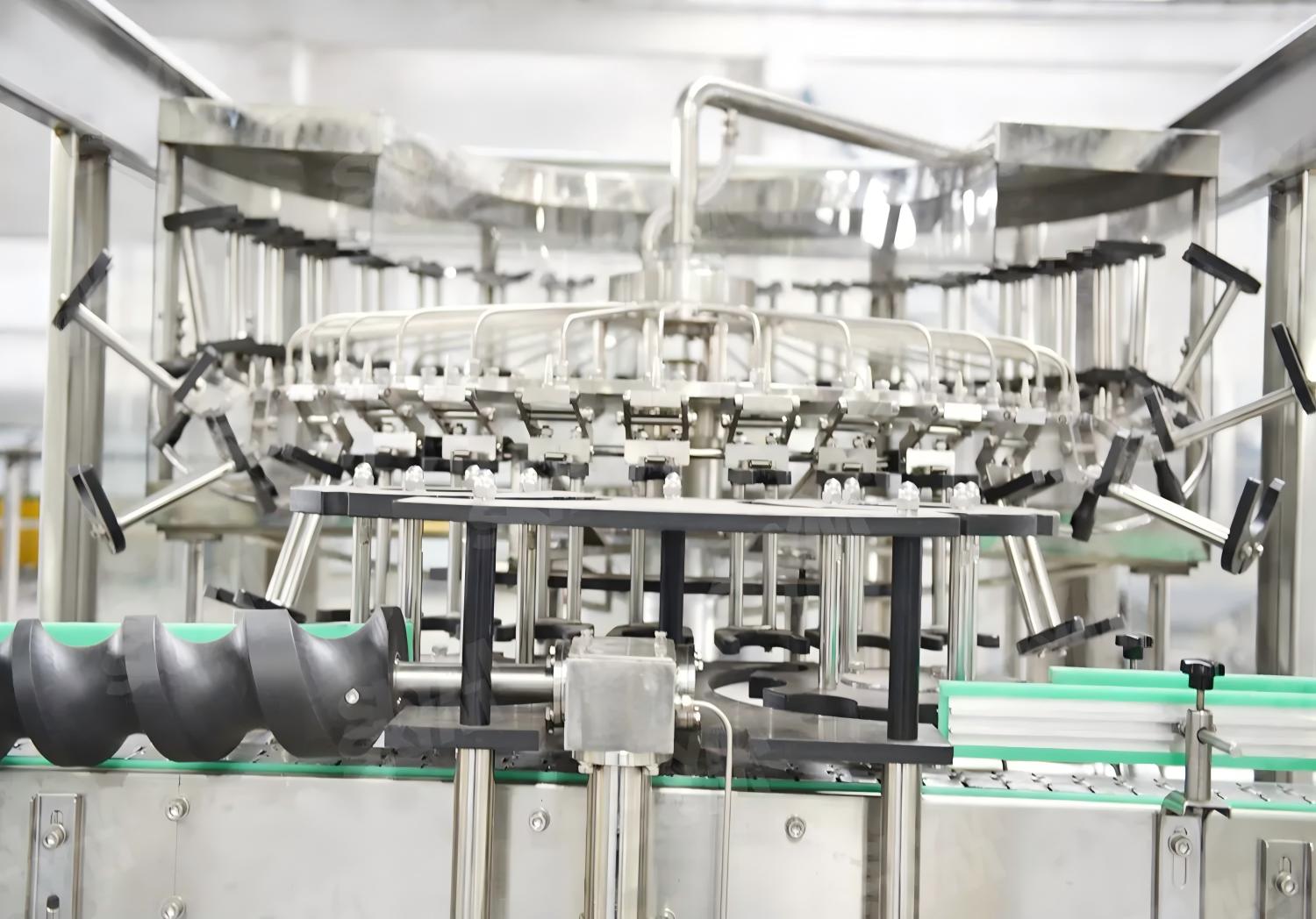

5：Efficient nozzles provide thorough rinsing and water saving

Capping Parts.

1： Pressing capping system, electromagnetic capping heads with automatic discharge function to minimize bottle collision

2： All 304/316 stainless steel construction

3：No bottle no capping

4：Automatic stop when lack of bottle

5：Capping effect is stable and reliable, Defect rate ≤ 0.2%

Machine Features

Improved Production Efficiency

Can filling machinery utilizes automated operations to quickly and accurately complete the filling tasks, significantly enhancing production efficiency. Compared to manual operations, the machine can perform continuous filling at a higher speed, reducing the need for manual intervention and saving time and labor resources.
Cost Savings

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.
Energy Saving

Modern canning machinery typically uses energy-saving technologies and environmentally friendly materials to reduce energy consumption and environmental impact.
