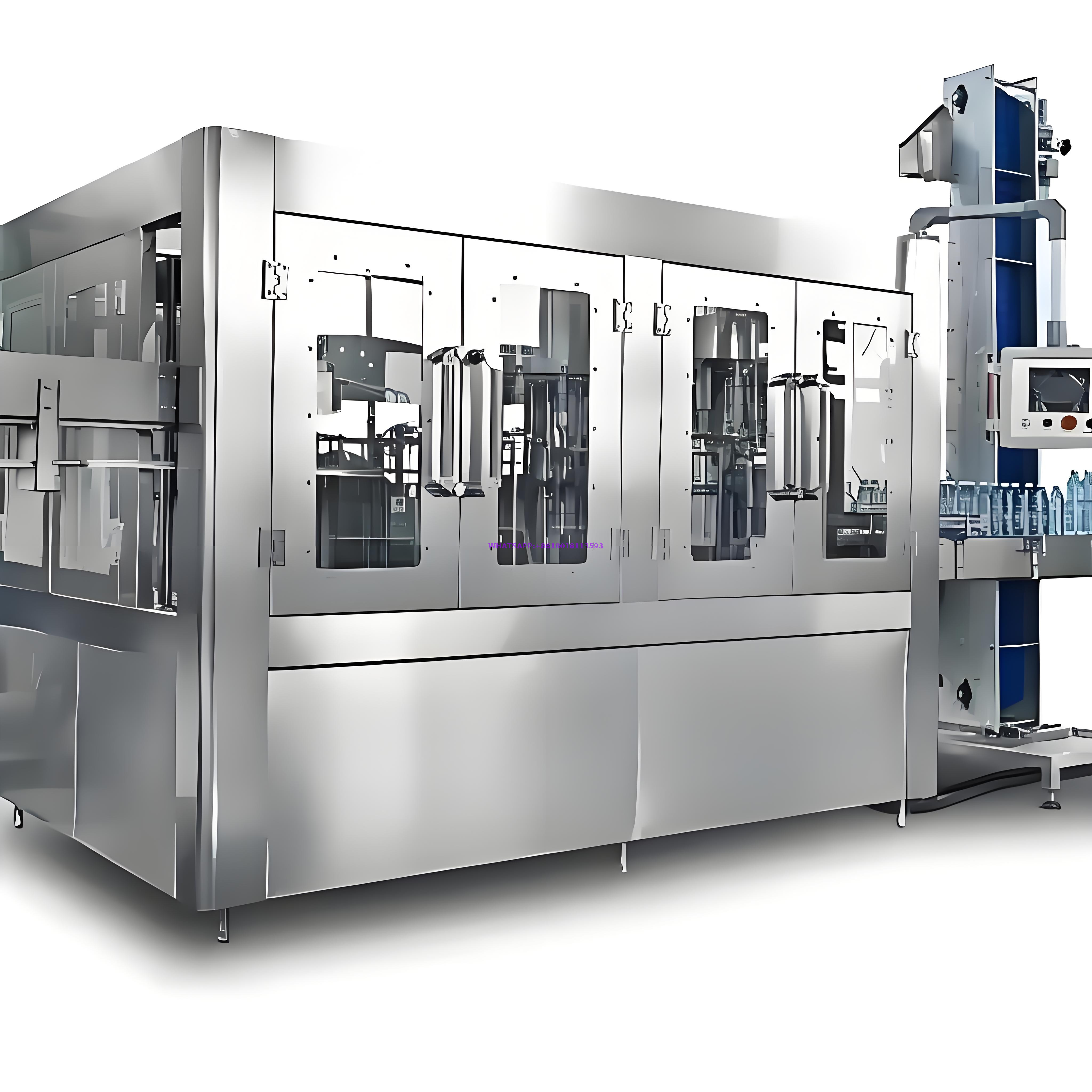

Our automatic 5L large plastic bottle water filling machine is advanced automated equipment for pure water, mineral water and drinking water. It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.

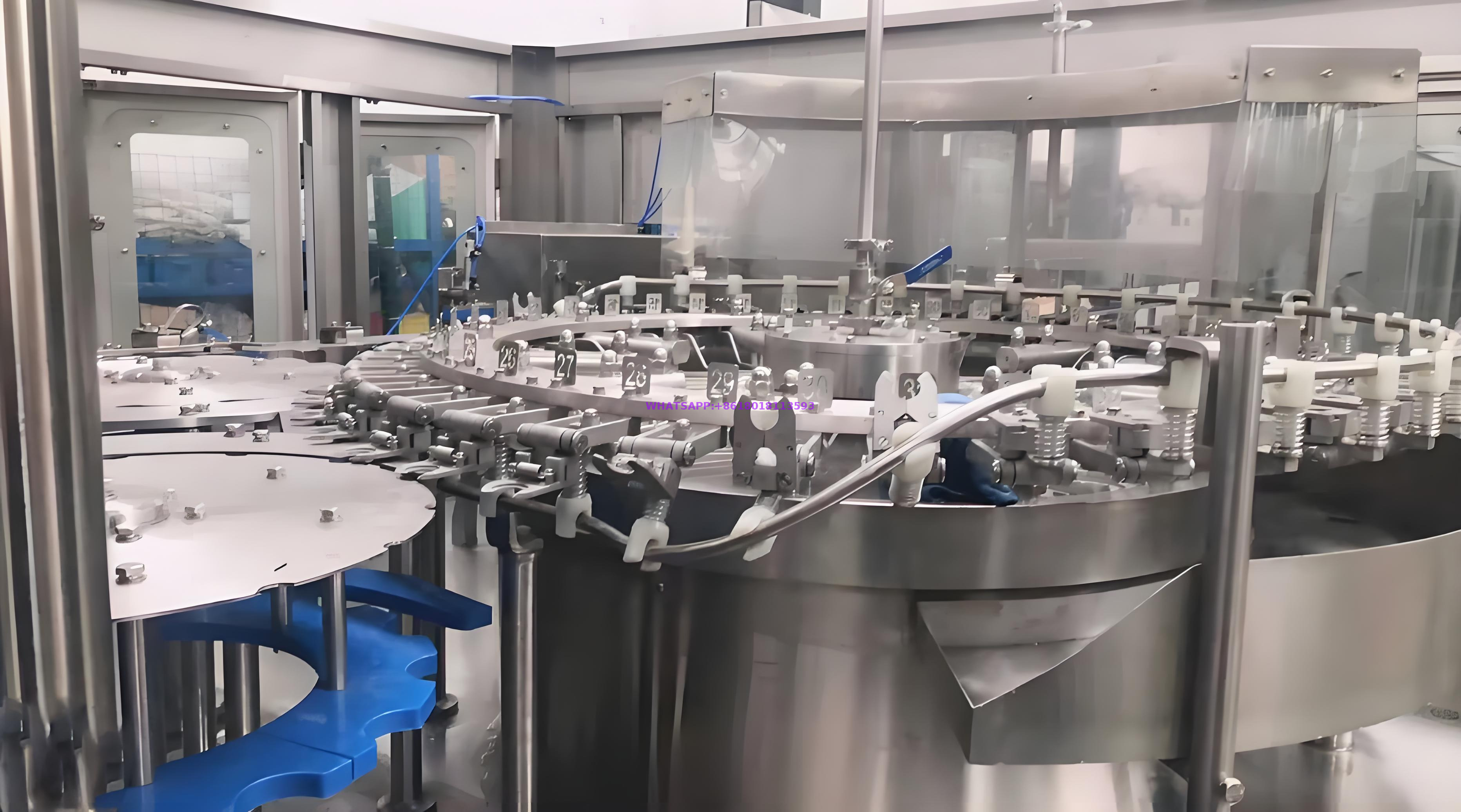

・Integrated washing, filling and capping design for high efficiency.
・Suitable for 3L–5L large-caliber PET plastic bottles.
・Stable performance, easy operation and high automation.
Parameters Table
Model
Bottle diameter
Bottle height
Compressor air pressure
Rinsing pressure
Total power (KW)
Overall dimensions
Weight(kg)
CGF8-8-3
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.3*1.9
2500kg
CGF14-12-4
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.5*1.9
3200kg
CGF18-18-6
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
4.4
2.8*2.15
4000kg
CGF24-24-8
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
5.2
3.1*2.5
4500kg
CGF32-32-10
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
6.2
3.8*2.8
6500kg
CGF40-40-12
Dia50-Dia115mm
160-320mm
0.3-0.7Mpa
>0.06Mpa<0.2Mpa
7.8
4.5*3.3
8000kg
Main feature
1：Using the wind sent access and move wheel in the bottle directly connected technology;Canceled screw and conveyor chains,this enable the change the bottle-shaped become easier.
2：Bottle conveying adopts neck-hanging technology; no height adjustment is needed for format change, only curved plates, starwheels and nylon parts.

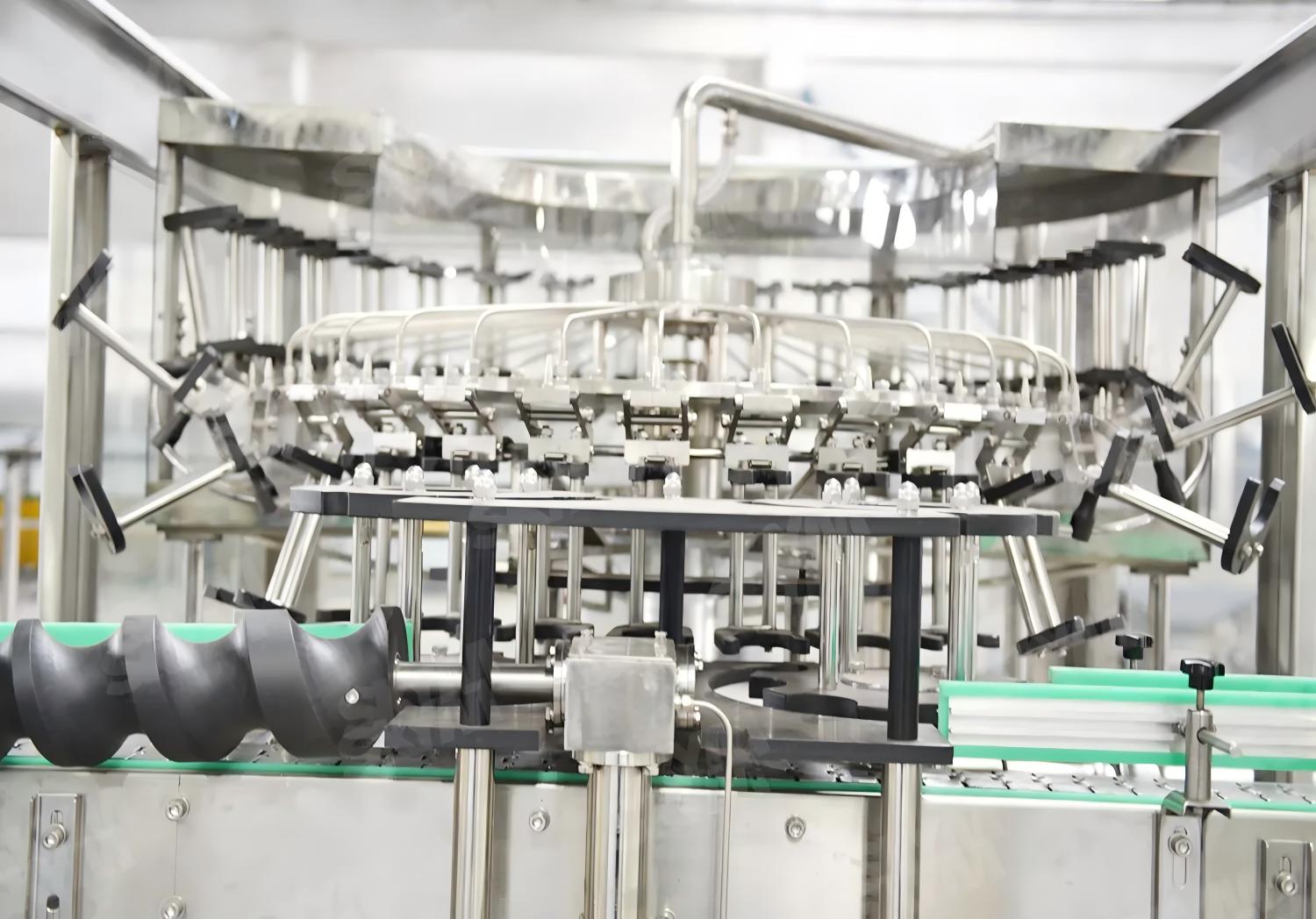

3：Specially designed stainless steel grippers are sturdy and durable, with no contact on the threaded part to avoid secondary pollution.
4：Other product name:glass bottle filling machine,flow filling machine,e-liquid filling machine
5：High-speed large-caliber gravity filling valves ensure fast, accurate filling with no liquid leakage.
6：The machine adopts advanced PLC control; key electrical parts are imported from well-known brands such as Mitsubishi and Schneider.
7：Bottles decline spirally; no chain height adjustment is needed for bottle changeover.
Machine Features
Blow Moulding Part
A changeable cam for the stretching curve guider guarantees the form quality for different bottle size. Monobloc blowing valves achieve the fastest and most consistent blowing process possible. Bottle necks are protected during blowing stage by a specially designed sealing unit.
Filling Part

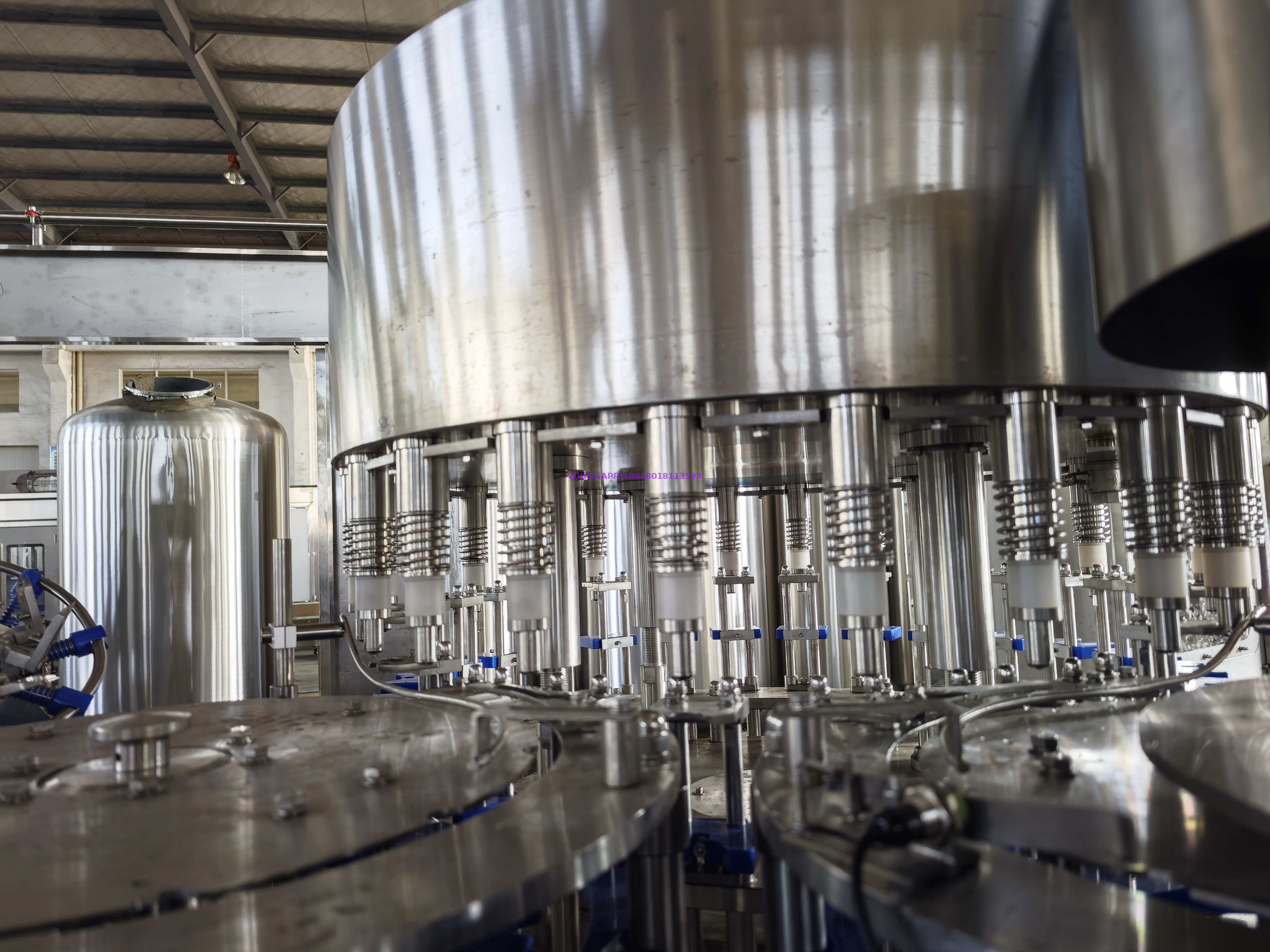

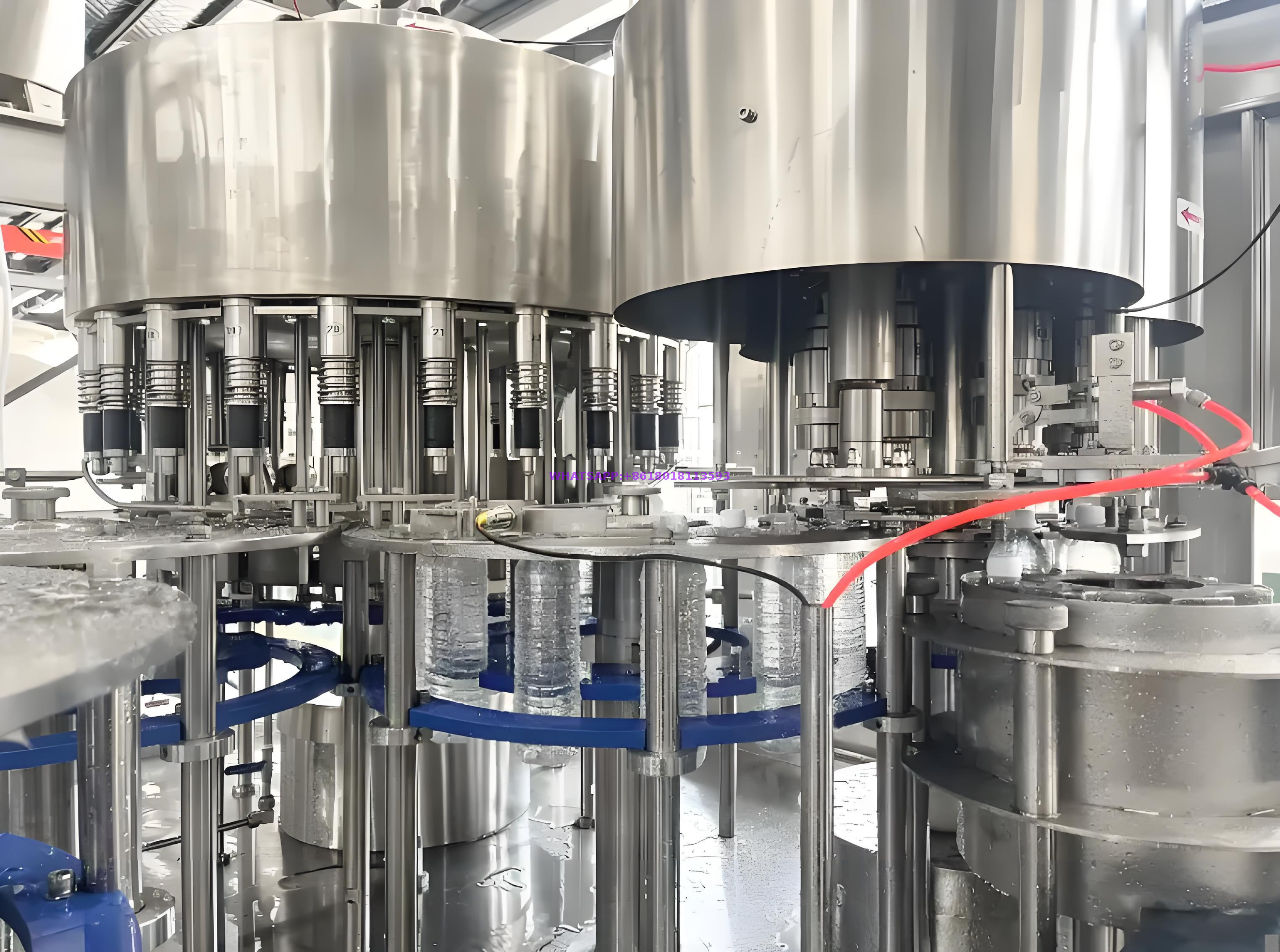

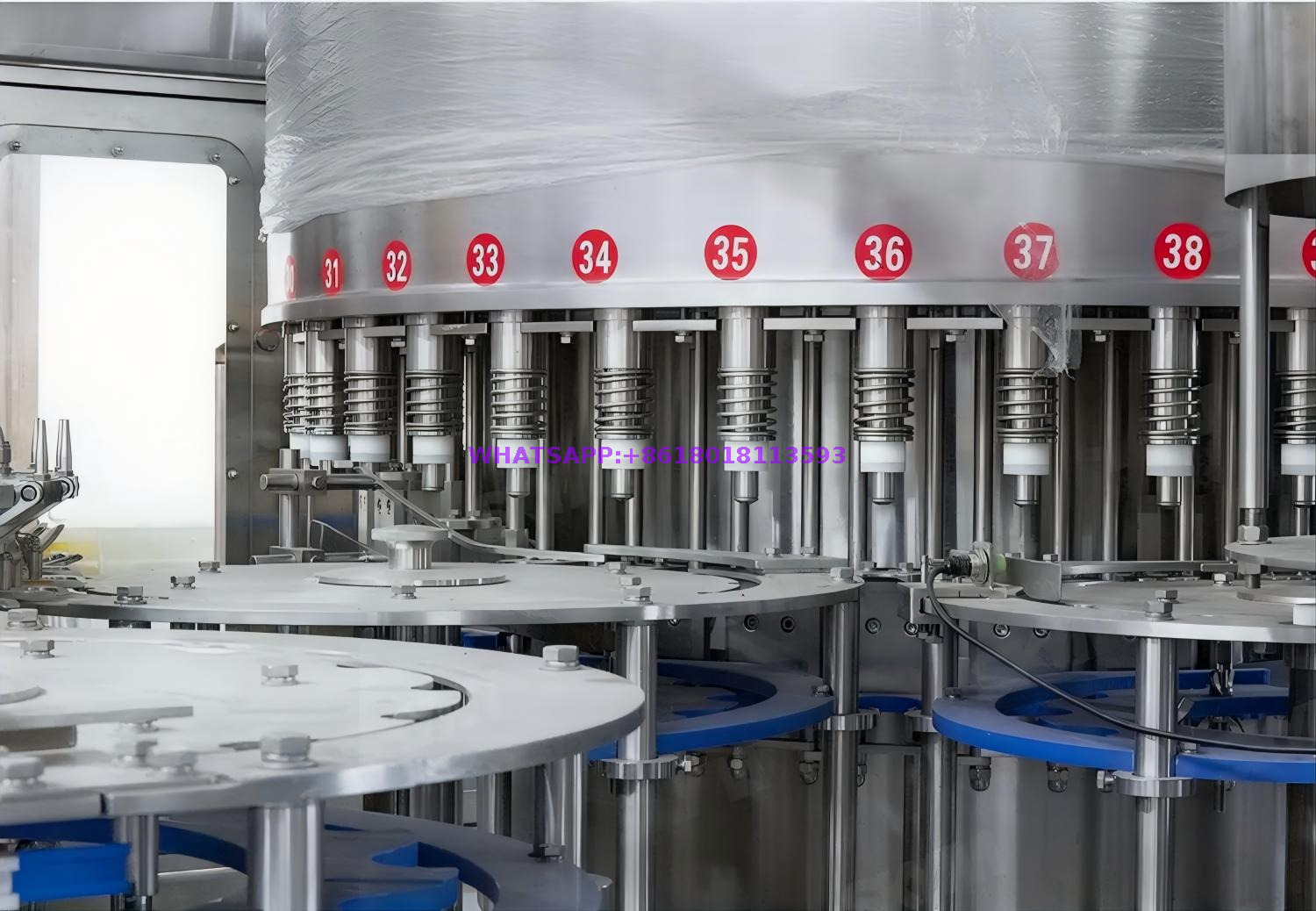

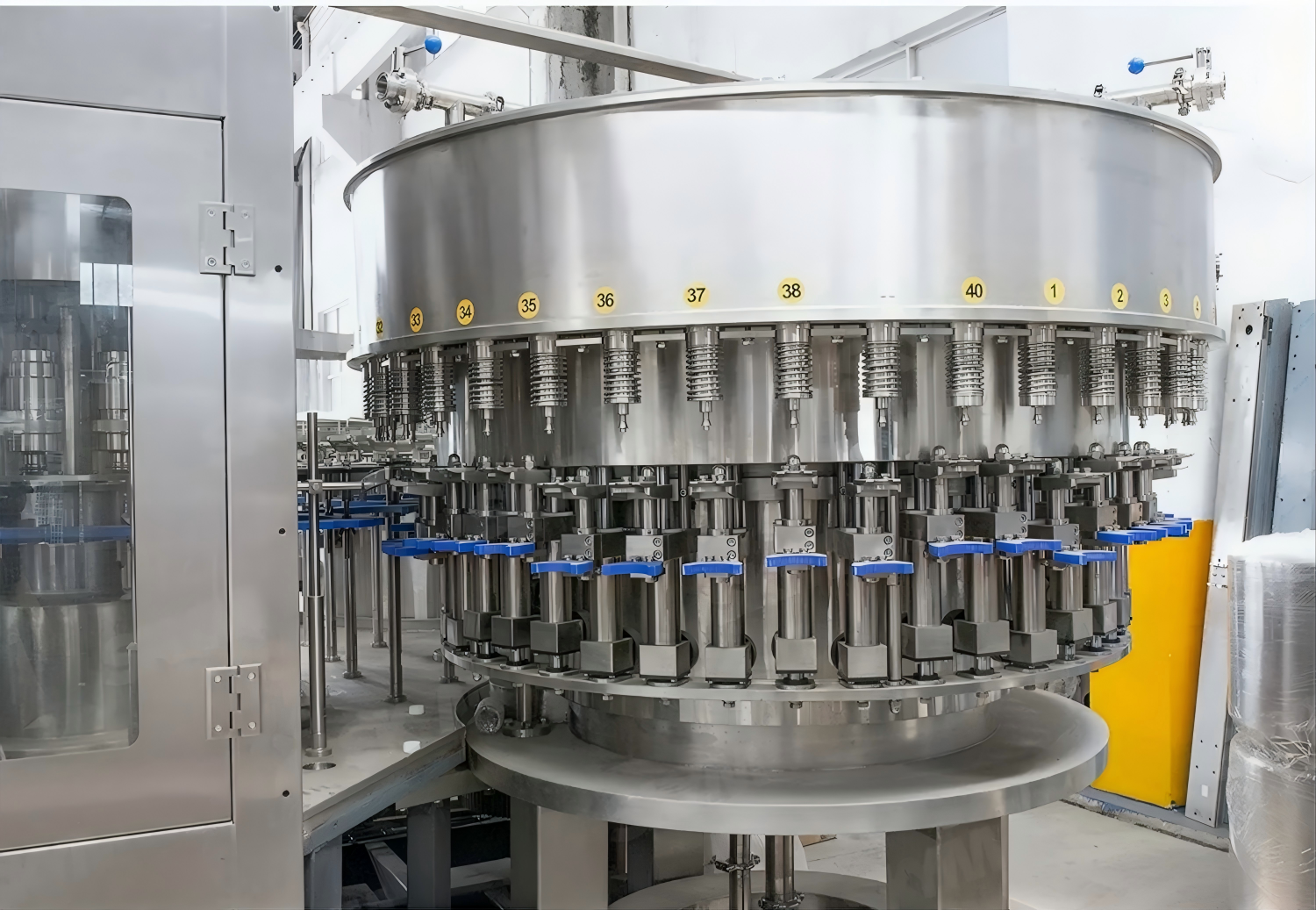

Filling valve adopts constant pressure gravity type, filling fast and high accuracy of filling liquid level. It adopts double guide-rod structure.
The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, automatic centralized lubrication; inverter controls main motor speed, stepless variable-frequency speed regulation. The material for the whole platform and frame is carbon steel with stainless steel outside.
The machine is automatically controlled by PLC, fault on line display, like bottle block, cap shortage etc.
Key parts and electrical components are imported.

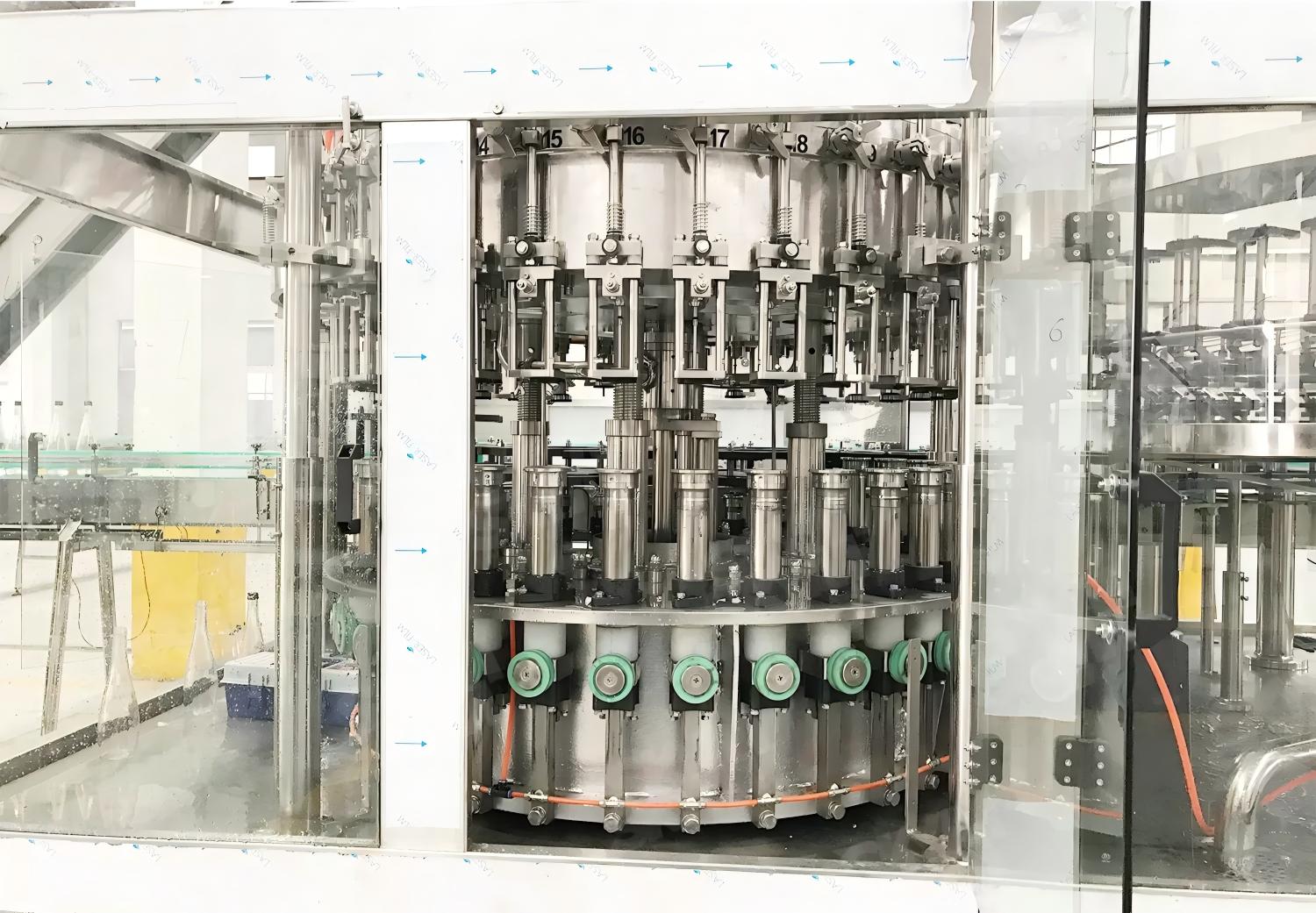

Capping Part
The capping rotates through reduction box drive rotational wheel, which delivers caps by centrifugal force. There is a separation device for right cap and reverse cap at the entrance, when the reverse cap passes, caps automatically return to the hopper, and blow the reverse cap automatically to hopper through wind power. Only right cap could enter into skids smoothly, cap level in the hopper is automatically detected by electric switch to control cap conveyor, and that ensures best effect of cap down. When the right cap enters into the slide way, it could smoothly enter into cap feed plate, to prevent accidents, there is an anti reverse cap drive plate device to match with slide way, to ensure that the access to the cap feed plate is correct. The slide way is also equipped with a pair of photoelectric switch, when testing no cap, the machine stops immediately. In order to effectively remove non-anti-theft ring bad caps and cleanup additional caps in hopper, there is an active exit in front of the hopper exit can meet this function.
Water Filling Machine
Our filling machine will bring efficient, accurate, and reliable filling solutions to your production line, enhancing your production efficiency and product quality, and bringing greater success and competitive advantage to your business.
