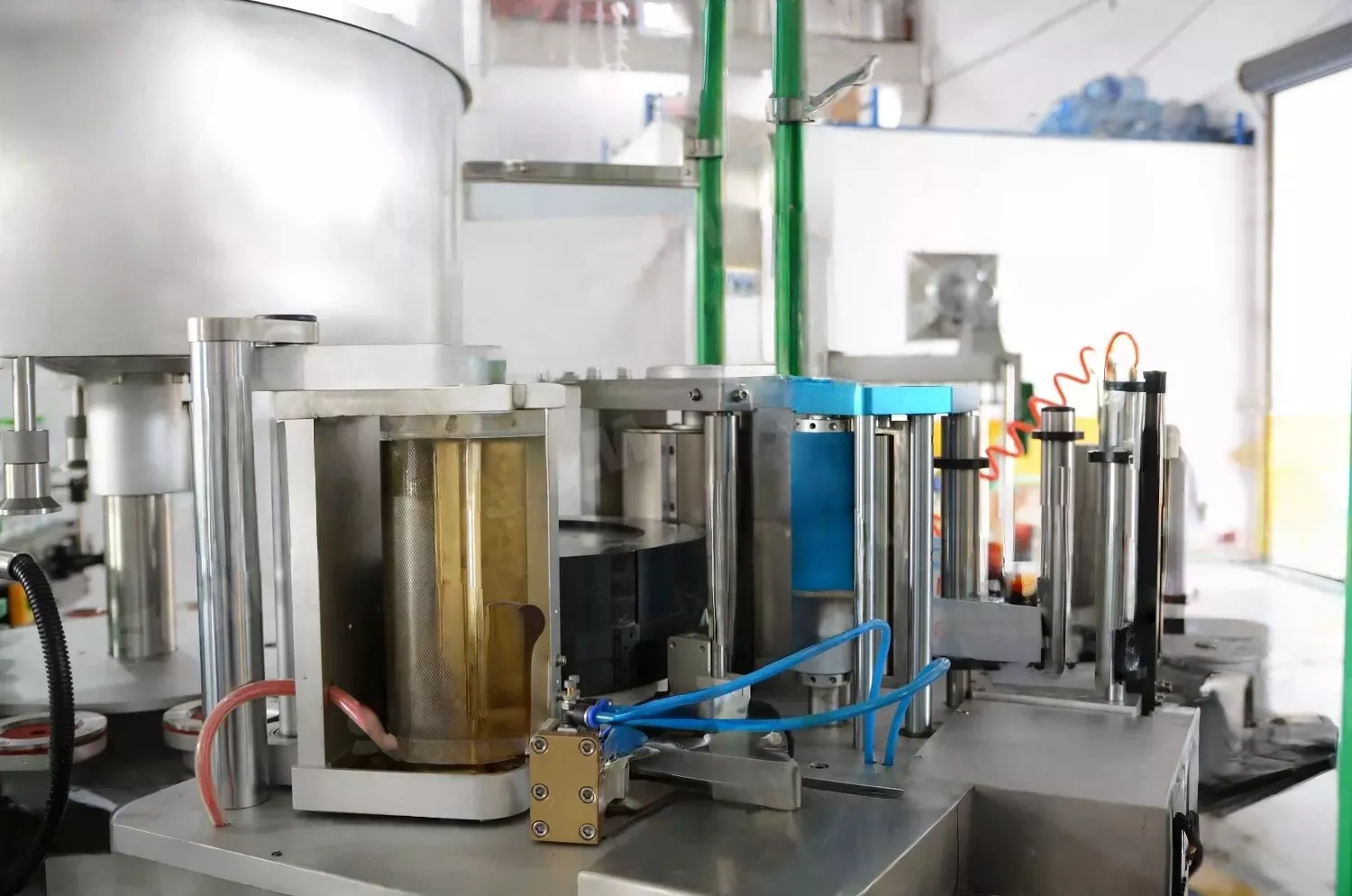

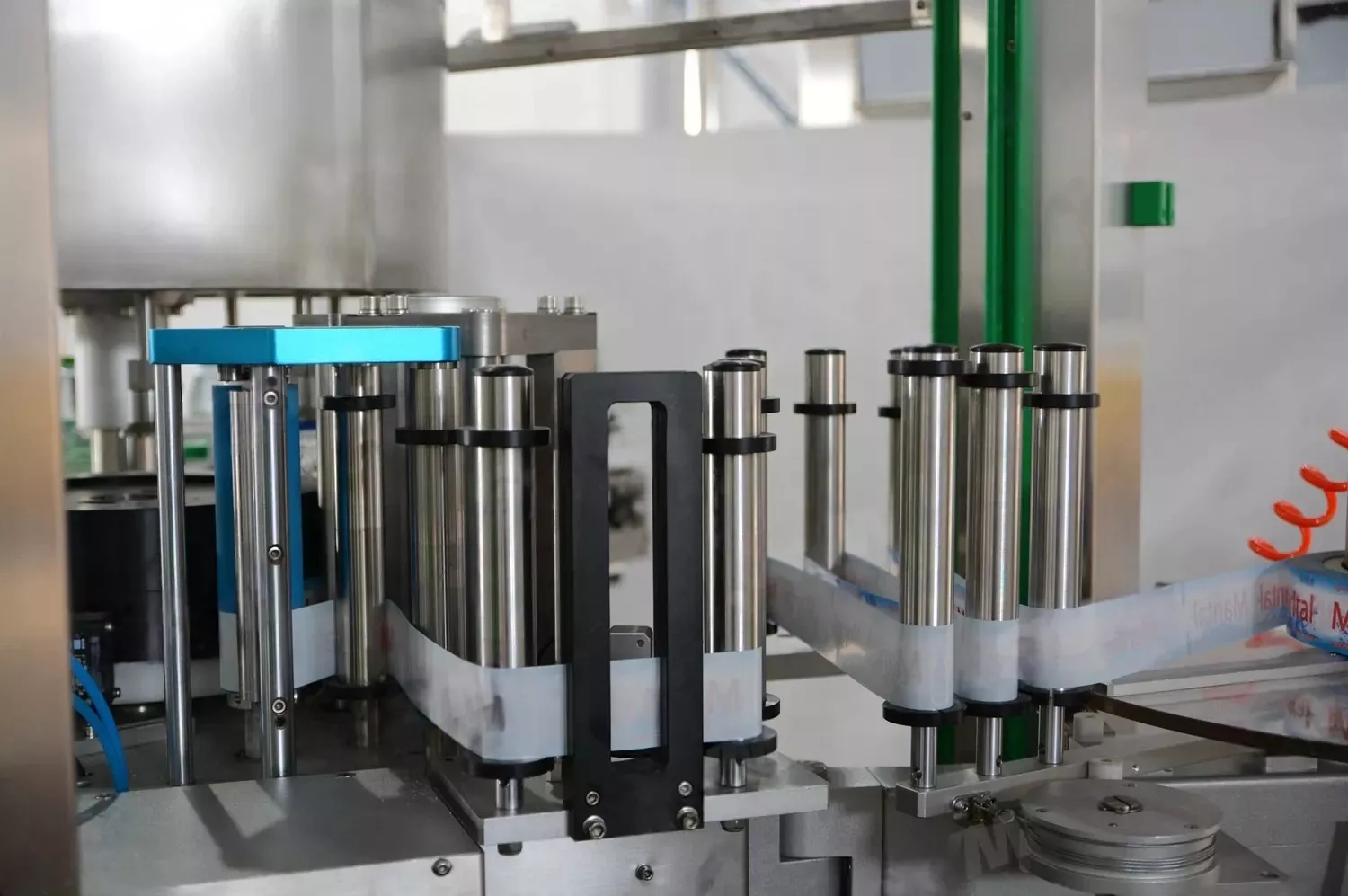

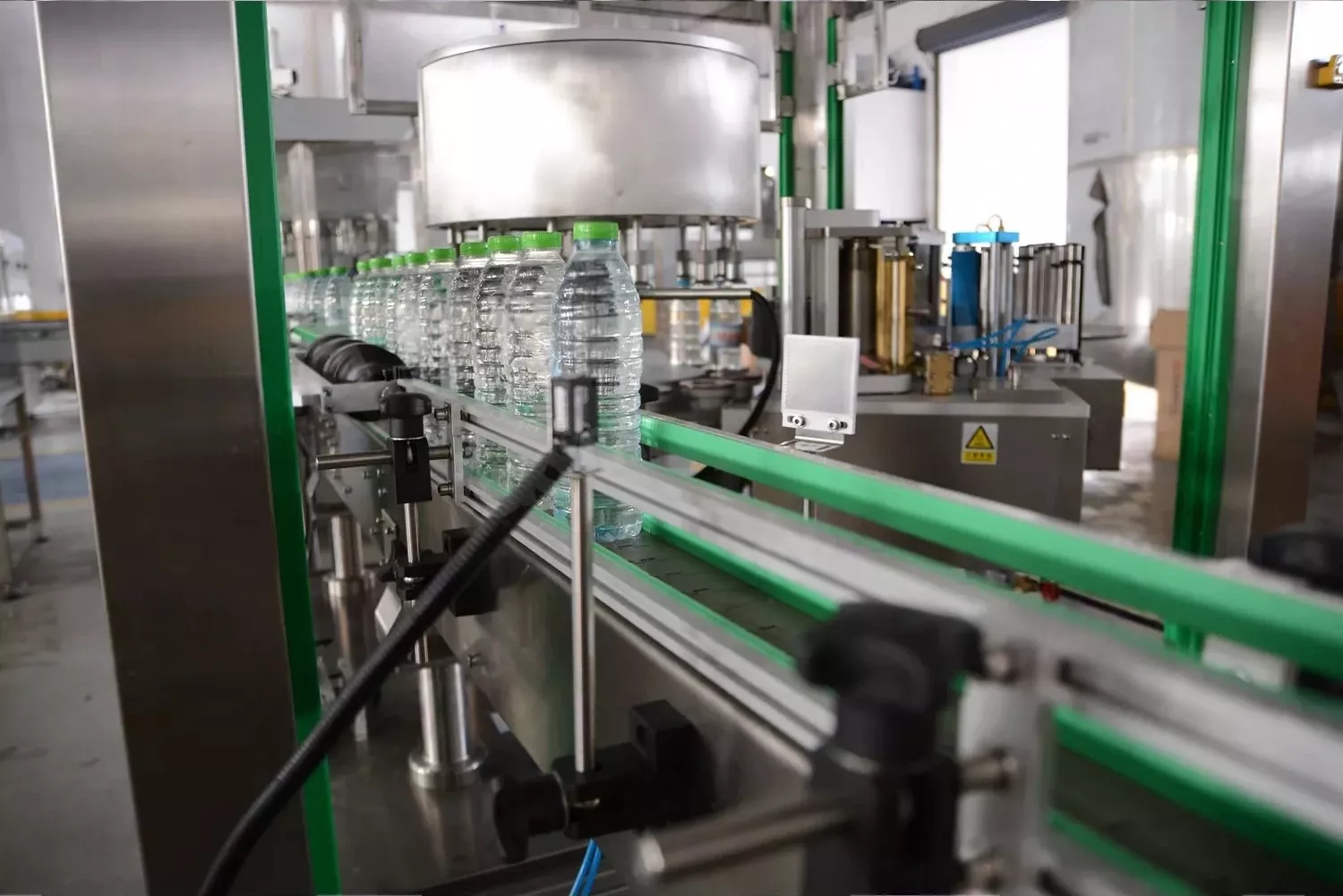

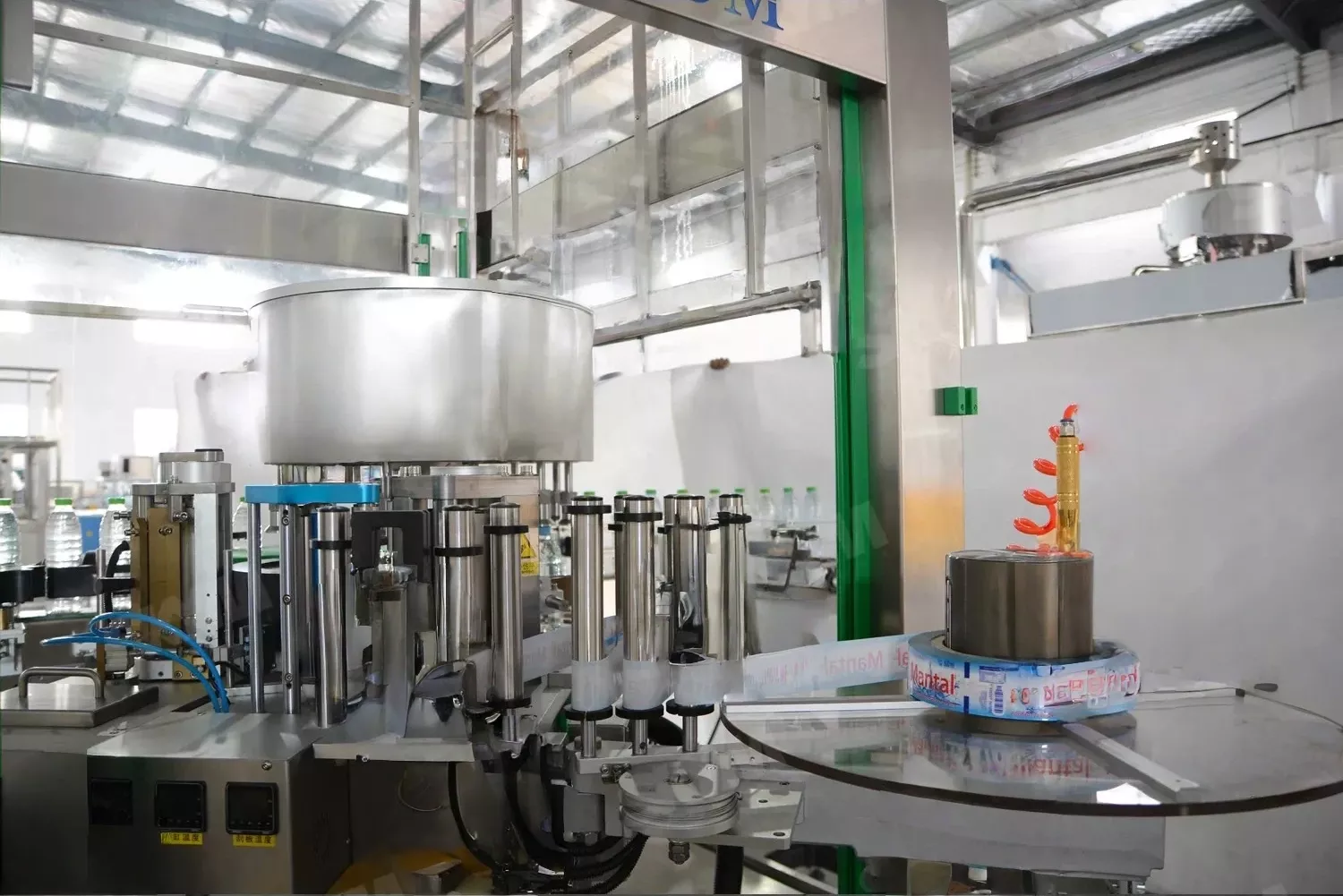

Our automatic OPP hot melt labeling machine is advanced automated equipment for round, square, flat and oval bottles. It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.
・Adopts high-precision hot melt glue system with stable labeling.
・Suitable for beverage, food, daily chemical and cosmetic industries.
・High speed, low glue consumption, easy operation and maintenance.
Parameters Table
Model
SPC-150B
SPC-200B
SPC-300B
SPC-450B
Host size
2100L*850W*2000H
2100L*850W*2000H
2100L*1100W*2200H
2500L*1200W*2200H
Production speed
150B~170B
200B~220B
300B~350B
450B~500B
Power Supply
1ø/220V, 3ø/220V
1ø/220V, 3ø/220V
1ø/220V, 3ø/220V
1ø/220V, 3ø/220V
Host Power
2KW
2KW
2KW
6KW
Framework material
stainless steel
stainless steel
stainless steel
stainless steel
Length of the label
30mm~260mm
30mm~260mm
30mm~180mm
30mm~180mm
Thickness of the label
0.03mm~0.13mm
0.03mm~0.13mm
0.03mm~0.13mm
0.03mm~0.13mm
Diameter of bottles
28mm~125mm
28mm~125mm
28mm~125mm
28mm~125mm
Height of bottles
50mm~280mm
50mm~280mm
50mm~280mm
50mm~280mm
Shape of bottles
Square, round, oval, flat bottle
Square, round, oval, flat bottle
Square, round, oval, flat bottle
Square, round, oval, flat bottle
Contraction furnace power
13~15KW(Or steam)
13~15KW(Or steam)
13~15KW(Or steam)
13~15KW(Or steam)
Automatic Bottle Sleeve Labeling Machine
All-cover type stainless steel host machine: The whole machine is waterproof as well as rustless.
Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: More stable label delivery.
Synchronous bottle divider: More stable bottle transmission.
Bottom set of label brush: Higher labeling accuracy.
Label-controlling electric-eye shelf: Unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials.
Push-button control cabinet: A more humanized operation.
Independent feeding material shelf: The position of the material shelf is optional at will.
Electrical Appliance Configuration Specification:
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; Besides, it dopts The positioning module to ensure the accurate labeling, rapid and stable.
Applicable Bottle Types:
Various kinds of bottle types, for example: Round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.
Machine Features
1. It applies to roll labeling; uses local gluing, low glue consumption and low operating costs.
2.Due to the design of high-precision processing requirements of strict assembly ensures stable machine operation, and production capacity can reach 10,000 bottles / hour.
3. The labeling station is the core part, designed to label feeding with constant tension control; automatic label correction; labeling speed (revolution speed of the machine and the speed of rotation of the
synthetic bottle speed) internal matching; no-bottle no-label function; anti-drip glue function; easy bottle format change before and after labeling.
4. the host adopts imported cam design to easy bottle format change; pneumatic head locking mechanism to increase the
convenience of the host.
FAQ
What's your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.
When can I get my machine after I paid?
How can I install my machine when it arrives?
What's the delivery time?
What's min order quantity?
Our filling machine will bring efficient, accurate, and reliable filling solutions to your production line, enhancing your production efficiency and product quality, and bringing greater success and competitive advantage to your business.
