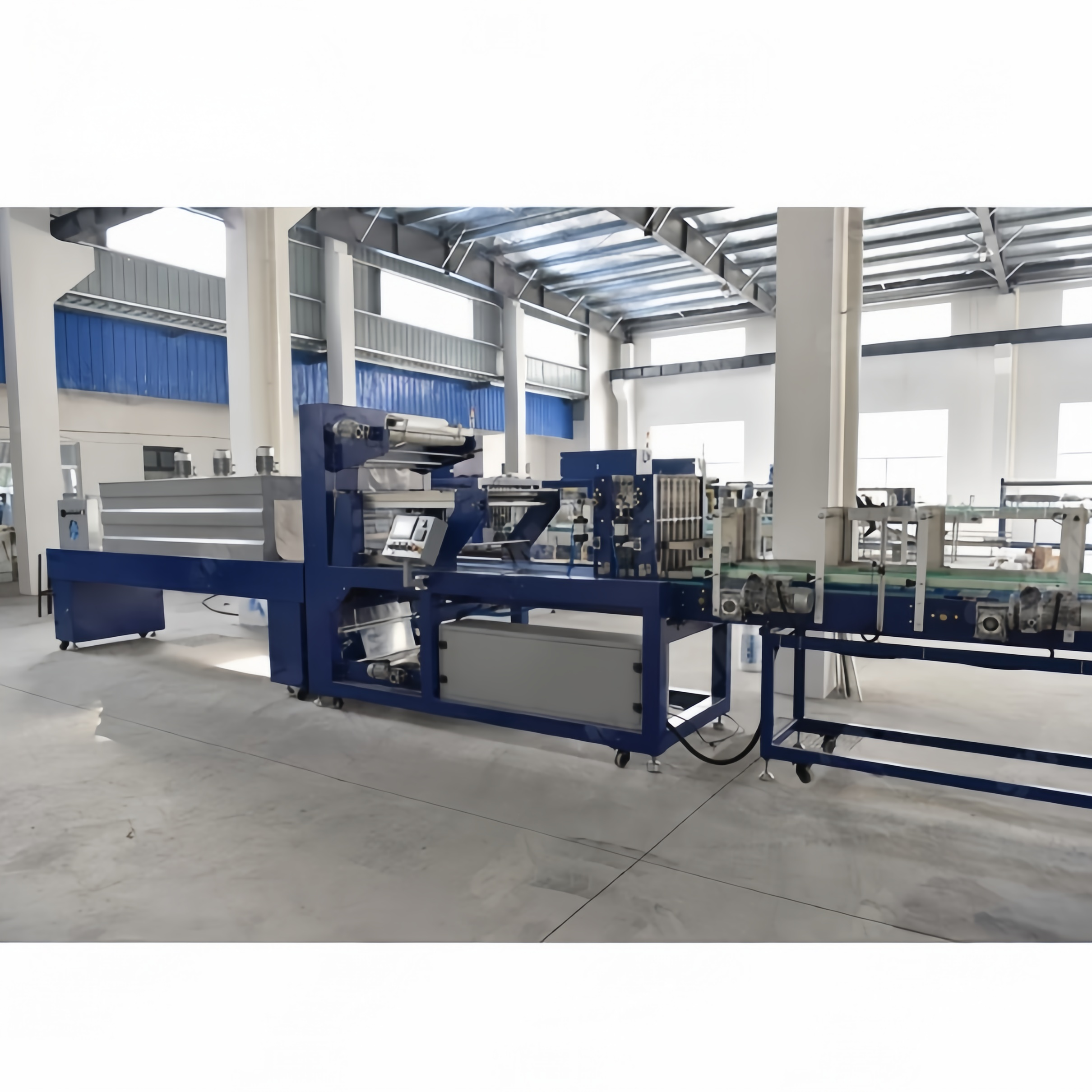

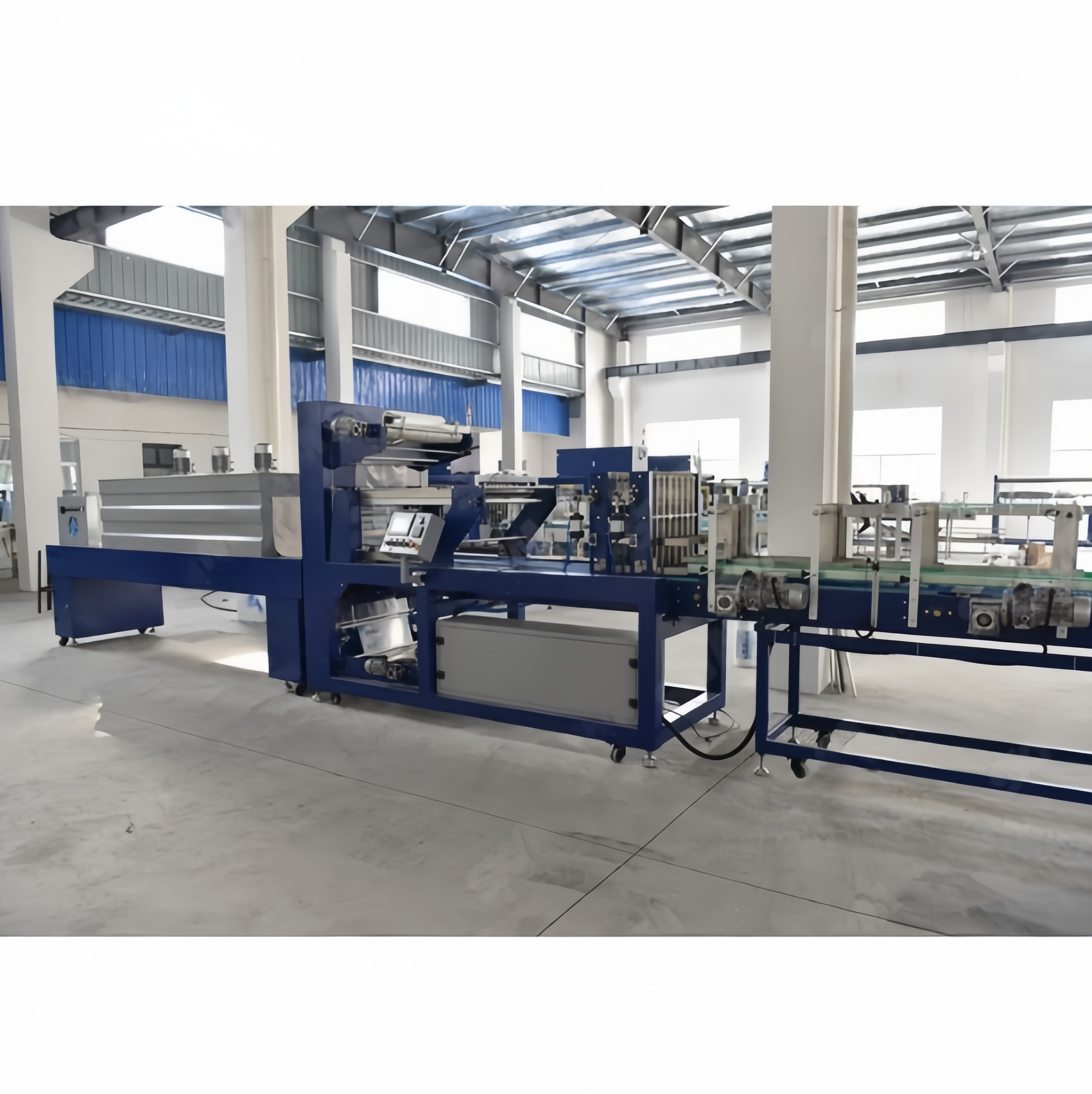

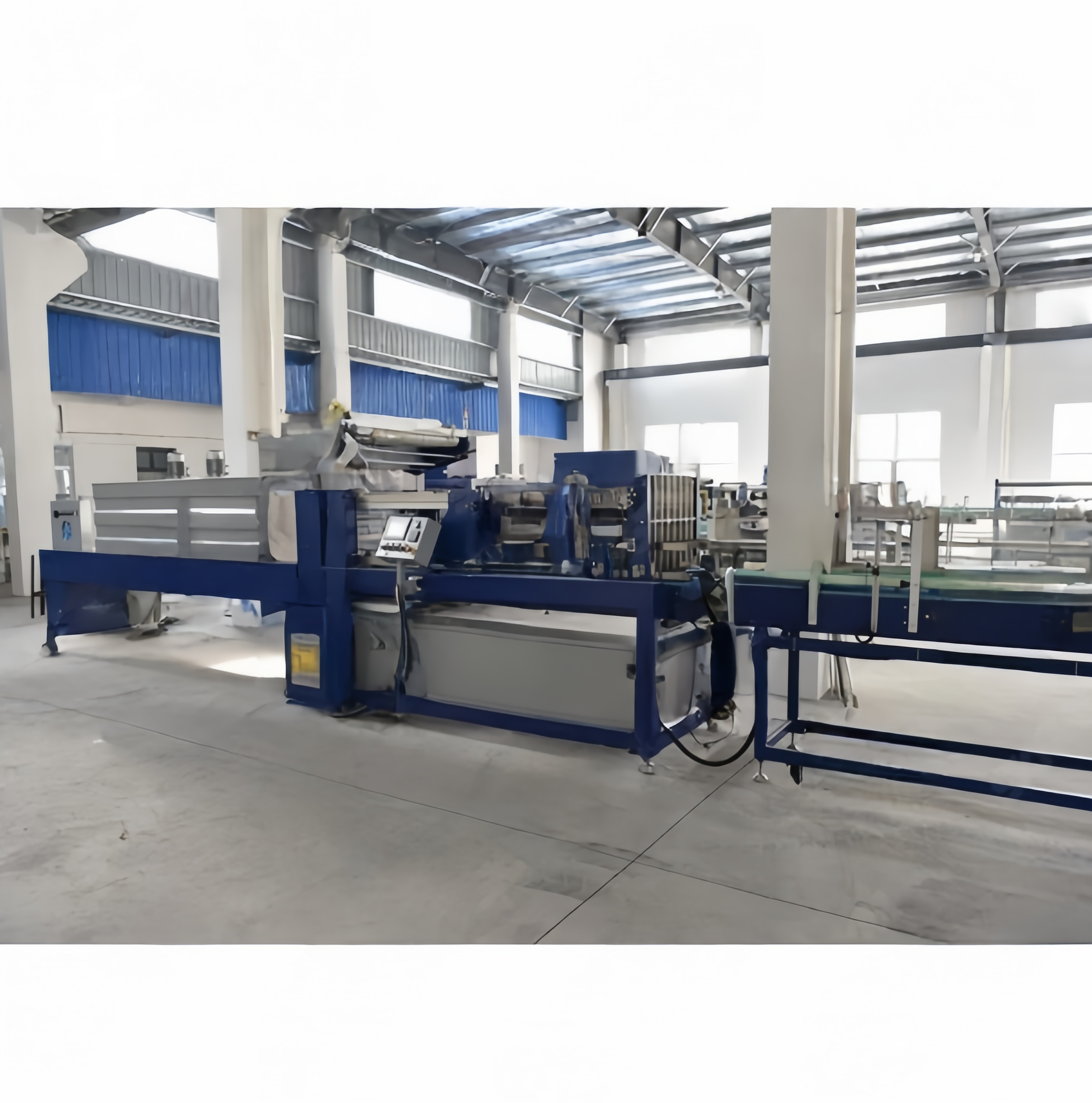

Our heat shrink wrapping machine is advanced automated machinery designed for packaging bottled water, beverages, juice, beer and cans with OPP, PET or PE film.It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.
・L-type design for automatic group packaging without bottom tray.
・Stable, efficient, energy-saving and easy to operate.
・Food‑grade safe for beverage production lines.
Parameters Table
Model
BZJ-5038B
MBJ-150
MBJ-200
MBJ-350
Automation
Semi automatic
Automatic
Automatic
Automatic
Frequency
5bags/min
8-12bags/min
15-20bags/min
30-40bags/min
Packing speed
PE film
PE film
PE film
PE film
Material of film
160-260degree
160-260degree
160-260degree
160-260degree
Max shrink temperature
Length:125-325mm，Height:20-150mm
Length:125-325mm，Height:20-150mm
Length:125-325mm，Height:20-150mm
Length:125-325mm，Height:20-150mm
Bottle diameter
60-90mm,height<330mm
60-90mm,height<330mm
60-90mm,height<330mm
60-90mm,height<330mm
Power
15kw
18kw
30kw
35kw
Weight
400kg
1200kg
2500kg
2800kg
Device Structure
Applications
The machine is developed especially for mineral water, beverage, wine, beer, product and soon.
infusion medicine bottle combination packaging, with stable function, and the packed articles.
tight and orderliness. It can be handled as a single pushing machine when high speed demanded.
Features
Applying imported PLC procedure automatic control, stable performance, and accurate control.
Enjoying full-automatic function of feeding, tube management shrinkage, and cooling shape-fixing flow.
Film transportation is adopted with sensor switch control, adjustable deliver film length, and can
reduce wastage.
Elector motor is adopted with imported transducer to control, realizing unlimited speed regulating.
Advanced spiral wind circulating structure, three-layer insulation treatment, and energy conservation.
Reinforced cooling shape-fixing channel to ensure packaging products shape quickly and convenient storage and transportation.
Our filling machine will bring efficient, accurate, and reliable filling solutions to your production line, enhancing your production efficiency and product quality, and bringing greater success and competitive advantage to your business.
