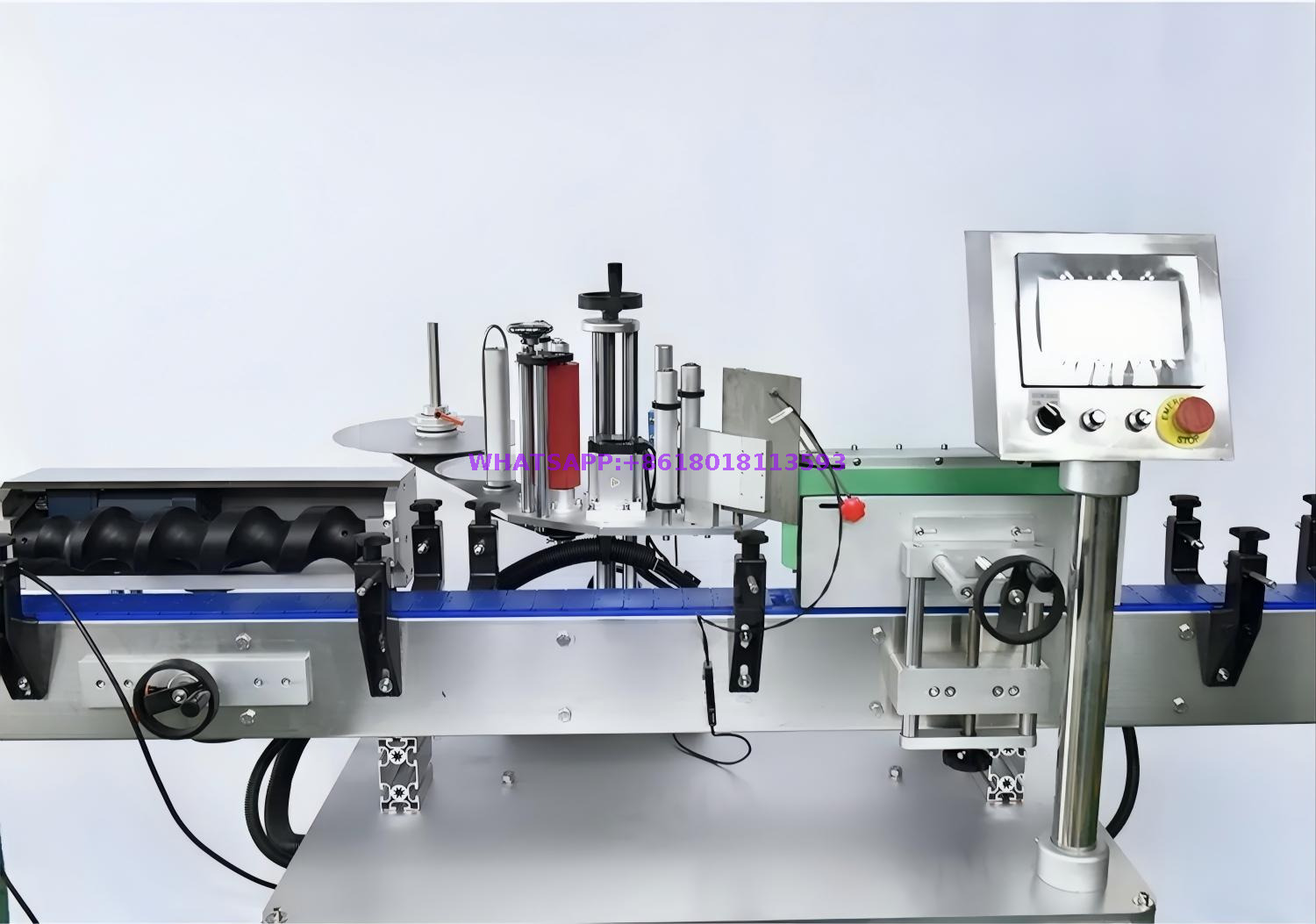

Our high-accuracy self-adhesive labeling machine is designed for juice bottles, round bottles, square bottles and special-shaped bottles. It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.
・High labeling precision, stable running and wide application.
・Suitable for juice, beverage, food and daily chemical industries.
・Easy operation, low maintenance and long service life.
Parameters Table
Model
R-9
R-15
Voltage
380V/220V
380V/220V
Frequency
60Hz/50HZ
60Hz/50HZ
Power (KW)
8KW
9.5KW
Available bottles dimension
Diameter:40-105mm, height: 80–350 mm
Diameter:40-105mm, height=80-350MM
Label specification
Length:125-325mm，Height:20-150mm
Length:125-325mm，Height:20-150mm
Gluing way
Rollpainting(about 10mm, both label head and tail)
Rollpainting(about 10mm, both label head and tail)
Capacity
9000 bottles per hour(500ml bottle)
l kg/ 100,000 bolttles(label height:50mm)
Compressed Air Pressure
MIN5.0bar MAX8.0bar
MIN5.0bar MAX8.0bar
Total Weight
2500Kg
3000Kg
Overall dimension
L=3150,W=1770,H=1800
L=3650,W=1970,H=1800
Device Structure
Head motherboard
Using 20mm thick aluminum plate, the overall planing mill treatment to ensure surface flatness. Anodized aluminum surface
treatment, sandblasting process to ensure that the hardness and appearance. All guides are used to label feeding countersink process
to ensure that high verticality with guide rails to ensure delivery subject stability. Head motherboard using the most advanced CNC
machining centers to ensure the accuracy of every size.

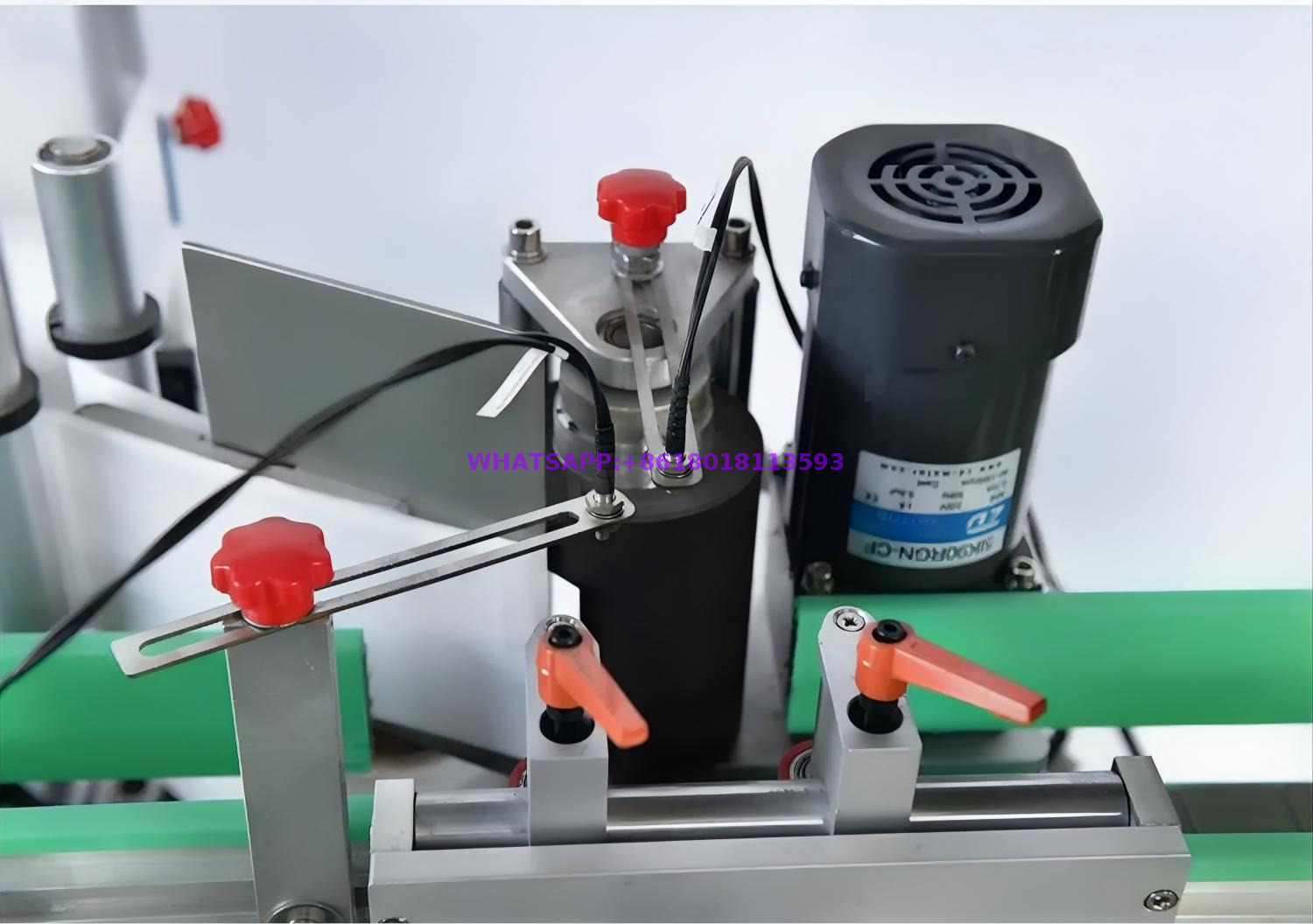

Label Feeder
Label feeder 5-axis positioning mechanism, which greatly ensure stability during delivery standard. Subscript label feed roller 2 /3 near the contact area to avoid label slipping and the roller, to improve the accuracy of delivery targets. Label feeding and receiving are synchronously controlled, to avoid the label pulled off .

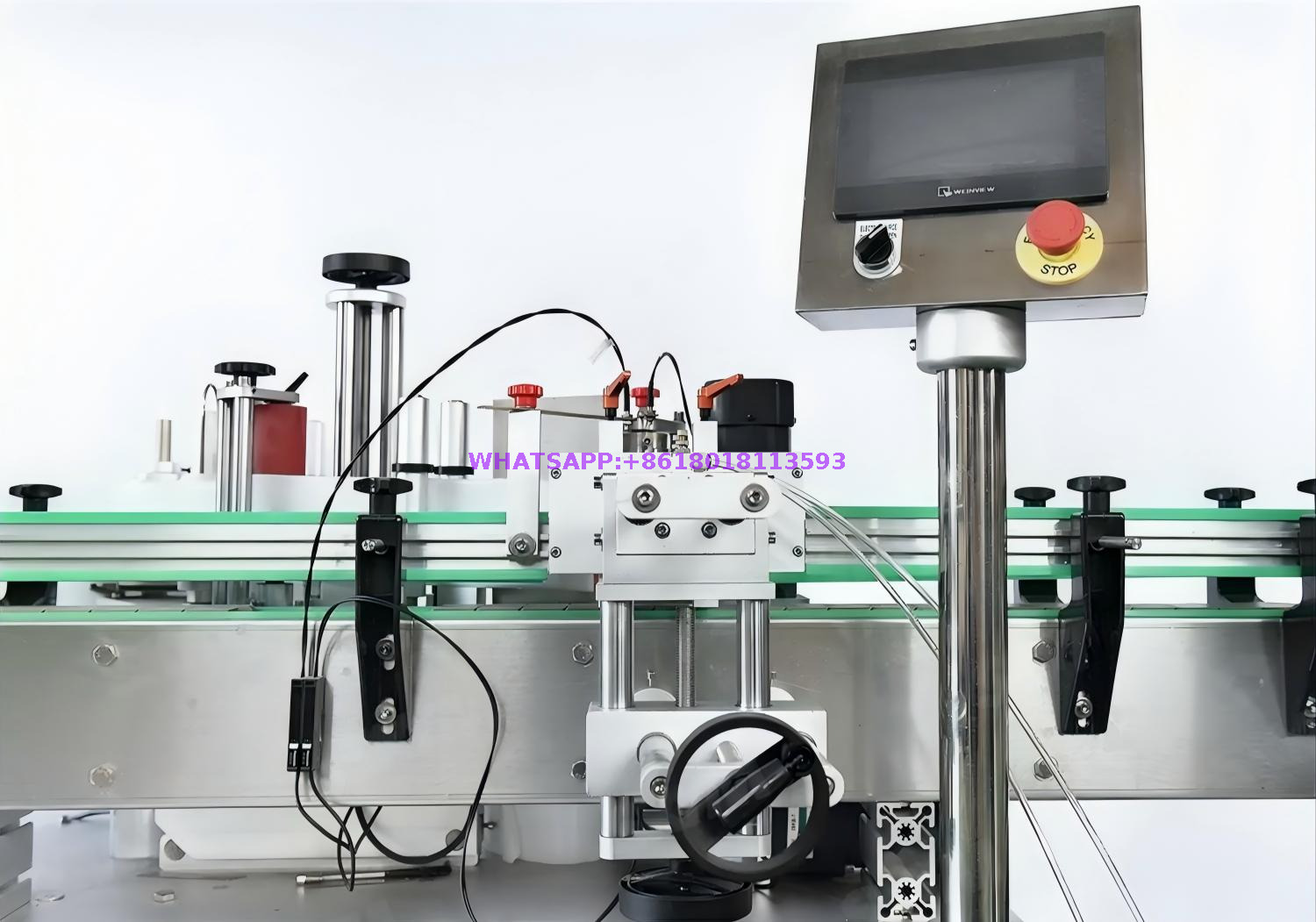

Touch Screen
Taiwan Winview touch screen with high-quality large touch screen, interactive, easy to operate And outside touch screen plus a protective cover .
Cabinet
Chassis is made of 304 stainless steel fully sealed structure, effectively prevent dust and water from entering.
FAQ
Are you factory?How many workers do you have?
Yes,we are factory. our factory is located in zhangjiagang near Shanghai. We have about 50 workers in our factory.
What about after-sales service?
What about installation?
What do we do if we encounter any machine problems ?
How can you control the quality and delivery?
Our filling machine will bring efficient, accurate, and reliable filling solutions to your production line, enhancing your production efficiency and product quality, and bringing greater success and competitive advantage to your business.
