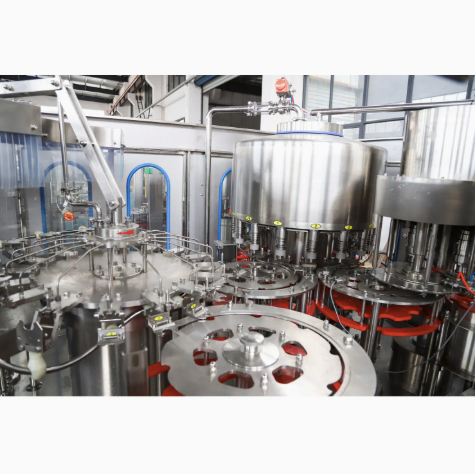

Home Machines Beverage Filling Machine Water Filling Machine High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit

Our filling machine is an advanced automated piece of equipment designed for filling and packaging various liquid products. It utilizes high-precision metering systems and advanced control technology to quickly and accurately complete filling tasks, improving production efficiency and ensuring product quality.

・Uses high-precision metering system to fill liquid into containers accurately.

・Suitable for mineral water, fruit juice, tea and other beverage filling and packaging.

・Completes rinsing, filling and capping processes through automated control.

库存： 0
Add to Basket
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit
High-Quality Pure Mineral Water PET Plastic Bottling 3-in-1 Washing Filling Capping Machine + Automatic Labeling & Shrinking Unit

Parameters Table

Model

Bottle diameter

Bottle height

Compressor air pressure

Rinsing pressure

Total power (KW)

Overall dimensions

Weight(kg)

CGF8-8-3

Dia50-Dia115mm

160-320mm

0.3-0.7Mpa

>0.06Mpa<0.2Mpa

4.4

2.3*1.9

2500kg

CGF14-12-4

Dia50-Dia115mm

160-320mm

0.3-0.7Mpa

>0.06Mpa<0.2Mpa

4.4

2.5*1.9

3200kg

CGF18-18-6

Dia50-Dia115mm

160-320mm

0.3-0.7Mpa

>0.06Mpa<0.2Mpa

4.4

2.8*2.15

4000kg

CGF24-24-8

Dia50-Dia115mm

160-320mm

0.3-0.7Mpa

>0.06Mpa<0.2Mpa

5.2

3.1*2.5

4500kg

CGF32-32-10

Dia50-Dia115mm

160-320mm

0.3-0.7Mpa

>0.06Mpa<0.2Mpa

6.2

3.8*2.8

6500kg

CGF40-40-12

Dia50-Dia115mm

160-320mm

0.3-0.7Mpa

>0.06Mpa<0.2Mpa

7.8

4.5*3.3

8000kg

png100-t3-scale100 (4)

Main feature

1：It adopts an air conveyor and direct wheel connection. Screws and conveyor chains are removed, which make bottle shape replacement easier.

2：Bottle transmission adopts a bottleneck clamping design. Changing bottle shapes requires no height adjustment; only relevant curved guides, wheels and nylon parts need to be replaced.

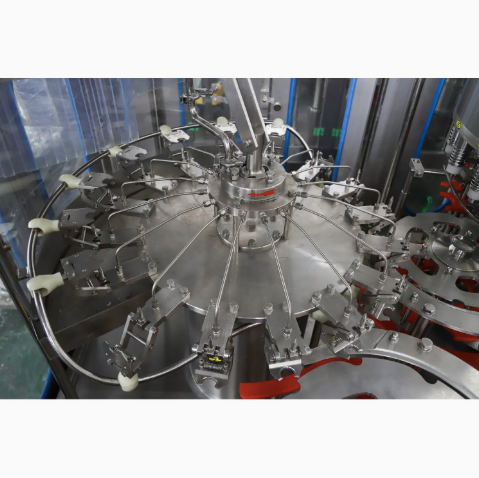

3：The specially designed stainless steel bottle washing gripper is solid and durable. It does not touch the threaded part of the bottle mouth to avoid secondary pollution.

4：Other related machines: glass bottle filling machines, gravity flow filling machines.

5：High-speed gravity flow filling valves enable fast and accurate filling with no liquid loss.

6：The machine adopts advanced PLC automatic control. Key electrical components are sourced from well-known international brands such as Mitsubishi and Schneider.

7：Bottles are discharged through spiral decline design. Changing bottle shapes requires no adjustment to the conveyor chain height.

Machine Features

Blow Moulding Part

An adjustable cam for the stretching curve guide ensures qualified molding quality for different bottle sizes. Integrated monobloc blowing valves deliver fast and uniform blowing effects. Bottle necks are well protected by a special sealing structure during the blowing process.


png100-t3-scale100 (4)
png100-t3-scale100 (5)

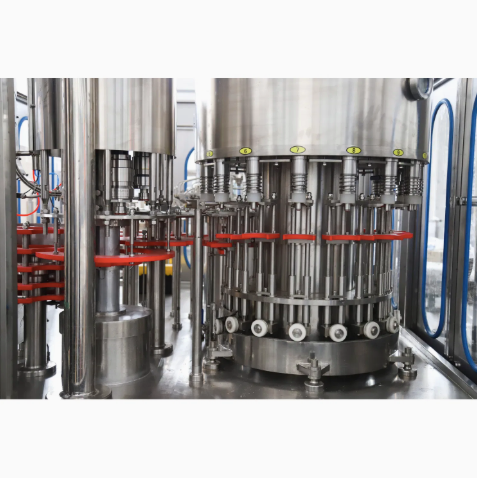

Filling Part

The filling valve adopts constant-pressure gravity filling mode, featuring fast speed and precise liquid level control. The machine adopts a double guide-rod structure for stable operation. The main drive adopts gear transmission, with high efficiency, low noise, long service life and convenient daily maintenance. It is equipped with automatic centralized grease lubrication, and the main motor adopts frequency conversion speed regulation for flexible speed adjustment.

The overall frame and platform are made of carbon steel with full stainless steel cladding on the contact surface. The whole machine is controlled by PLC with real-time online fault alarm and display for common abnormalities such as bottle jams and cap shortages. Core electrical components and key accessories adopt imported famous brand parts for stable operation.

Capping Part


The capping device is driven by a gearbox to drive the cap sorting wheel through centrifugal force. A professional cap sorting structure is installed at the inlet to screen positive and inverted caps. Unqualified inverted caps will be automatically sent back to the hopper by air pressure to avoid jamming.

Only correctly placed caps can smoothly enter the feeding slide. The internal cap storage capacity of the hopper is automatically monitored by electric sensors to control the cap feeding system and ensure continuous and stable capping.

Anti-reverse limiting devices are installed on the slideway to ensure caps enter the feeding plate in the correct direction. Photoelectric switches are configured on the slideway; the main machine will stop immediately once a cap shortage is detected.

An active waste discharge outlet is designed at the hopper entrance to automatically remove defective caps without anti-theft rings and excess sundries.

Our filling machinery adopts full-automatic operation to complete filling procedures efficiently and accurately. Compared with manual production, the continuous high-speed operation greatly reduces labor intervention and saves labor and time costs.

We have a professional after-sales service team to respond quickly and solve all equipment operation problems for customers in a timely manner. All our bottling machinery adopts energy-saving designs and eco-friendly materials to reduce energy consumption and environmental pollution.

png100-t3-scale100 (2)
Technical Introduction to Water Filling Machines and Packaging Solutions


We provide advanced water filling machines that are engineered to meet the diverse needs of the bottling industry. Our water packing machines deliver high-speed and accurate filling for various bottle sizes and types, catering to both small-scale and large-scale production facilities. Whether you need an entry-level small water filling machine or a high-capacity fully automatic water bottle filling machine, we have customized solutions to optimize your production process.

Cost-Effective and Flexible Water Filling Solutions
We understand prices are a crucial factor for businesses, which is why we offer competitive quotations to fit different budget ranges. Our machines are available in various configurations, from basic small water filling equipment to fully automated production systems. For businesses seeking cost-effective options, we provide reliable water packing machines with stable performance at reasonable prices.

Automatic Water Filling Machines for Enhanced Efficiency
Our automatic water filling machines are designed to streamline bottling production and minimize manual labor. These automated bottling devices are equipped with customizable functions to adapt to different bottle specifications and production demands. With high working efficiency and filling accuracy, the equipment effectively reduces operating costs and boosts production output.

Comprehensive Water Bottling Systems
cmachinery provides complete water bottling systems that integrate filling, labeling, capping, and packaging in a single streamlined solution. Our water bottling equipment is designed to handle various water types, from still to sparkling, and includes water filling bottle machines capable of high-speed production. Whether you're seeking water bottling machines for sale or a versatile bottle water machine, we offer equipment that ensures smooth operation and consistent product quality.

Fully Automatic Water Bottle Filling Machines for Large-Scale Production
To form a complete supporting production line, we supply matched bottle packing equipment to realize automatic post-packaging processing. These packaging machines ensure tight and firm bottle sealing, facilitating subsequent storage and transportation.

Water Bottle Packing Machines for Efficient Packaging
To form a complete supporting production line, we supply matched bottle packing equipment to realize automatic post-packaging processing. These packaging machines ensure tight and firm bottle sealing, facilitating subsequent storage and transportation.

If you are looking for water bottling machines, supporting bottling equipment or complete production line solutions, please contact us directly. Our bottling machinery features stable performance and long service life, making them a valuable long-term investment for beverage production enterprises.


General description:
High-speed rotary filling PET bottles blow-filling-capping Combi-block is based on "high-speed blow molding machine unit ", " high-speed filling machine unit “and " high speed capping machine unit " ,equipped with control system and on-line detection system. It integrates optical, mechanical, electrical, pneumatic and hydraulic technologies with image recognition and synchronous servo control systems. This allows integrated control of multiple units, scientific layout, seamless linkage and improved overall production efficiency, reduce investment costs, reduce energy consumption and maintenance costs of the integrated production capabilities.

Performance and Advantage:
1.Integrated and synchronized control technology for PET bottle blowing and rotary filling;
2.Optimized energy-saving design and control technology for high-speed preform heating systems;
3.Miniaturized design and optimized mold technology for high-speed blow molding systems;
4.Reasonable cam curve design to improve blowing molding quality and operational stability;
5.High-speed and precise liquid level control technology for accurate filling;
6.Synchronous control technology for high-speed rotary capping;
7.Intelligent image recognition and online quality detection technology for bottle blowing and filling;
8.Advanced energy-saving and noise reduction technology;
9.Space-saving and water-saving structural design.
