OPP
SANOFI
Advantages of this machine:

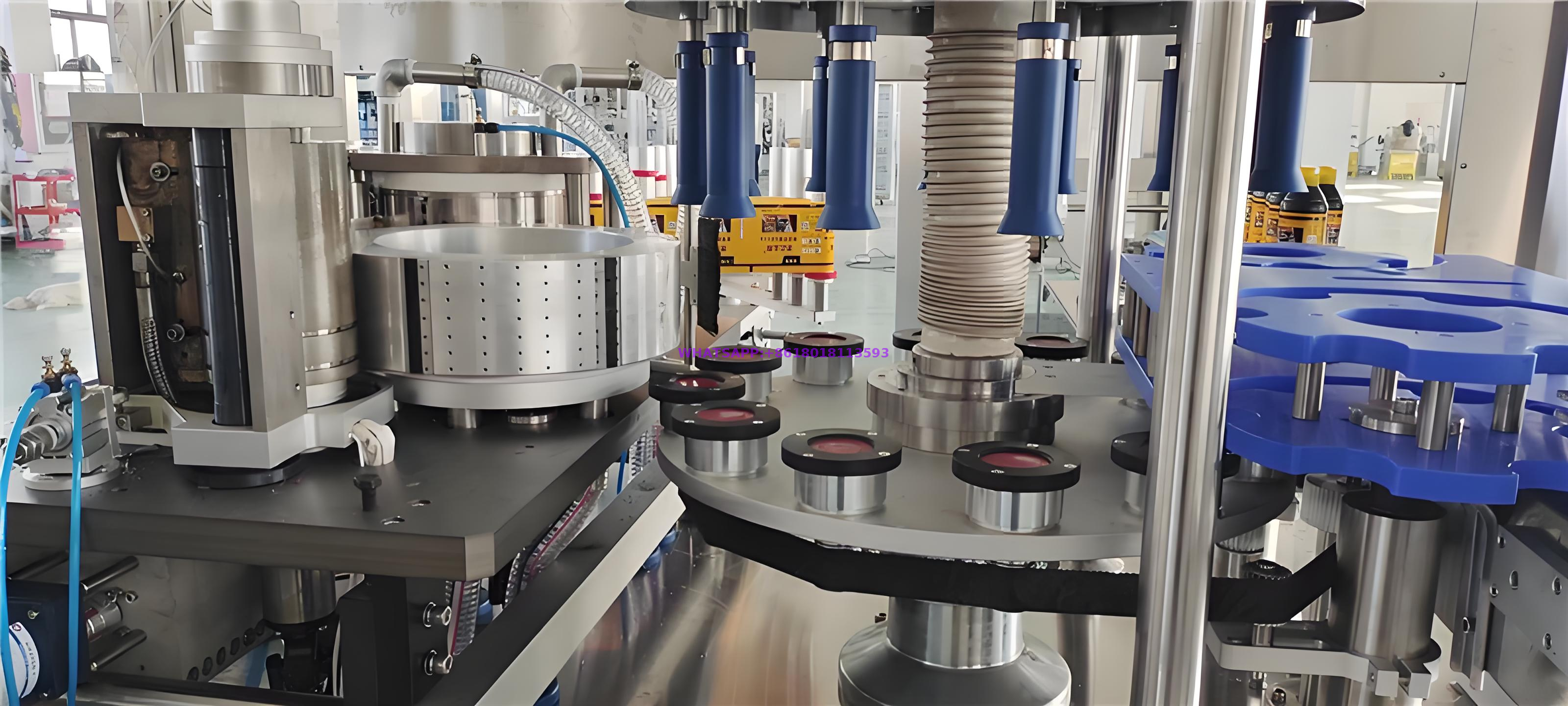

Reliable accuracy: The inaccurate labeling is eliminated because of the structure of three rollers capable of locating labeling position. Any labeling post can be realized, AB symmetric labeling, with the fixed point and position labeling (need to increase position electric eye and product positioning)
Easy to operate: PLC control, full-automatic working, Touch-screen control panel
Wide adaptability:Suitable for the paste of single size, double side and side label of various kinds of square and flat bottles of pharmacy, food, beverage, daily chemicals, etc.
Technical parameters:
| Model | SFOPP-8 | SFOPP-12 | SFOPP-15 |
| Labeling heads | 8 | 12 | 15 |
| Production rate(limitation:b/m) | 150 | 200 | 250 |
| Main power supply | AC 380 V 50 Hz or customized | AC 380 V 50 Hz or customized | AC 380 V 50 Hz or customized |
| Main engine power(KW) | 8 | 12 | 16 |
| Label length(mm) | 40-180 | 40-180 | 40-180 |
| Label thickness(mm) | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 |
| Label material | PVP PET PS | PVP PET PS | PVP PET PS |
| Label height(mm) | 30-195 | 30-195 | 30-195 |
| Bottle/can diameter(mm) | 50-125 | 50-125 | 50-125 |
| Main machine size(mm) | 2000*1800*2000 | 2000*2000*2100 | 2000*2150*2100 |
| Bottle/can sharp | Round, square, elliptic rectangular | ||
Advantages of this machine:
Reliable accuracy: The inaccurate labeling is eliminated because of the structure of three rollers capable of locating labeling position. Any labeling post can be realized, AB symmetric labeling, with the fixed point and position labeling (need to increase position electric eye and product positioning)
Easy to operate: PLC control, full-automatic working, Touch-screen control panel
Wide adaptability:Suitable for the paste of single size, double side and side label of various kinds of square and flat bottles of pharmacy, food, beverage, daily chemicals, etc.
Technical parameters:
| Model | SFOPP-8 | SFOPP-12 | SFOPP-15 |
| Labeling heads | 8 | 12 | 15 |
| Production rate(limitation:b/m) | 150 | 200 | 250 |
| Main power supply | AC 380 V 50 Hz or customized | AC 380 V 50 Hz or customized | AC 380 V 50 Hz or customized |
| Main engine power(KW) | 8 | 12 | 16 |
| Label length(mm) | 40-180 | 40-180 | 40-180 |
| Label thickness(mm) | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 |
| Label material | PVP PET PS | PVP PET PS | PVP PET PS |
| Label height(mm) | 30-195 | 30-195 | 30-195 |
| Bottle/can diameter(mm) | 50-125 | 50-125 | 50-125 |
| Main machine size(mm) | 2000*1800*2000 | 2000*2000*2100 | 2000*2150*2100 |
| Bottle/can sharp | Round, square, elliptic rectangular | ||
