| Quantity: | |
|---|---|
2 cavity, 3 cavity, 4 cavity
SANOFI
Specifications

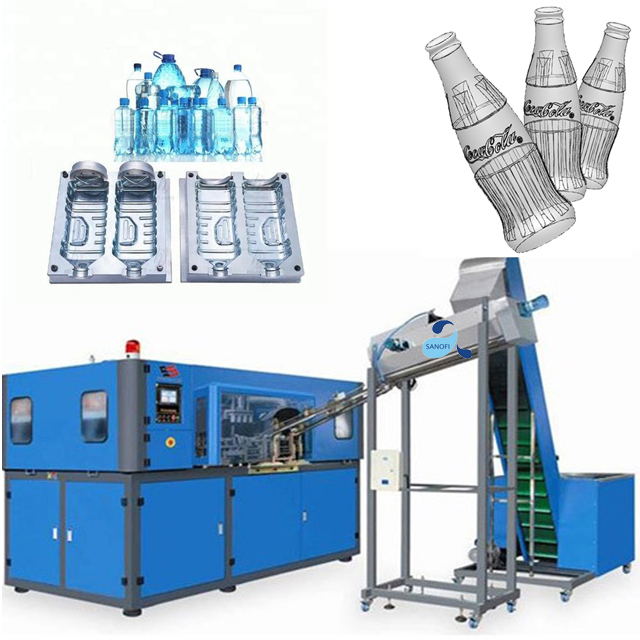

High quality of blowing machine adopt Europe design, easy to use and maintenance, low cost and high efficiency production.
Auto blowing machine is high speed machine, low cost of production, easy to use and maintenance. We adopt Europe technology for our machine to get a high quality and stable machine. We use import sparepart such as Siemens PLC controlled system to get a stable computerized controller of the machine, switch from Germany and Cyliner and valve from Festo, Germany
All of our sparepart for the machine is standard part. So customer will be more easy to find and buy the sparepart. We also can send our engineer to your country to help you installation the machine.
For more information, please feel free to contact us.
Feature :
Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polygene (LDPE), high density polygene (HDPE) and linear low density polygene (LLDPE). It is widely applied to producing the packing bags for food stuff, clothing, rubbish bag and vest ones.
Main technical parameter :
Model | SF-A 2 | SF-A 4 | SF-A 6 | SF-A 8 |
Diameter of screw | φ50 | φ55 | Φ65 | Φ65 |
Width of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
Single-face Thickness of film(mm) | 0.01-0.08 | 0.01-0.08 | 0.01-0.08 | 0.01-0.08 |
Max .Extrusion(Kg/h) | 35 | 50 | 65 | 80 |
L/D | 28:1 | 28:1 | 28:1 | 28:1 |
Power of main motor (kw) | 11 | 15 | 18.5 | 22 |
Power of Traction main motor (kw) | 0.75 | 1.1 | 1.5 | 1.5 |
Heating Power(kw) | 11 | 13 | 19 | 21 |
Outline diameter(L x W x H) (mm) | 5000 x 1600 x 3800 | 5600 x 2200 x 4700 | 6500 x 2300 x 5150 | 6500 x 2500 x 5150 |
Weight(T) | 1.8T | 2.2T | 2.6T | 2.8T
|
